SE-14

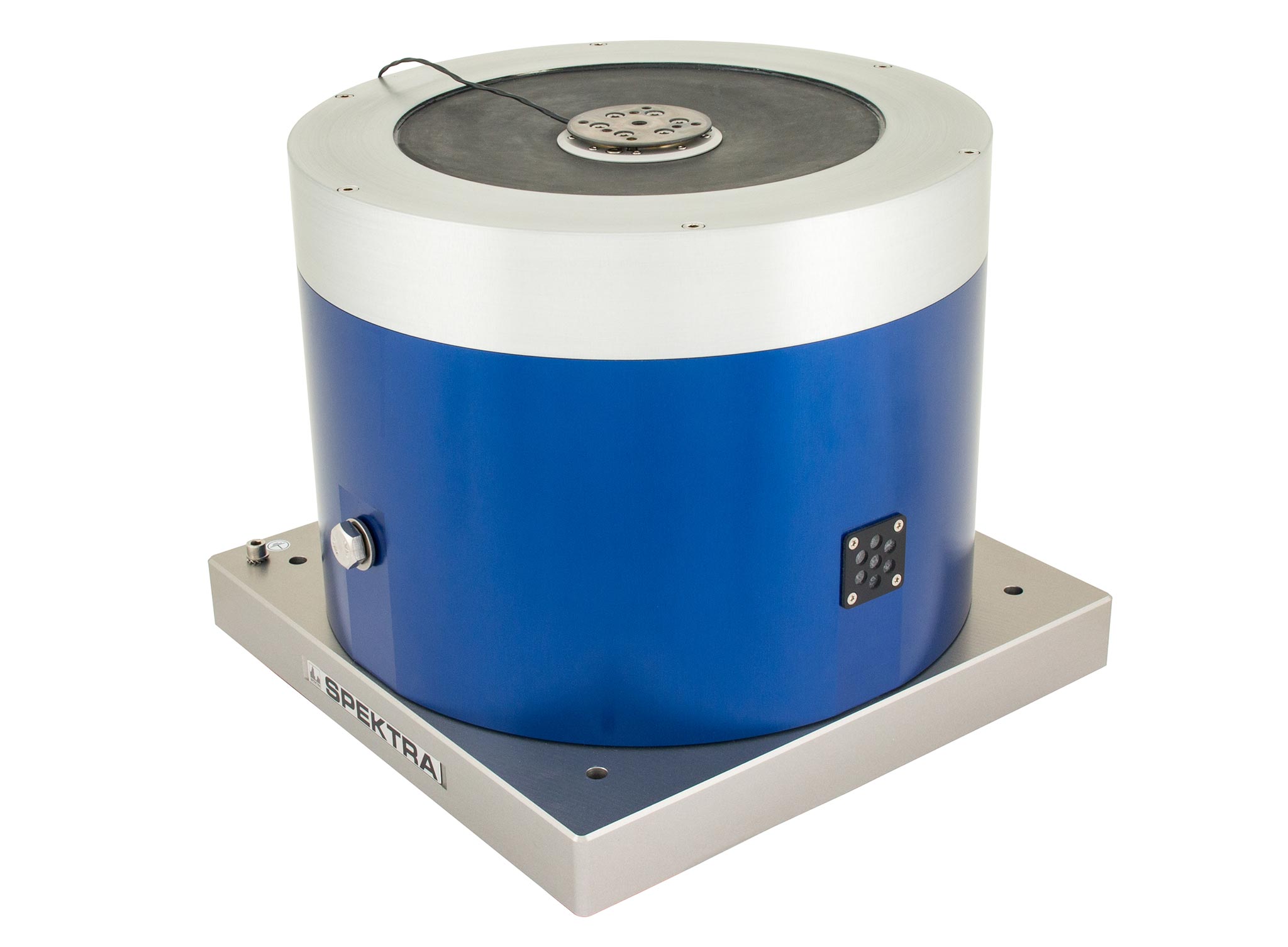

Vibration exciter

Spring-guided vibration exciter - suitable for daily use in the calibration laboratory as well as for vibration tests in a wide frequency range of 0 Hz…8 kHz.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

SE-14

Key Features

Applications

 Applications
  • Vibration testing in research and development
  • Calibration of acceleration and velocity sensors (e.g. sensors for machine diagnostics)
  • Modal testing / Excitation of structures
  • Quality assurance in sensor manufacturing
  • Educational demonstrations

Features 1

 Features
  • Wide frequency range 0 Hz...7.5 kHz
  • High acceleration amplitudes up to 500 m/s²
  • Steel-aluminum-ceramics compound armature
  • Rugged steel table surface
  • High first axial resonance at > 8 kHz


Kennzahlen 2 (Kopie 2)


  • Low temperature increase of exciter table
  • Stray magnetic field at table surface < 1.2 mT
  • Max. payload (vertical / horizontal): 2 kg / 1 kg

Kennzahlen 3 (Kopie 1)


  • Displacement 20 mm (Peak - Peak)
  • Internal reference standard (optional)
  • Current and voltage monitor output
  • Amplifier state outputs for integration in testing systems

Product details

  • Max. Acceleration: 500 m/s²
  • Max. Force: 265 N
  • Max. Displacement (pk-pk): 20 mm
  • Frequency Range: 0 Hz…8 kHz

For further details, please refer to the technical data sheet. Subject to change without notice.

Performance

The possible performance charts for vibration measurements with different payloads are exemplified in the following diagram. Those performance charts are based on operation of the SE-14 with its recommended power amplifier APS 145.

Acceleration with various payloads

PA 800 DM

PA 800 DM

810 VA power amplifier

For all vibration exciters that require a 810 VA power amplifier (load impedance 2.5 Ω). The PA 800 DM offers a max. frequency range DC…25 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
