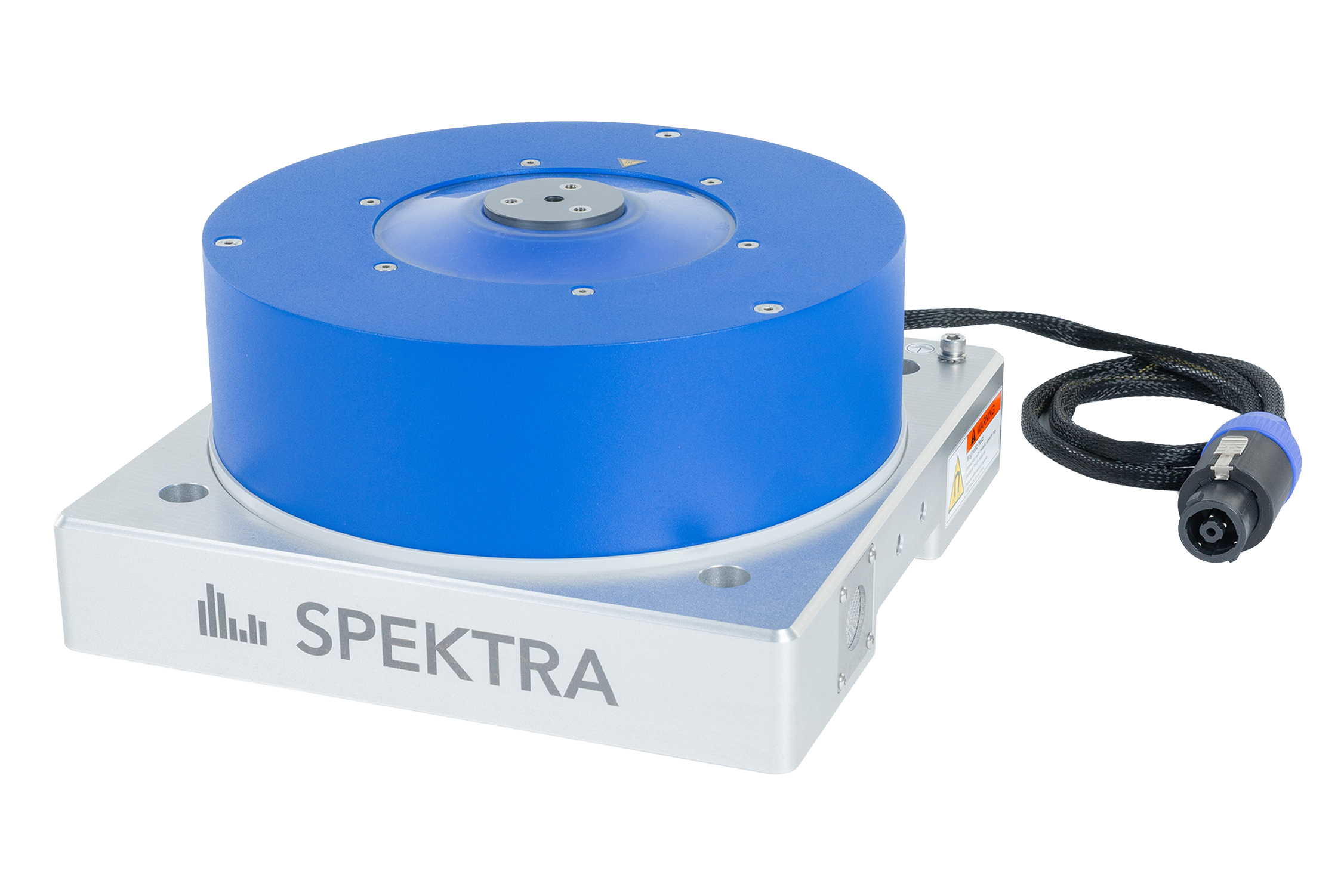

SE-29T
This efficient exciter offers a very wide frequency range and low transverse motion.
The SE-29T is perfectly suited for use in climate chambers. Thanks to the wide temperature range and the high payload, it is optimally suited for larger sensors or geophones. Besides high quality components, the focus lays on a versatile field of application and easy implementation into existing test environments.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
Technical data
| SE-29T | |
| Force rating, max. (sine-peak) | 84 N 1) |
| Frequency range | DC … 50 kHz 3 Hz … 50 kHz with optional reference accelerometer |
| Acceleration, max. (sine-peak) | 390 m/s² 1) |
| Displacement, max. (peak-peak) | 10 mm |
| Transverse motion | typical < 5 % 2) |
| Payload, max. | 2 kg (vertical) / 1 kg (horizontal) |
| Temperature range (in operation) | -40 °C … +120 °C |
| Stray magnetic field on table | < 3 mT |
| Armature weight | 215 g |
| Weight (total) | 17 kg |
| Dimensions (H × W × L) | 138 mm × 270 mm × 270 mm |
All specifications are at room temperature unless otherwise specified. Technical data achieved with power amplifier PA 500 DM.
1) interval mode of operation
2) single peaks up to 15 % / better than ISO 16063-11/21
The basic version of the SE-29 has a limited temperature range but features higher force and acceleration.
DUT mounting
- 50 mm (1.97 in) coupling surface diameter
- polished, highly sratch-resistant ceramic surface
- ¼-28 UNF thread hole
- 3 x10-32 UNF thread holes
- other thread patterns on request
Options and accessories
- suitable power amplifiers (PA 180 DM, PA 500 DM)
- internal reference accelerometer including BNC cable
- set for active cooling
- readout set for the internal temperature sensor
- trunnion base for operation of the vibration exciter at a wide tilt angle range
- adapter sets
For further details, please refer to the technical data sheet. Subject to change without notice.
Performance
The diagrams below show the performance of the SE-29 and SE-29T for operation alternating between 10 minutes at full load and 10 minute breaks (blue graph). Performance may vary for different cycles. The yellow graph shows acceleration values that can be safely used during continuous operation.
At 2 kHz, you can see a boost in the maximum acceleration. This is due to a new bearing design which minimizes transverse motion over the whole frequency range and reduces the moving mass above 2 kHz, thereby allowing for increased acceleration at equal force.

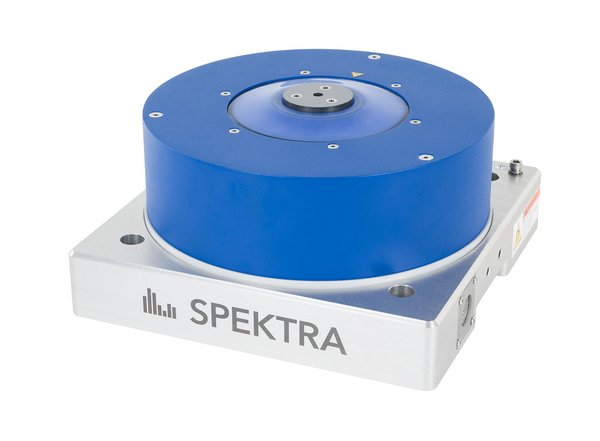

CS Q-LEAP™ SINE with SE-29
The CS Q-LEAP™ system is used for vibration calibration of a wide range of sensors including vibration sensors and measurement systems from 3 Hz...20 kHz. It is based on the HERO™ vibration controller and the SE-29 high-frequency vibration exciter.
