Sensor testing made easy: Invest in versatility and durability!
Continuously higher amplitudes, extreme conditions, very high sensitivity. The demands on your test equipment for testing, characterizing and calibrating are increasing in parallel with the constantly evolving sensors. You must also be able to cover a wide range of different types - from the smallest assemblies to very heavy vibration sensors. If your investment is also durable and easy to integrate, you have made the right decision.
From daily testing tasks to specialized applications
What makes the SE-2X series of vibration exciters a multi-talent for numerous applications?
- high performance with very low transverse motion
- each shaker type with a different focus
- continuous operation even with high payloads
- high-quality, durable materials
- available as a "T-variant" for extreme temperature conditions
High performance even under high payloads
The SE-2X series enables new applications for testing and calibrating larger sensors, geophones or for vibration testing of smaller devices. The maximum payload is up to 2 kg in vertical excitation.

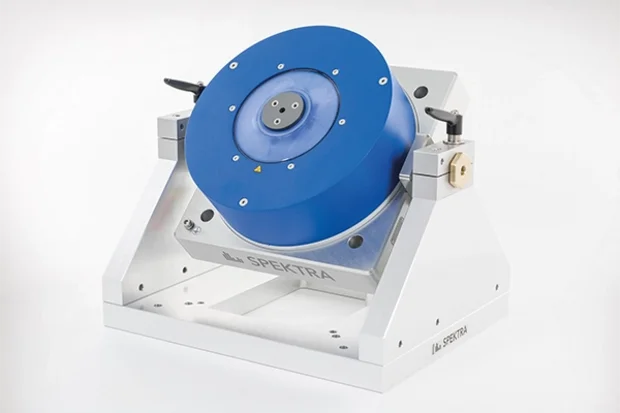

With the optionally available trunnion base, test specimens weighing up to 1 kg can be excited in the horizontal direction.
Low transverse vibrations

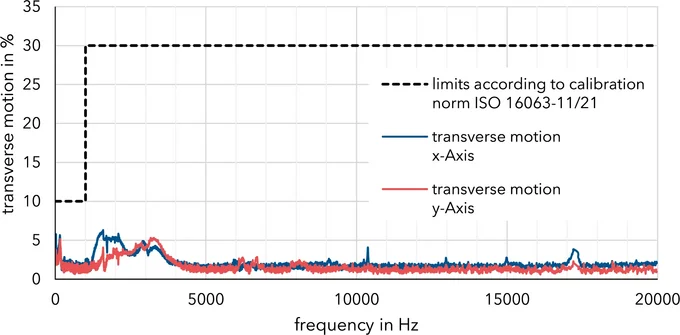

As can be seen in the diagram, the values of the transverse motion are typically < 5 % to the main axis and thus in wide frequency ranges are far below the required limit values of ISO 16063-11/21. This predestines these vibration exciters for the characterization or calibration of sensors, for example.
Complies with the ISO 16063-11/21 standards for calibrating vibration sensors

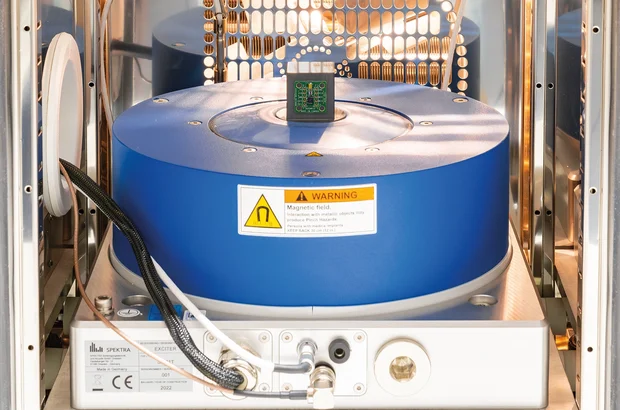

Testing directly in a climate chamber
All SE-2X exciters offer a standard temperature range of -20 °C ...+80 °C (-4 °F...+176 °F).
For tests under special climatic conditions, they are available as "T model" for use in a climate or temperature chamber in the range -40 °C...+120 °C (-40 °F...+248 °F). Selected materials and a specific design are used for this requirement.
Continuous operation at high amplitudes
Forced cooling of the coil and armature by an optional fan means that the SE-2X exciters are also suitable for continuous use.
At the same time, live temperature monitoring can be carried out using a built-in sensor. Both sets are useful additions to counteract overheating. They are available as an option for all shakers in this series.
Versatile coupling of your test specimens
Various methods are available for mounting the DUT on the exciter. The SE-20 and SE-29 feature screw threads that allow the sensors to be attached directly or via various adapters.

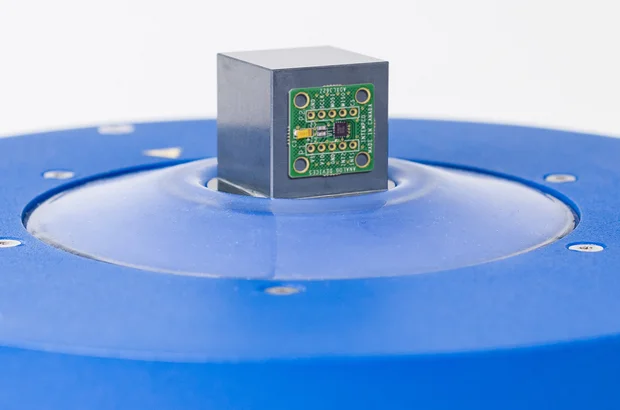

A special feature is the cube shape of the SE-21, which allows the test specimen to be attached to any side and thus the excitation of different axes. The solid ceramic fitting eliminates any interference that could be caused by a larger adapter. Simultaneous testing of several sensors is also possible.
Fast workflow integration
The shakers have been developed without a compressed air supply for easy, trouble-free implementation in any laboratory environment. This also eliminates the need for zero position control, which reduces working times. The user-friendly, simple operation means that the SE-2X vibration exciters can be quickly integrated into existing workflows.
When you opt for an SE-2X exciter, you are also opting for the know-how of our experts. We will be happy to advise you so that you can get started quickly and easily!
Options and accessories
Efficient testing, characterization and calibration of sensors requires smooth test procedures and reliable equipment. A specially coordinated technical setup is essential so that you can determine exact values, minimize interferences and at the same time work in a cost- and time-conscious manner.
We have developed useful options and supplementary accessories for you based on the experience gained from our daily testing and calibration challenges. With these extensions, you are equipped for all applications and can trust your results.
- internal IEPE reference accelerometers for calibration/measurement and test applications
- matching PA 500 DM power amplifier
- trunnion base for any angle between 0° and 90°
- adapter sets for mounting a wide variety of sensors
- adapter for proximity sensors
- accessory set for active shaker cooling
- readout set for internal temperature sensor
- various accessories such as cables, connectors, adapters and tools (price list)
