Discover how smart, easy and flexible the on-site test and calibration of accelerometers, proximity probes and velocity sensors can be.
An extensive, portable and lightweight calibration system, traceable to NIST and PTB, delivered in a rugged case – and available at low investment costs!
Various operating modes, only 9 kg, up to 10 hours battery driven operation and powerful vibration exciters are just a few of numerous reasons why the CV-10 is the right choice for many industries.
Technical specifications
- Frequency range: 5 Hz...10 kHz
- Max. displacement (peak-to-peak): 5 mm
- Max. amplitude: 200 m/s²
- Standard signal conditioner:
Direct voltage input, IEPE, charge, 4 mA…20 mA - Max. DUT mass: 900 g (1.98 lb)
Features
- Weighs only 9 kg
- Up to 10 hours battery operation
- Variable 100 V…240 V
- Powerful vibration exciter
- Traceable to PTB, NIST, etc.
- Network integration with eCal™ CV-10 Manager

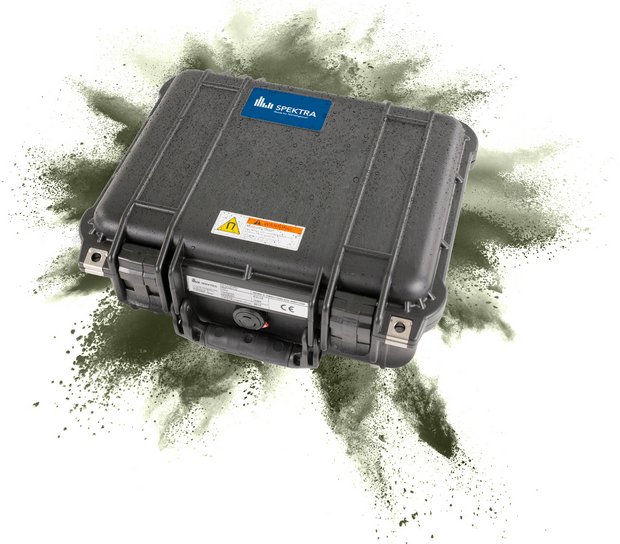

- Shock-resistant case resistant to splashes and dust
Modes of operation
- Manual mode
- Profile mode (optional)
- Sweep mode (optional)
- Measurement mode (optional)
Application range of portable calibration systems
Mobile calibration systems are essential for checking measurement equipment directly on site, for example in hard-to-reach facilities, during sensitive processes or to avoid downtime. They allow for the efficient verification of accuracy and reliability without the need for disassembly or transportation.
Industrial monitoring
Vibration sensors are used to monitor turbines, pumps and generators. They can be tested directly on site with minimal downtime using portable calibration systems.
Crash tests
Crash tests that involve testing the sensors on-site under real-world conditions ensure accurate results and help to verify their functionality in extreme situations.
Research & Development
These mobile systems are cost-effective, compact and user-friendly, making them ideal for research and development.
Aviation
In ground vibration tests, aircraft structures are deliberately stimulated in order to precisely determine their vibration behavior and compare it with simulation models.
A wide range of applications in a compact design
The CV-10 was specifically designed to simplify your on-site calibration of accelerometers, proximity probes, velocity sensors and many more.
You can test and calibrate vibration meters as well as test beds anywhere, anytime so you can ensure business continuity and reduce downtimes. Moreover, your test results are traceable to national institutes such as the National Institute of Standards and Technology (NIST) or the german PTB.

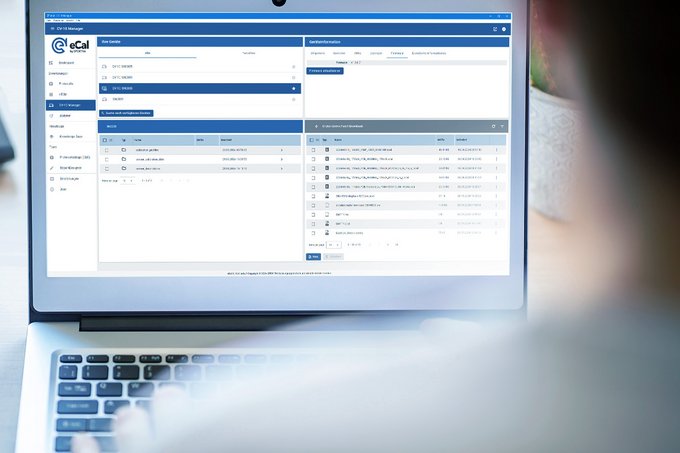

Streamlined workflow with the eCal™ CV-10 Manager
Optimize your processes from test preparation to on-site measurement and data evaluation. Manage your devices from a central location via your network and simply keep track of battery status, software versions and licenses.
Easily exchange data between the local memory of the CV-10 and your network. With the integrated editors, including ready-made templates, you can quickly create individual test and sensor descriptions.
Clever and future-proof features

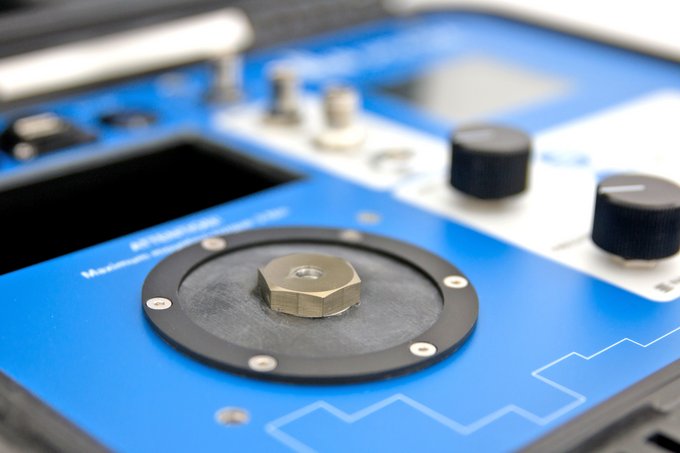

In addition to a powerful vibration exciter and many integrated signal conditioners, the mobile calibrator features an extension port for new exciting options. The already available signal conditioner box for piezo-resistive accelerometers will be followed by a programmable power supply for other sensor types and more options.

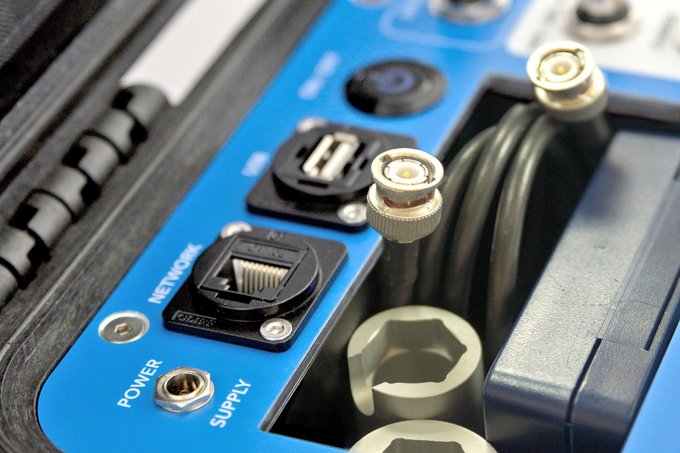

Data can be exchanged either with a USB stick or simply via Ethernet using the eCal™ CV-10 Manager, which significantly increases efficiency.
Years of experience in calibration loaded in a portable case
Because SPEKTRA is a specialist in the field of sensor calibration, decades of expertise pour into our product development. Individual customer requirements and knowledge gained from practice and experience in our laboratory help us add innovative features on to our products.
For the CV-10, this include a comprehensive range of integrated signal conditioners, simple data exchange and processing, and the choice between a manual mode with presets and an automated mode.
e-Learning modules for CV-10
Our step-by-step tutorials and detailed guides will equip you with the knowledge and skills needed to unlock the full potential of your CV-10. Discover insider tips and tricks, learn how to troubleshoot common issues, and gain confidence in operating the system with ease. Whether you're a seasoned professional or a novice, there's always something new to learn and explore in the realm of CV-10 calibration. All the content provided is completely free of charge and accessible anytime, anywhere.

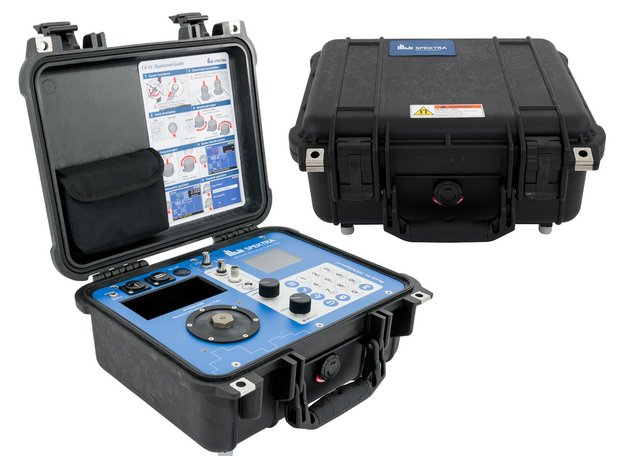

Mobile calibration system - Lite
- CV-10 mobile calibration system / calibrator box
- incl. operation mode: Manual Calibration
- 1/4-28 to 1/4-28 mounting stud
- 10-32 to 1/4-28 mounting stud
- adhesive mounting base
- power supply with plug adapters
- mounting wrench
- USB flash drive with report generation worksheet
- calibration certificate traceable to PTB (DAkkS)
- fully operational in a rugged case

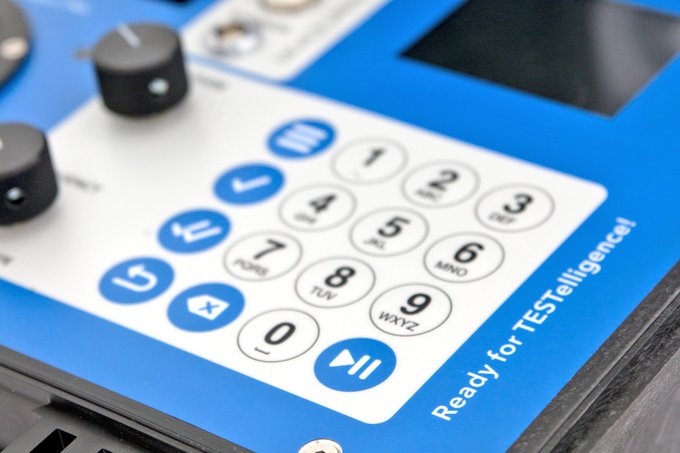

- easy to understand and user-friendly interface

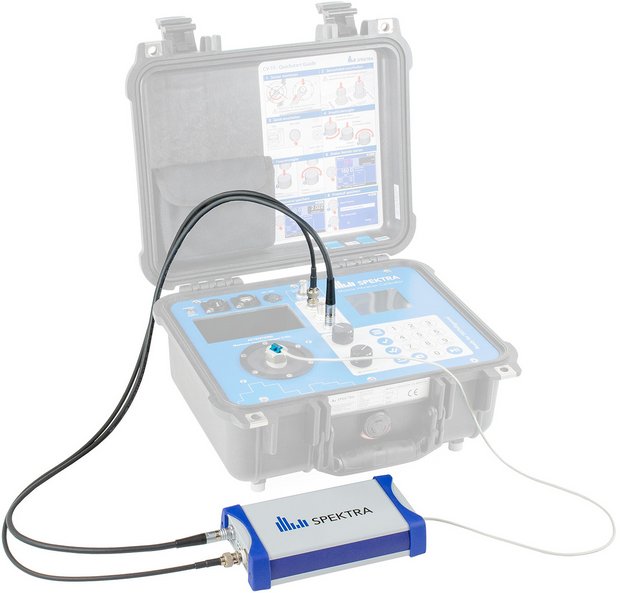

Extension module for PR sensors

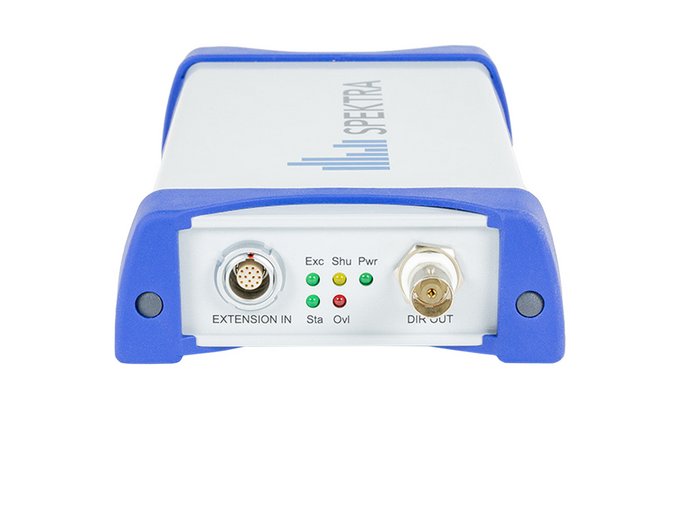

For mobile testing and calibration of piezoresistive accelerometers. The external CV-10 PR module provides the electrical excitation voltage for the sensor and amplifies the output signal.
Item No. 1101978

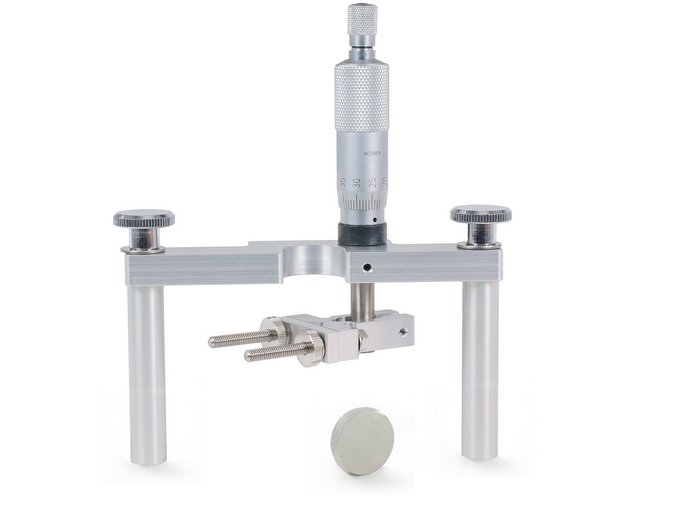

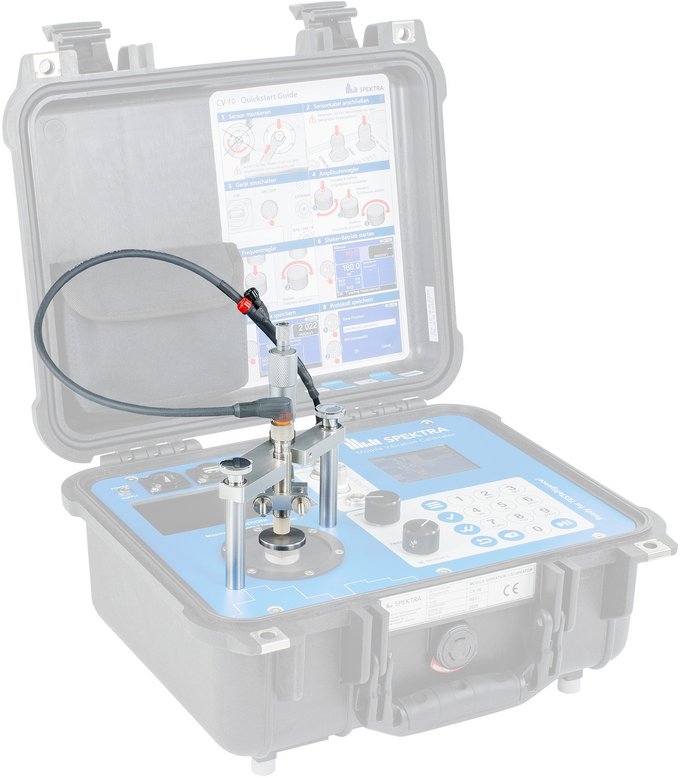

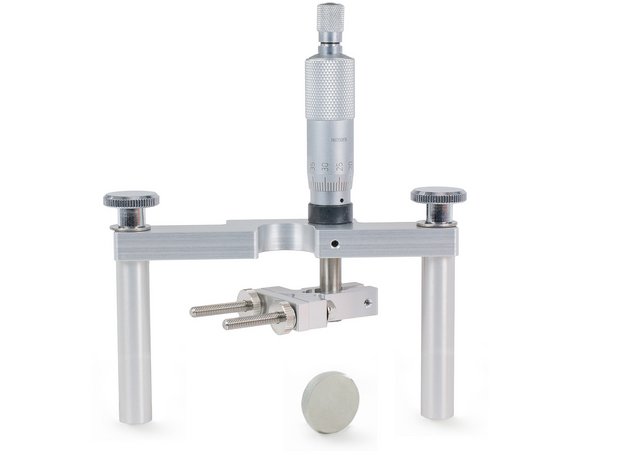

Mounting device for proximity probes
This set is for calibration tasks with proximity sensors. A sensor clamp can be attached to the CV-10. With an adjusting screw, you can exactly fine-tune the distance between the DUT and the measurement target.
Item No. 1104500
Software for efficient workflow

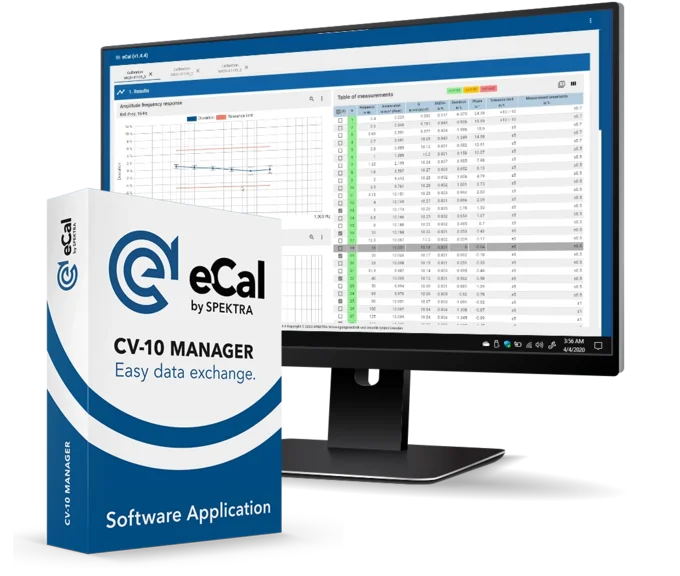

eCal™ module CV-10 Manager
The eCal™ software is simultaneously a universal calibration protocol viewer and a data transformation tool. With the CV-10 module, you can expand the software to include simple device management and remote access in your local network. Use the editors for test and sensor descriptions and transfer your data, e.g. your test results, easily via Ethernet. A noticeable increase in your efficiency in everyday calibration work.
Item No. 1102747
You might also be interested in
CV-05 vibration calibrator
As a hand-held vibration calibrator, the CV-05 is the perfect instrument for in-situ testing of human vibration measurement devices in accordance with ISO 8041.

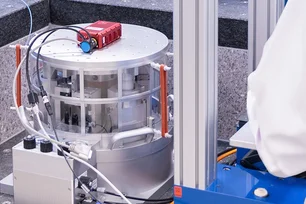

Calibration exciters
