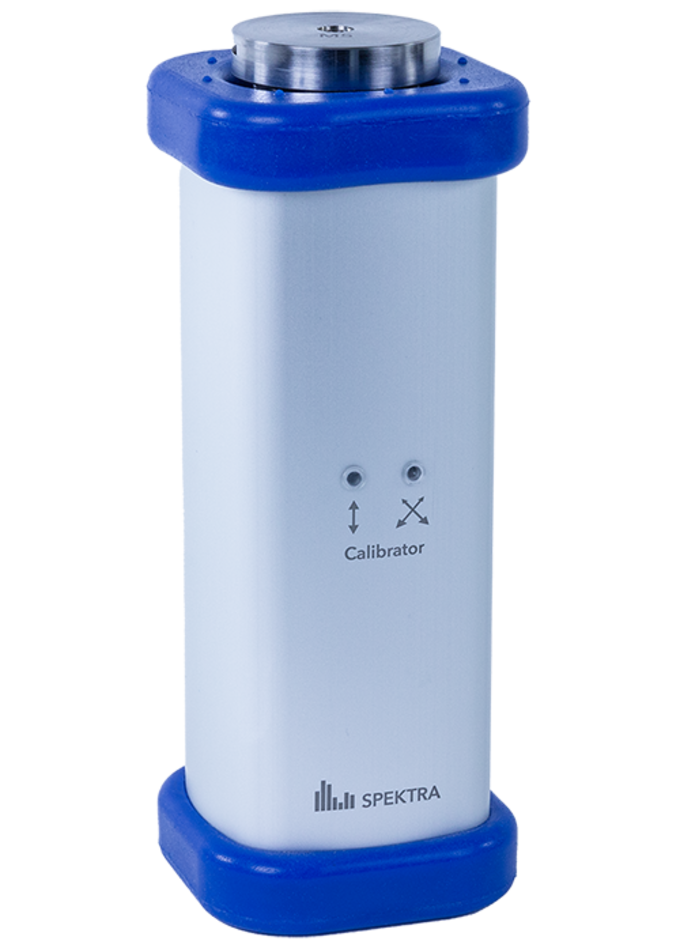

Thanks to its technical details and compact design, the CV-05 is irreplaceable for in-situ testing of human vibration measuring devices in accordance with ISO 8041. As a hand-held vibration calibrator, it is the perfect instrument for testing measuring chains on industrial plants, for example.
Features such as the large sensor coupling surface, the internal triaxial reference sensor and the robust housing characterise this hand-held calibrator, as do the user-friendly handling and the visual warning if the transverse vibrations are too high. Each CV-05 is calibrated at SPEKTRA prior to shipment and receives an internationally recognized DAkkS calibration certificate.
TESTelligence on the go!
For in-situ testing of your sensors
‘Clever testing’ – realised in a portable, high-quality measuring device for a wide range of applications. Users can select amplitudes between 1 m/s² and 10 m/s² depending on the selected frequency (80 Hz / 160 Hz). Independent of an on-site power source, the power supply is ensured by an integrated rechargeable battery. Thanks to its compact dimensions and low weight, it can be used for up to 12 hours on the move. Simple operation via three buttons and the OLED display as well as charging via a USB cable emphasize the established user-friendliness of SPEKTRA products.
Building connections
Functional testing of various measuring devices
The balanced ratio between the housing, which serves as a reaction mass, and the mass of the test specimen allows sensors weighing up to 300 g to be tested reliably. An M5 thread allows sensors to be mounted quickly and easily on the coupling surface. The standard adapters that are included in delivery can be used for a wide range of different test specimens and for efficient testing. We also offer a number of other threaded and adhesive adapters as an option.
Vibration transducers/meters
Check the entire measuring chain or individual transducers before use.
Hand-arm vibration meter
in accordance with ISO 8041
Regular inspections to ensure compliance with health and safety standards.

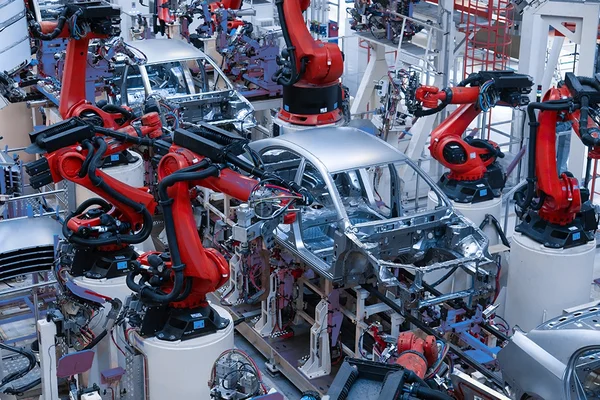

Industrial maintenance
and machine diagnostics
Quick inspection of vibration measuring chains in manufacturing or transportation.
Field service and
remote calibration
The portable design allows for on-site or off-site calibrations.
Facts & Figures
- Frequency: 79.58 Hz / 159.15 Hz
- Acceleration (m/s² RMS): 1; 2; 3; 4; 5; 6; 7; 8; 9; 10
- Displacement (μm RMS):
4; 8; 12; 16; 20; 24; 28; 32; 36; 40 (@ 79.58 Hz)
1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (@ 159.2 Hz) - Max. DUT mass: 300 g (0.66 lbs) / 200 g (0.44 lbs) – depending on frequency
- Temperature range: -10 °C...+50 °C
- Dimensions (H×W×L): 168 mm × 65 mm × 65 mm
- Weight: 1.25 kg 2.8 lbs)
- Sensor mounting: M5 × 6 mm threaded hole
- Power supply: NiMH rechargeable battery; 7.2 V / 2.2 Ah (battery runtime up to 12 h)

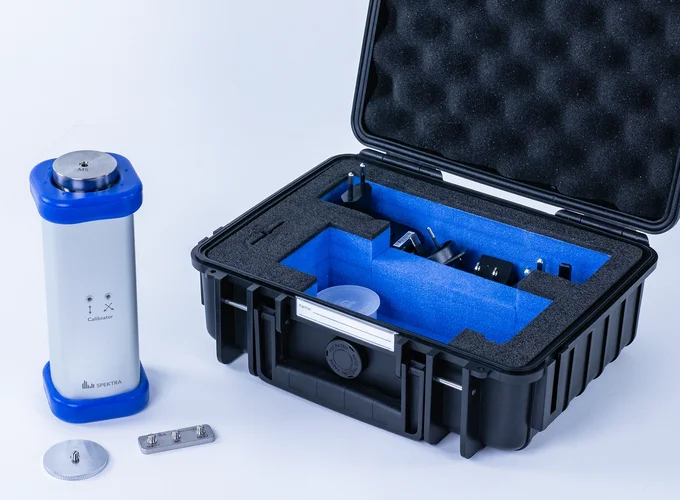

Everything in one place
The vibration calibrator and accessories are supplied in a robust case that provides the necessary protection during transport. Thus, you always have everything you need for your everyday testing in one place:
- CV-05 hand-held calibrator
- Mini USB cable and mains adapter for charging (5 V / 1 A)
- Threaded stud ¼"-28
- M5 threaded stud
- Threaded stud 10-32
- Adhesive adapter
Can you rely on the measurements of your installed vibration sensors?
The CV-05 has the answer!
The hand-held CV-05 vibration calibrator solves the problem of uncertain and inaccurate on-site measurements. It enables precise, ISO 8041-compliant testing of vibration sensors, offers intuitive operation and comes with a DAkkS calibration certificate. Robust and compact in a protective case – for reliable results and safe compliance with standards everywhere.
Avoid measurement errors!
You might also be interested in

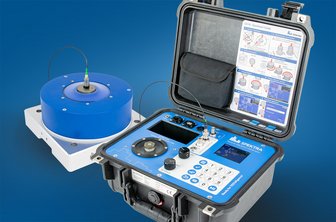

CV-10 Mobile calibration system
