The broad field of seismology and geoscience requires a range of high-tech equipment that makes it possible to detect even the smallest earth movements in the first place. Permanent seismic monitoring makes it possible to localize potential hazards and establish effective long-term protection against the effects.
We offer a broad, specialized portfolio of products and services worldwide for this topic with its utmost social importance. Our service range includes support in the development of new seismometers, certified calibration and structural excitation for seismological research and equipping entire laboratories.

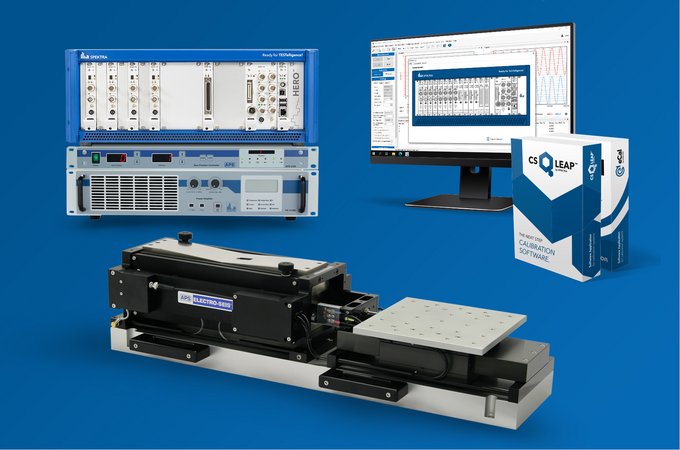

CS Q-LEAP™ Calibration Systems
Modular system for a wide range of applications
Defined excitation, high-precision data recording and efficient evaluation: With the CS Q-LEAP™ systems from SPEKTRA, you have a turn-key solution at your disposal. Individually tailored to your needs, for modular use and future-proof.
We support you in choosing the appropriate hardware components, which are developed and manufactured in-house. With our powerful and future-proof CS Q-LEAP™ software, you are equipped for calibration tasks at the highest level. To ensure that you always get the best out of our products, we also offer the right service package and personal, individual help from our support team.
CS Q-LEAP™ with:

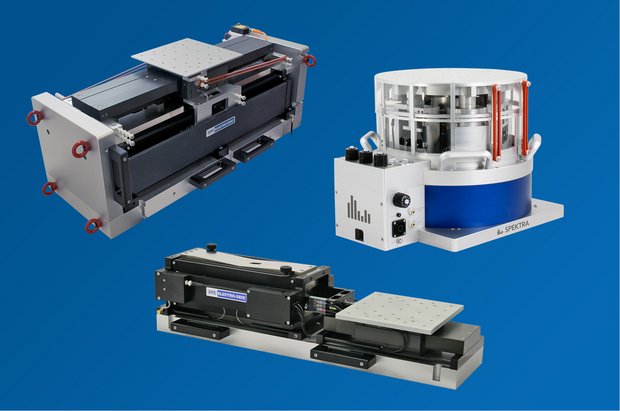

Vibration exciters
Specialized for seismometers and geophones
The air-bearing vibration exciters from SPEKTRA and APS Dynamics were specially developed for the calibration of seismometers and geophones. They are characterized by large mounting areas and high maximum payload. Due to the combination of their excellent performance values and simultaneous mechanical load capacity, they can be found in numerous institutes and research facilities. The APS ELECTRO-SEIS® brand is known worldwide for its efficient and reliable long-stroke vibration exciters.
SE-13 - Air-bearing electro-dynamic vibration exciter

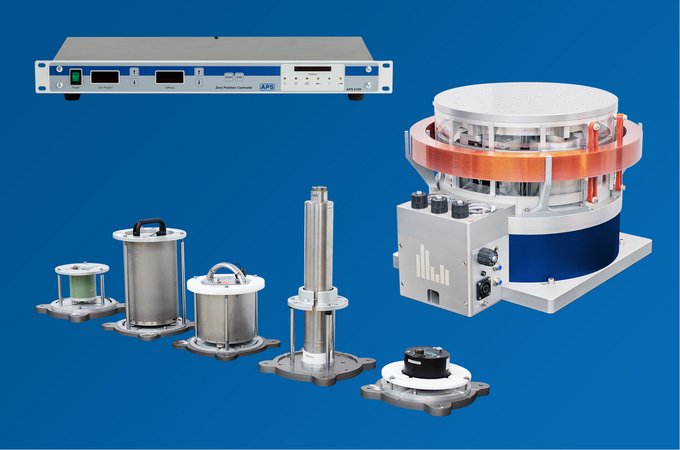

Accessories and Components
Details matter
Scientific work with our products frequently requires customized solutions tailored to specific challenges. Thanks to our experienced development team, we can offer optional accessories designed specifically to meet the demands of seismic work.
- Adapter plates for seismometers
- Stray magnetic field compensation for sensitive sensors
- Special seismic sensor supply for your seismometers
- Electronic Zero Position Controller (APS 0109)
- Special cables, adapters, accessories and tools

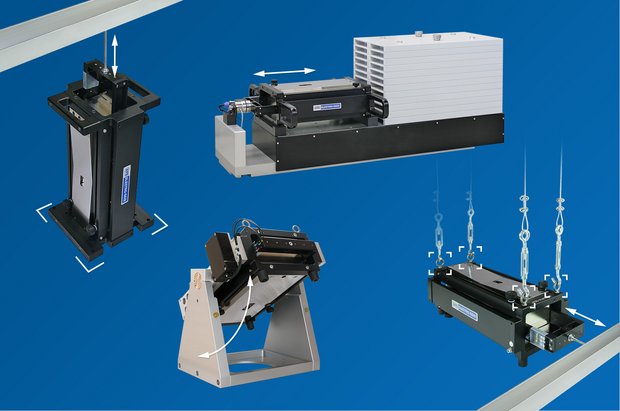

Modal exciters
Excitation of larger structures
To investigate possible effects of seismic movements on structures or industrial plants, our APS modal exciters can be used to excite large structures in a targeted manner. Optional accessories allow the exciters to be applied in different working modes such as free body mode or fixed at angles between 0° and 90°. Optional reaction masses can be used to additionally increase performance.
Services
Characterization and calibration
The performance of our DAkkS-accredited calibration laboratory D-K-15183-01-00 is among the best worldwide. You receive reliable, traceable calibration certificates with the lowest possible measurement uncertainties. Factory calibration and verification for your required international or local standards is also possible on request.
- Seismometers and seismic measurement chains in the frequency range 0.1 Hz…400 Hz
- Geophones and vibration meters 0.5 Hz…315 Hz
Full Service
Complete laboratory setup
SPEKTRA supports you with the set-up and equipment of your complete laboratory, also covering special needs such as the casting of concrete blocks, the setting of granite slabs or the connection to a compressed air unit. Our international network helps us find local partners and equip modern laboratories worldwide. Trust our experience and seek our experts' advise.
