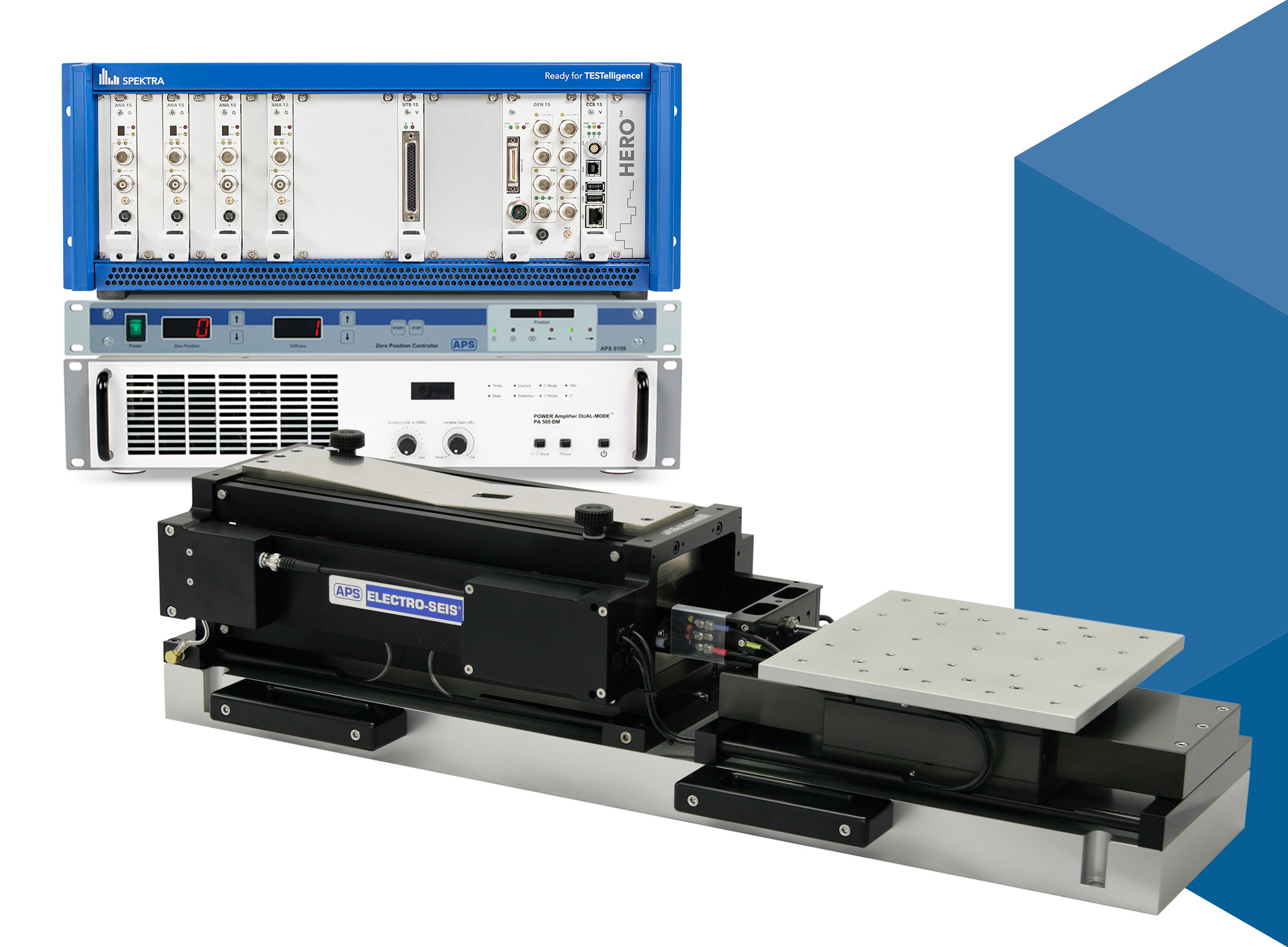

CS Q-LEAP™ SINE with APS 129
This system allows calibration of heavy seismic sensors (seismometers) as well as geophones up to 200 Hz.
The CS Q-LEAP™ system is based on the HERO™ vibration controller and the APS 129 air bearing vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details

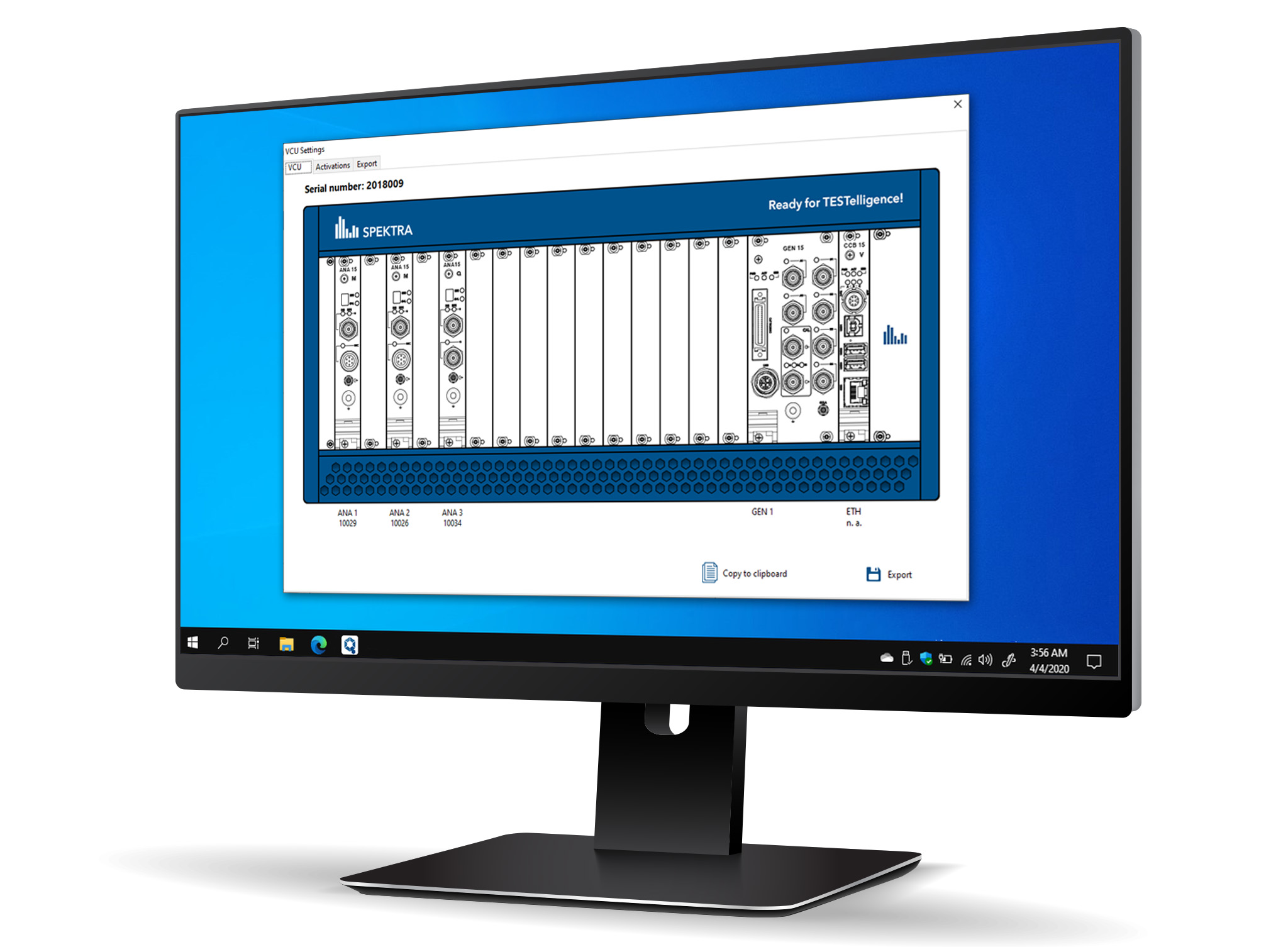

CS Q-LEAP™ software
- sine calibration
- sine sweep
- vibration measurement
- vibration generation
- more on demand
Standards
- ISO 16063 - 21: Calibration of vibration transducers by comparison to a reference transducer
- ISO 17025: General requirements for the competence of testing and calibration laboratories
- DIN 45669: Sensors for measurement of vibration immission
For further details, please refer to the technical data sheet. Subject to change without notice.
SPEKTRA CPC
The SPEKTRA CPC automatically controls the zero position of a vibration exciter irrespective of its load.
It is essential to employ a CPC-type controller especially when working with an air-bearing vibration shaker without any integrated automatic load compensation.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
HERO™
HERO™ is the heart of the CS Q-LEAP™ calibration systems. It offers a variety of output options, interfaces for data import and export, and enables powerful digital as well as analog signal processing. The HERO™ can be flexibly configured with many different modules.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

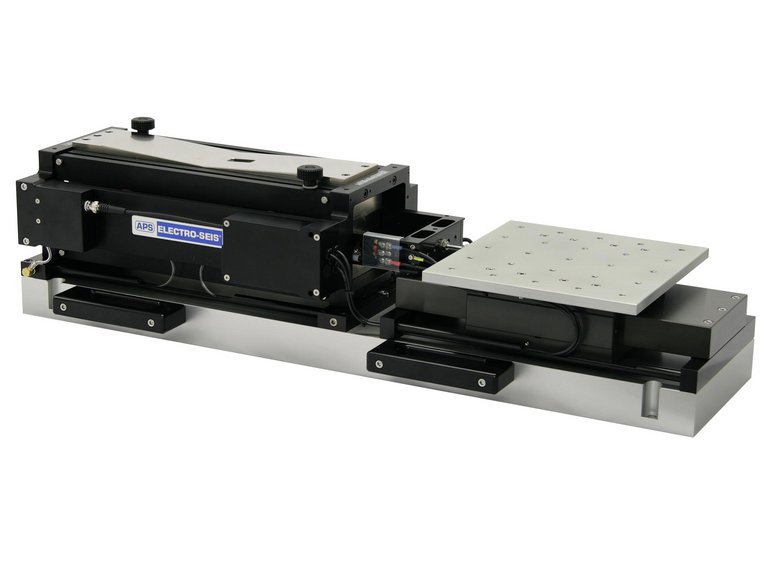

APS 129
ELECTRO-SEIS® vibration exciter with mounting table for high payloads up to 23 kg and frequencies up to 200 Hz.
Especially developed for the calibration and testing of big and heavy low frequency sensors as well as for sensor characterization (e.g. geophones or heavy seismic sensors).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

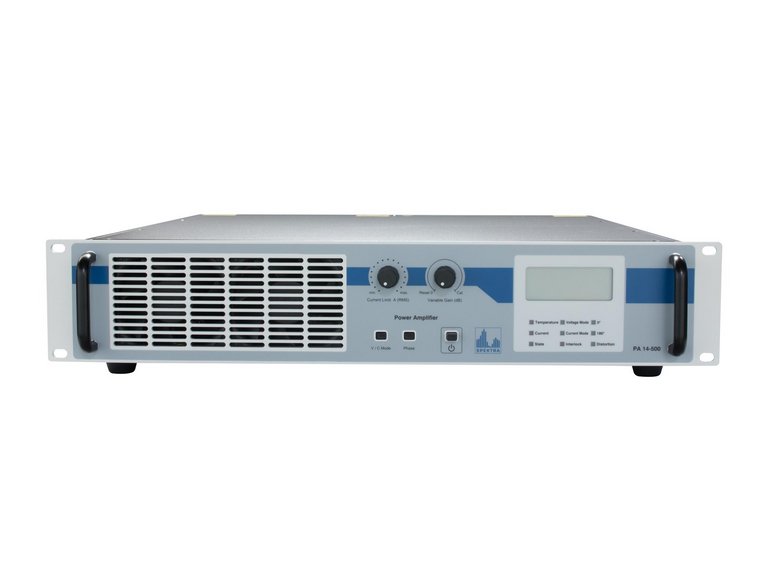

PA 500 DM
The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL01 Basic
With our Smart Managed Service Agreement, we offer different service levels and specific add-ons for increased efficiency and flexibility. The packages offer a wide range of benefits, including fast service, smooth processing, personal contact with our experts and price advantages.
The SL01 Basic ensures primary support, can be upgraded to the SL02 Extended and customized with add-ons.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL02 Extended
Our Smart Managed Service Agreements are tailored to provide top-tier assistance. The expert support as a service is designed with efficiency in mind, allowing you to flexibly design service packages and enhance them with add-ons as needed.
The SL02 Extended offers an advanced service such as free software updates, access to the ticket system and a free license to the SPEKTRA eLearning platform.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Similar products
CS Q-LEAP™ SINE with SE-20
The CS Q-LEAP™ system is used for vibration calibration (3 Hz…10 kHz) of a wide range of sensors. It consists of the HERO™ vibration controller and the SE-20 high-frequency vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ SINE with SE-29
The CS Q-LEAP™ system is used for vibration calibration of a wide range of sensors including vibration sensors and measurement systems from 3 Hz...20 kHz. It is based on the HERO™ vibration controller and the SE-29 high-frequency vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ P-SINE with SE-29
This primary system is used for primary vibration calibration of a wide range of sensors including vibration sensors and measurement systems. It is based on the HERO™ vibration controller and the SE-29 high-frequency vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ SINE with SE-09
This system allows calibration of a wide range of vibration transducers and vibration calibrators up to 20 kHz.
consists of HERO™ vibration controller and SE-09 high frequency exciter
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ P-SINE with SE-09
The CS Q-LEAP™ system is based on the HERO™ vibration controller and the SE-09 high-frequency vibration exciter and calibrates sensors in a wide frequency range (5 Hz…20 kHz).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ SINE with SE-13
The CS Q-LEAP™ calibration system is used for seismic simulation and high-accuracy secondary calibration of seismometers and geophones (0.2 Hz…400 Hz).
It comprises the HERO™ vibration controller and its CS Q-LEAP™ software, the SE-13 electrodynamic vibration exciter with air bearings, and a power amplifier from SPEKTRA.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

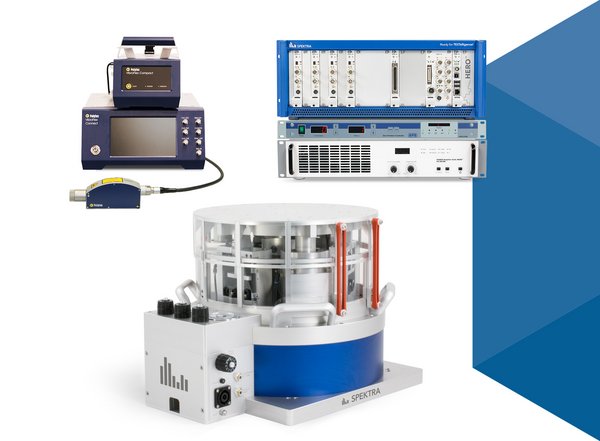

CS Q-LEAP™ P-SINE with SE-13
