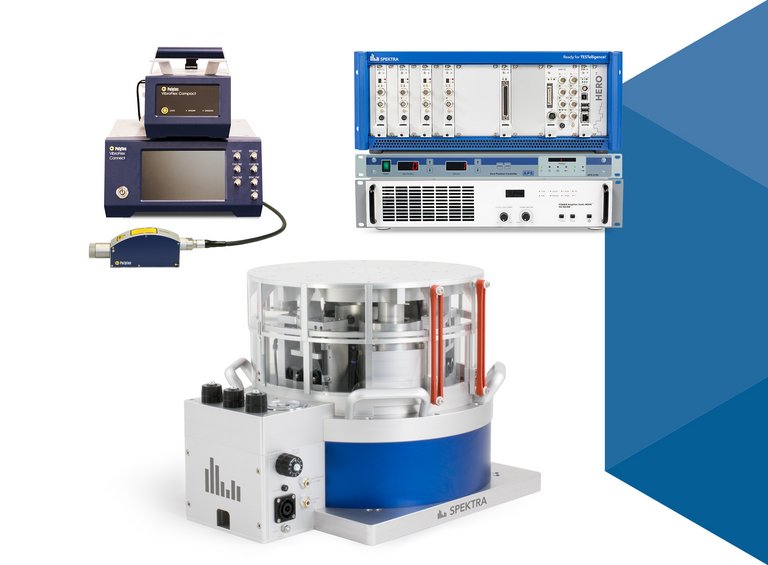

CS Q-LEAP™ P-SINE with SE-13
For primary and secondary calibration at low frequencies, e.g. for seismometers and geophones. This CS Q-LEAP™ system is based on the HERO™ vibration controller, the laser vibrometer and the SE-13 air-bearing electrodynamic vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
CS Q-LEAP™ software
- sine calibration
- sine sweep
- vibration measurement
- vibration generation
- more on demand
Typical DUTs
- heavy seismic sensors (Seismometers)
- seismic simulation for components
- geophones for structure / building vibration measurement
Standards
- ISO 16063-11: primary calibration of vibration transducers by laser interferometry
- ISO 16063 - 21: Calibration of vibration transducers by comparison to a reference transducer
- ISO 17025: General requirements for the competence of testing and calibration laboratories
- DIN 45669: Sensors for measurement of vibration immission
For further details, please refer to the technical data sheet. Subject to change without notice.
Laser vibrometers
Calibration of laser vibrometers
Optical components and software for calibration according to ISO 16063-41
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
HERO™
HERO™ is the heart of the CS Q-LEAP™ calibration systems.
It offers a variety of output options, interfaces for data import and export, and enables powerful digital as well as analog signal processing. The HERO™ can be flexibly configured with many different modules.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-13
Air-bearing electrodynamic Vibration Exciter with mounting table for high payloads up to 50 kg. Especially developed for seismic simulation of components.
Primary and secondary calibration as well as testing of big and heavy low frequency seismic sensors or geophones.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 500 DM
The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL01 Basic
With our Smart Managed Service Agreement, we offer different service levels and specific add-ons for increased efficiency and flexibility. The packages offer a wide range of benefits, including fast service, smooth processing, personal contact with our experts and price advantages.
The SL01 Basic ensures primary support, can be upgraded to the SL02 Extended and customized with add-ons.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL02 Extended
Our Smart Managed Service Agreements are tailored to provide top-tier assistance. The expert support as a service is designed with efficiency in mind, allowing you to flexibly design service packages and enhance them with add-ons as needed.
The SL02 Extended offers an advanced service such as free software updates, access to the ticket system and a free license to the SPEKTRA eLearning platform.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
- Germany - DE102014103299A1 (f)
- Europe (IT, FR, GB, ES) - 3117198 (f)
- China - CN106461499A (f)
- Japan - 6419226 (g)
- Korea - 10-1920860 (g)
- Taiwan - I592643 (g)
- U.S.A. - US10,054,514B2 (g)
- Russian Federation - 2649225 (g)
f = filed / g = granted
You can find further information on our protective rights here.
