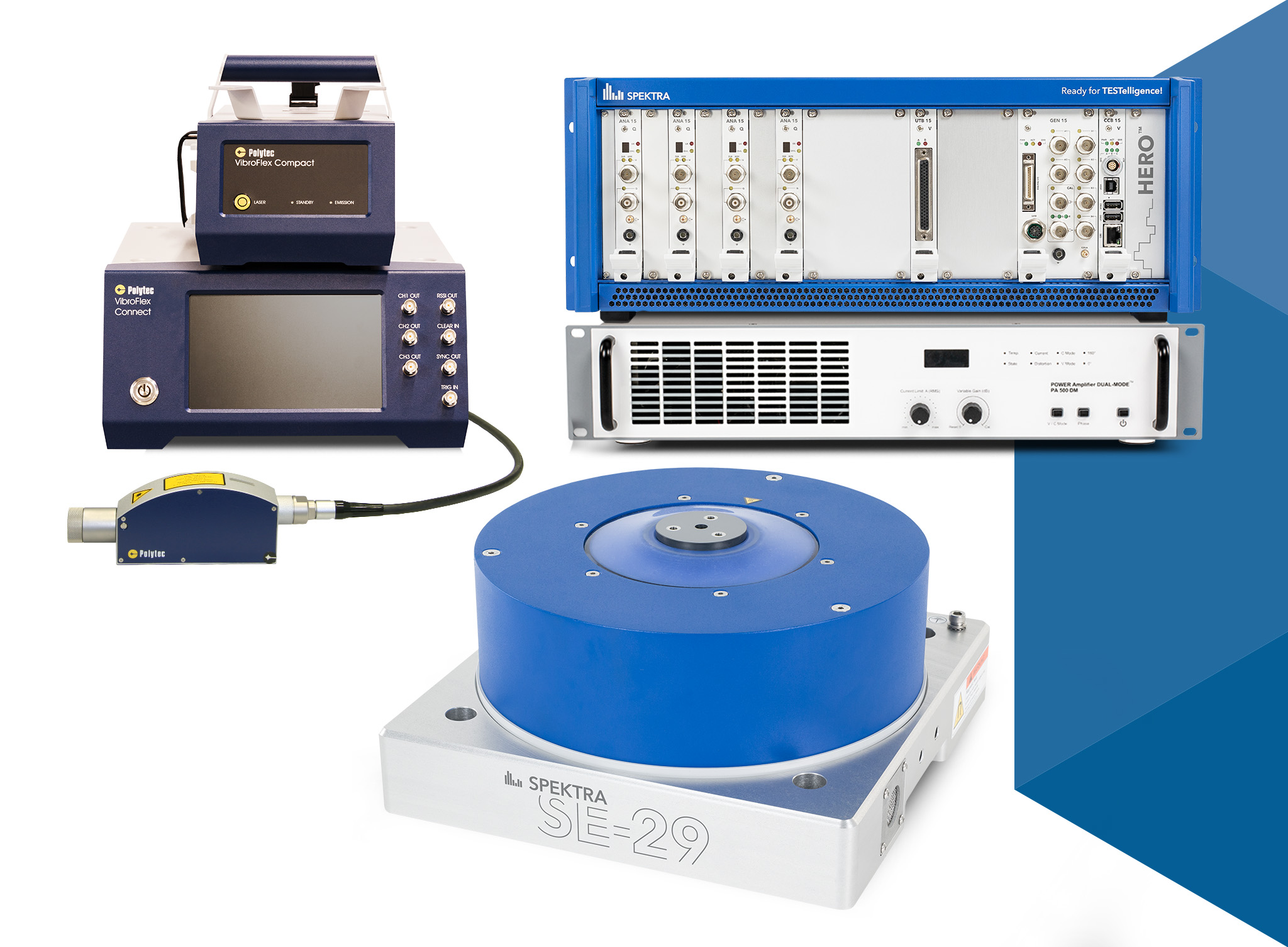

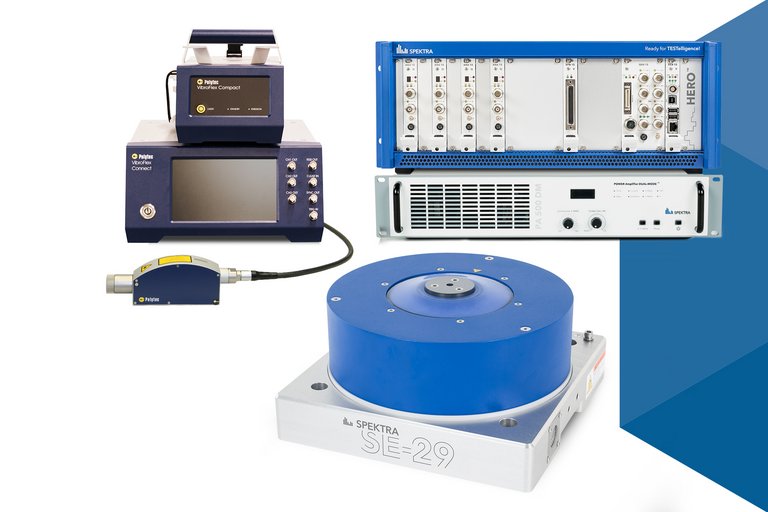

CS Q-LEAP™ P-SINE with SE-29
This primary system is used for primary vibration calibration of a wide range of sensors including vibration sensors and measurement systems. It is based on the HERO™ vibration controller and the SE-29 high-frequency vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
CS Q-LEAP™ Software
- sine calibration
- sine sweep
- vibration measurement
- vibration generation
- more on demand
Typical DUTs
- vibration sensors
· PE transducer
· IEPE transducer
· VC transducer
· PR transducer
· Digital transducer (SPI, I2C, DTI, and other interfaces) - vibration meters
- vibration calibrators
- laser vibrometer
Standards
- ISO 16063 -11: Primary calibration of vibration transdurcers
- ISO 16063 - 21: Calibration of vibration transducers by comparison to a reference transducer
- ISO 16063 - 41: Calibration of laser vibrometers
- ISO 17025: General requirements for the competence of testing and calibration laboratories
For further details, please refer to the technical data sheet. Subject to change without notice.
HERO™
HERO™ is the heart of the CS Q-LEAP™ calibration systems. It offers a variety of output options, interfaces for data import and export, and enables powerful digital as well as analog signal processing. The HERO™ can be flexibly configured with many different modules.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-29
Innovative exciter with efficient electrodynamic drive as part of the SE-2X exciter series.
The SE-29 offers a very wide frequency range and low transverse motion. Thanks to the wide temperature range and the high payload, it is optimally suited for larger sensors or geophones. Besides high quality components, the focus lays on a versatile field of application and easy implementation into existing test environments.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 500 DM
The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

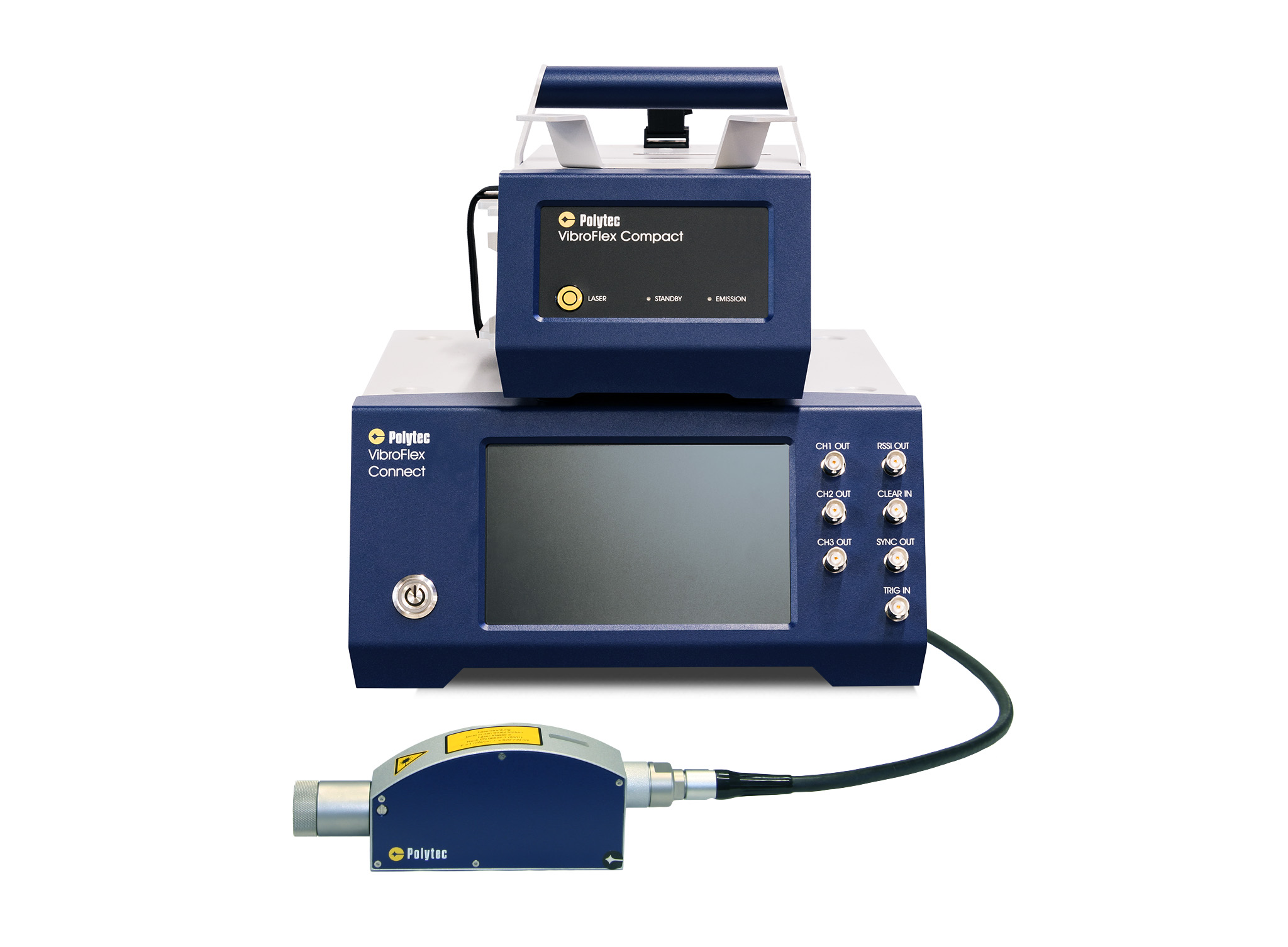

Laser vibrometers
Calibration of laser vibrometers
Optical components and software for calibration according to ISO 16063-41
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL01 Basic
With our Smart Managed Service Agreement, we offer different service levels and specific add-ons for increased efficiency and flexibility. The packages offer a wide range of benefits, including fast service, smooth processing, personal contact with our experts and price advantages.
The SL01 Basic ensures primary support, can be upgraded to the SL02 Extended and customized with add-ons.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL02 Extended
Our Smart Managed Service Agreements are tailored to provide top-tier assistance. The expert support as a service is designed with efficiency in mind, allowing you to flexibly design service packages and enhance them with add-ons as needed.
The SL02 Extended offers an advanced service such as free software updates, access to the ticket system and a free license to the SPEKTRA eLearning platform.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
