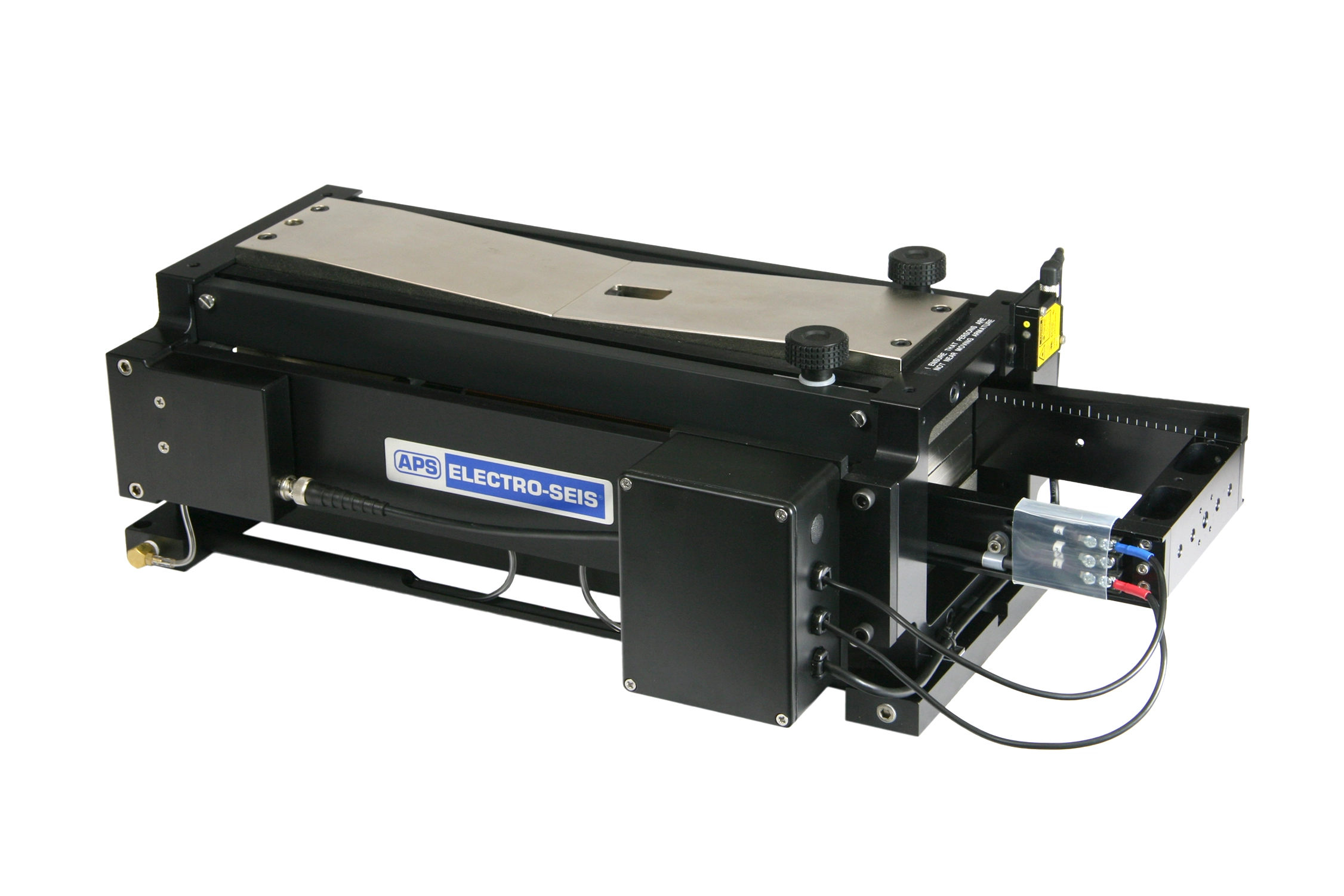

APS 113-AB
ELECTRO-SEIS® modal shaker, especially developed for the calibration and testing for low frequency sensors and sensor characterization.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- adjustable armature re-centering

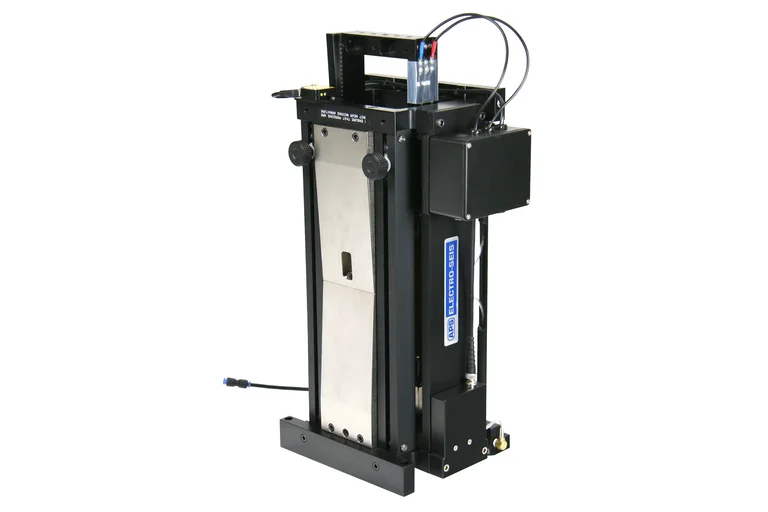

- horizontal and vertical operation
- rugged standard armature and air bearing guidance system
- sine wave, swept sine wave, random or impulse force waveforms
Accessories (optional)
- carrying handles and tie-down bars (APS 0108)
- central position controller (CPC)
- vertical mounting kit (APS 0162)
S-TEST Lab ALF
These shakers are available with an air bearing design for very precise motion or with robust ball bearing design for harsh testing conditions.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SPEKTRA CPC
The SPEKTRA CPC automatically controls the zero position of a vibration exciter irrespective of its load.
It is essential to employ a CPC-type controller especially when working with an air-bearing vibration shaker without any integrated automatic load compensation.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 500 DM
This specially designed power amplifier offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
