APS 500
ELECTRO-SEIS® modal shaker for calibration of position and acceleration meters with very low cross-axis motion.
Developed for the calibration and testing of compact low frequency sensors and for sensor characterization at higher acceleration the mounting table carries payloads up to 3 kg at frequencies up to 200 Hz.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- Max. Displacement pk-pk: 152 mm
- Frequency Range: DC…200 Hz
- air bearing guidance and support system carries up to 3.0 kg (6.6 lb) test load with very low cross-axis motion
- 79.5 mm x 79.5 mm (3.1 in x 3.1 in) load mounting table
Accessories (optional)
- power amplifier PA 500 DM
- system interconnect cable APS 0082-6E
- center position controller CPC
- vertical operation kit APS 5002
S-TEST Lab ALF
These shakers are available with an air bearing design for very precise motion or with robust ball bearing design for harsh testing conditions.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SPEKTRA CPC
The SPEKTRA CPC automatically controls the zero position of a vibration exciter irrespective of its load.
It is essential to employ a CPC-type controller especially when working with an air-bearing vibration shaker without any integrated automatic load compensation.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 500 DM
This specially designed power amplifier offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Similar products
SE-16
Rugged vibration exciter, specially developed for high frequency excitation of small components and sensors (longitudinal and transverse direction).
Devices under test (DUT) can be glued to the top or sides of the technical ceramic armature in any orientation to the main vibration axis.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-20
Innovative spring-guided vibration exciter with leading technology as part of the SE-2X exciter series.
The SE-20 offers a very wide frequency range, low transverse motion, a wide temperature range and high payload (e.g. for geophones). In addition to high quality components, the focus is on a broad range of applications and easy implementation in existing test environments. The shaker can be operated vertically and horizontally and requires no compressed air supply or zero-position control.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

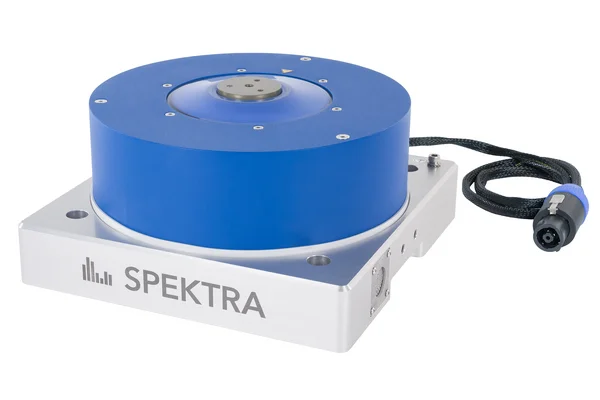

SE-20T
Our spring-guided vibration exciter features a very wide frequency range, low transverse motion, high payload (e.g. for geophones) and a wide temperature range.
The SE-20T is perfectly suited for use in climate chambers. In addition to high quality components, the focus is on a broad range of applications and easy implementation in existing test environments. The shaker can be operated vertically and horizontally and requires no compressed air supply or zero-position control.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-21
Powerful high-frequency exciter as part of the SE-2X series with cube-shaped ceramic armature for excitation of all DUT axes.
With its electrodynamic drive system, the SE-21 offers a very wide frequency range with low transverse motions. A high payload, simple operation in a climatic chamber (as SE-21T) and the many extensions enable the SE-21 to be used as a multi-tool for testing, characterizing and calibrating vibration sensors or smaller electronic devices.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

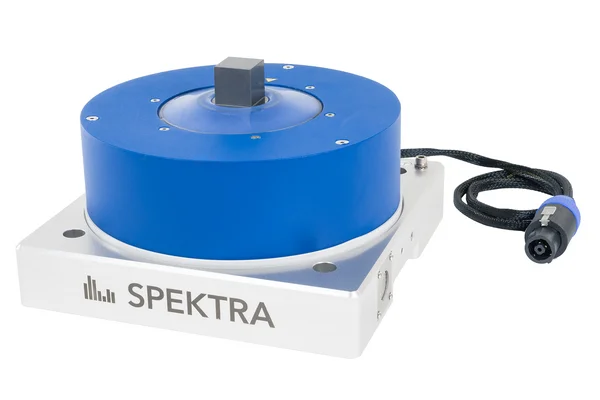

SE-21T
Particularly well-suited for sensor characterization of MEMS structures in climate chambers, the SE-21T offers powerful excitation in all axes thanks to its with cube-shaped ceramic armature and powerful electrodynamic drive system, very wide frequency range and low transverse motion. A high payload and the many extensions enable the SE-21T to be used as a multi-tool for testing, characterizing and calibrating vibration sensors or smaller electronic devices.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-29
Innovative exciter with efficient electrodynamic drive as part of the SE-2X exciter series.
The SE-29 offers a very wide frequency range and low transverse motion. Thanks to the wide temperature range and the high payload, it is optimally suited for larger sensors or geophones. Besides high quality components, the focus lays on a versatile field of application and easy implementation into existing test environments.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

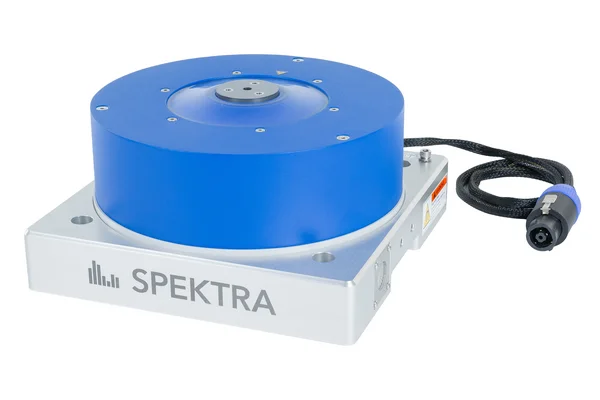

SE-29T
