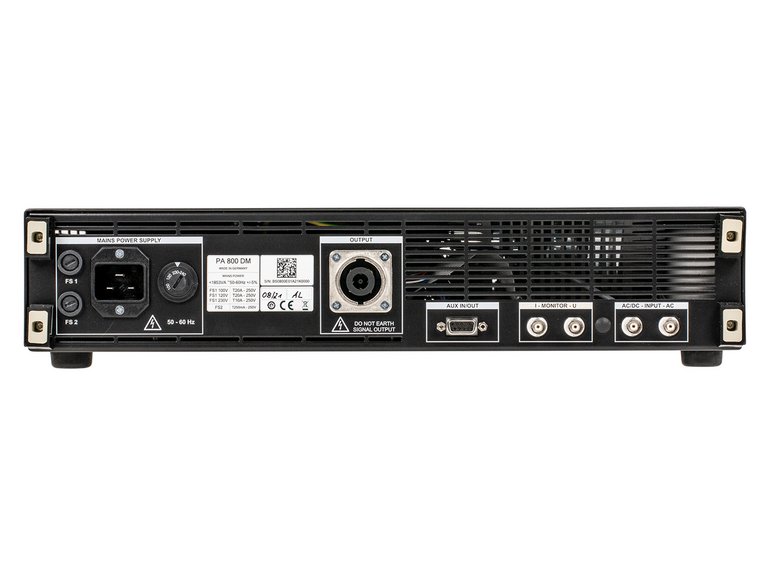

PA 800 DM

810 VA power amplifier

For all vibration exciters that require a 810 VA power amplifier (load impedance 2.5 Ω). The PA 800 DM offers a max. frequency range DC…25 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …



Download data sheet

PA 800 DM
PA 800 DM
PA 800 DM
PA 800 DM

Key Features

Features 1

 Features
  • frequency range:
    • 20 Hz...15 kHz full power
    • DC...25 kHz small signal
  • power output, max. 810 VA into a 2.5 Ω resistive load
  • high reliability operation


Features 2


  • switch between voltage and current mode
  • phase shift (0° or 180°)
  • variable gain control
  • current limit control
  • temperature protection
  • multifunction OLED display


Applications

 Applications
  • modal testing shakers
  • environmental testing systems
  • calibration systems

Range of use

 Range of use
  • research and development departments in industry
  • environment testing laboratories
  • calibration laboratories
  • universities and research institutes

Product details



For further details, please refer to the technical data sheet. Subject to change without notice.

PA 180 DM

PA 180 DM

180 VA power amplifier

The PA 180 DM offers a max. frequency range DC…100 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

For all vibration exciters that require a 180 VA power amplifier (load impedance 0.8 Ω).

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

PA 500 DM

PA 500 DM

500 VA power amplifier

The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet
