PA 180 DM

180 VA power amplifier

The PA 180 DM offers a max. frequency range DC…100 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

For all vibration exciters that require a 180 VA power amplifier (load impedance 0.8 Ω).



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

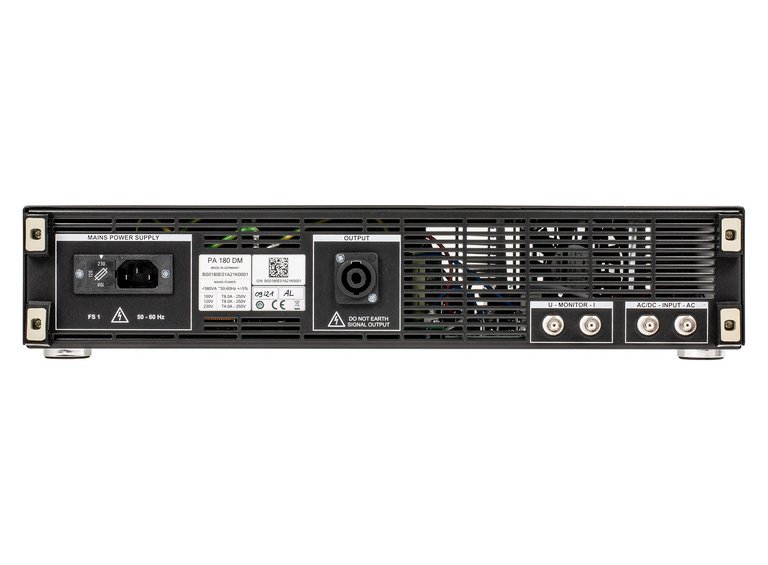

PA 180 DM
PA 180 DM
PA 180 DM
PA 180 DM

Key Features

Key features 1

 Key features
  • Frequency range:
    • 40 Hz…20 kHz full power
    • DC…100 kHz small signal
  • high reliability operation
  • switch between voltage and current mode

Key features 2


  • phase shift (0° or 180°)
  • variable gain control
  • current limit control
  • temperature protection
  • multifunction OLED display

Applications

 Applications
  • test and characterization
  • environmental testing systems
  • calibration systems
  • modal testing shakers

Range of use

 Range of use
  • research and development departments in industry
  • environment testing laboratories
  • calibration laboratories
  • universities and research institutes

Product details

Technical data

 PA 180 DM
Power output, max.180 VA an einer ohmschen Last von 0,8 Ω
Rated load
 		0,8 Ω ohmsche Last
Voltage output, max.12 V RMS
Current output, max.5 A (±0,5 A)
14 A Peak
12 A RMS
15 A RMS
0,1 Hz…10 Hz
10 Hz…40 Hz
40 Hz…20 kHz		DC
AC-Signal
Sinus
Sinus
Input voltage< 3 V
Input impedance> 10 kΩ
Power supply (adjustable)100 V / 120 V / 230 V ±5 %, 50 Hz / 60 Hz
durch Einstellen der Sicherung, einphasig, AC-Netzanschluss,
580 VA Leistungsaufnahme
Monitor outputVoltage monitor
Current monitor		0,1 V/V ±3 %
0,1 V/V ±3 %		5 Hz…20 kHz
5 Hz…20 kHz
Weight8 kg
Dimensions (H × W × L)88 mm × 482 mm × 290 mm



For further details, please refer to the technical data sheet. Subject to change without notice.
