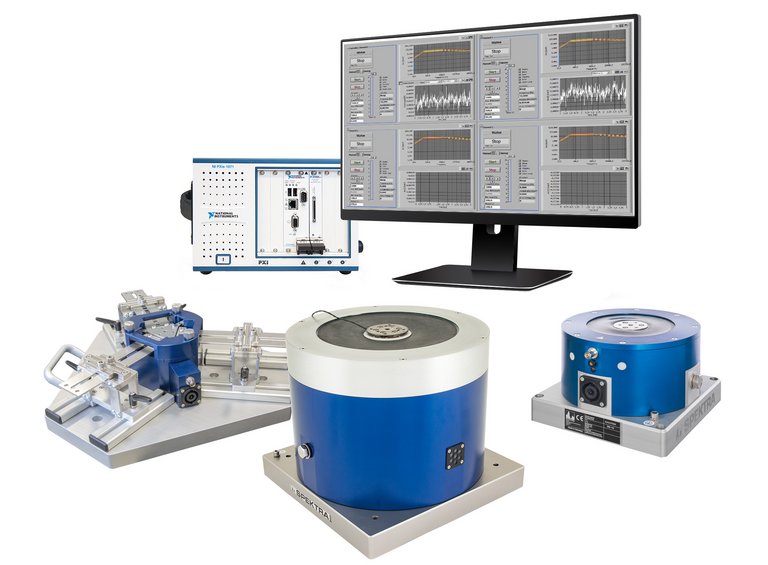

S-TEST Lab AMF

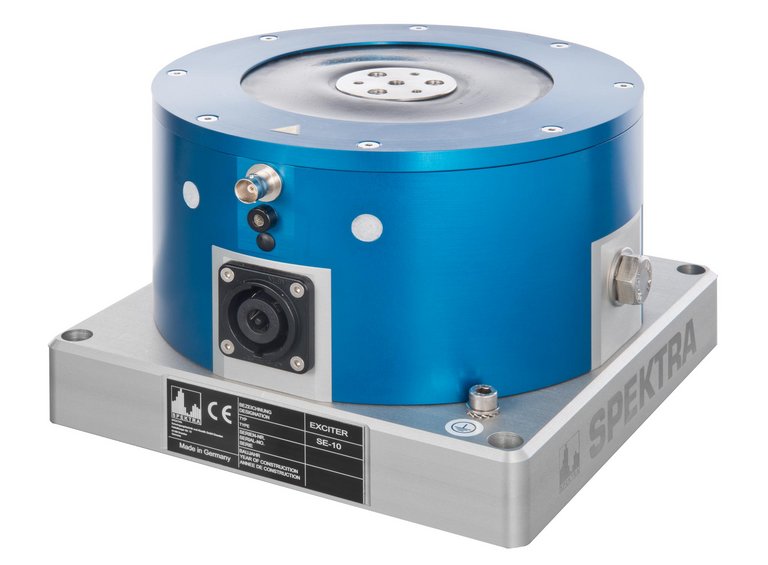

The S-TEST Lab AMF systems are based on the SPEKTRA vibration exciters such as the SE-10 or the SE-14.
These have been especially developed for the excitation of DUTs and sensors in the medium frequency range.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- Frequency range:
- SE-10: 3 Hz…10 kHz
- SE-14: 0 Hz…8 kHz
- SE-101 RES-HA: 65 Hz…500 Hz
- Max. force 100 N
- Max. payload 2 kg
- Sample rate 20/120 kS/s
- 24 Bit resolution
Software highlights
- Wide range of functions for R&D
- Sweep, dwell, manual mode, script operation and remote control
- Spectral analysis
- Distortion factor measurement
- Multi-channel sensor calibration
- Seamless sample recording
- Result database
- Extensive display functions
- Powerful filters
S-TEST/2
Compact system level test solution (SLT) for sensors with digital interfaces.
The S-TEST/2 is used in development and testing or for quality assurance in the manufacturing process.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

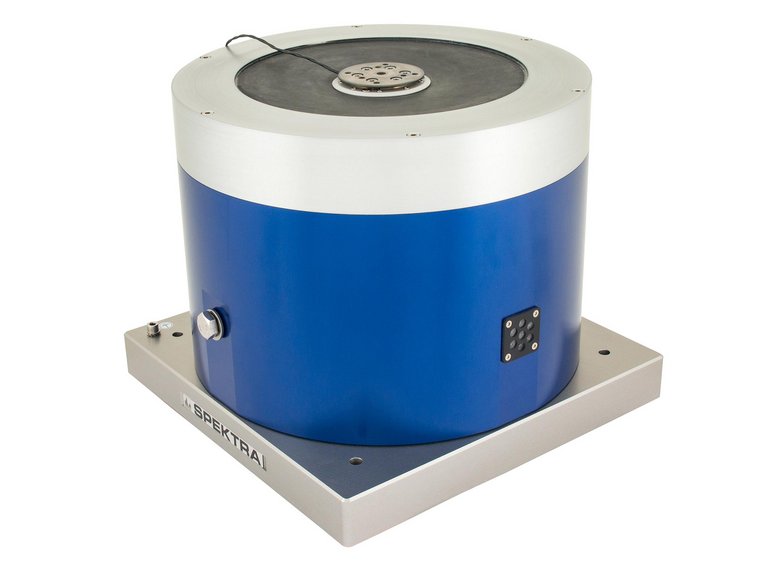

SE-14
Spring-guided vibration exciter - suitable for daily use in the calibration laboratory as well as for vibration tests in a wide frequency range of 0 Hz…8 kHz.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

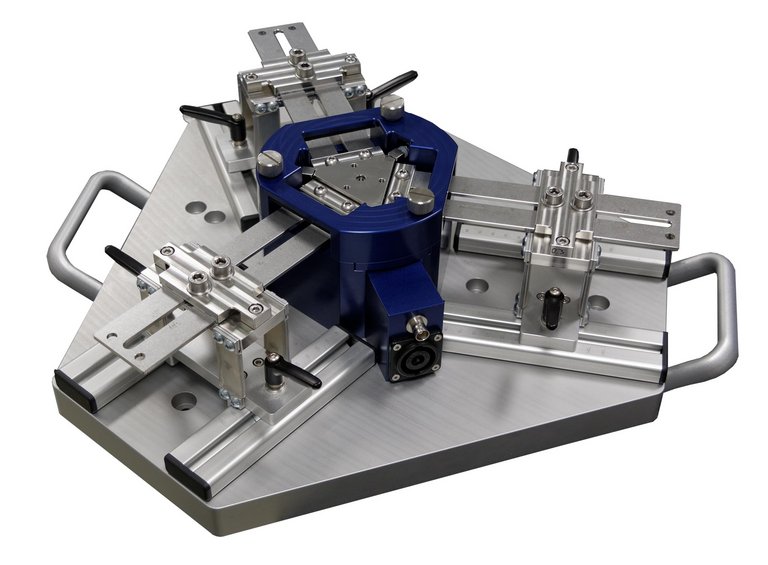

SE-101 RES-HA
Deliberately operated in resonance to generate harmonic acceleration-time signals with very high acceleration amplitudes.
The exciter is deliberately operated in a certain resonance to cost-effectively generate harmonic acceleration-time signals with very high acceleration amplitudes with a compact 100 N drive.
Main applications: amplitude linearity tests of sensors, vibration testing at high accelerations
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 800 DM
For all vibration exciters that require a 810 VA power amplifier (load impedance 2.5 Ω). The PA 800 DM offers a max. frequency range DC…25 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
