VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details

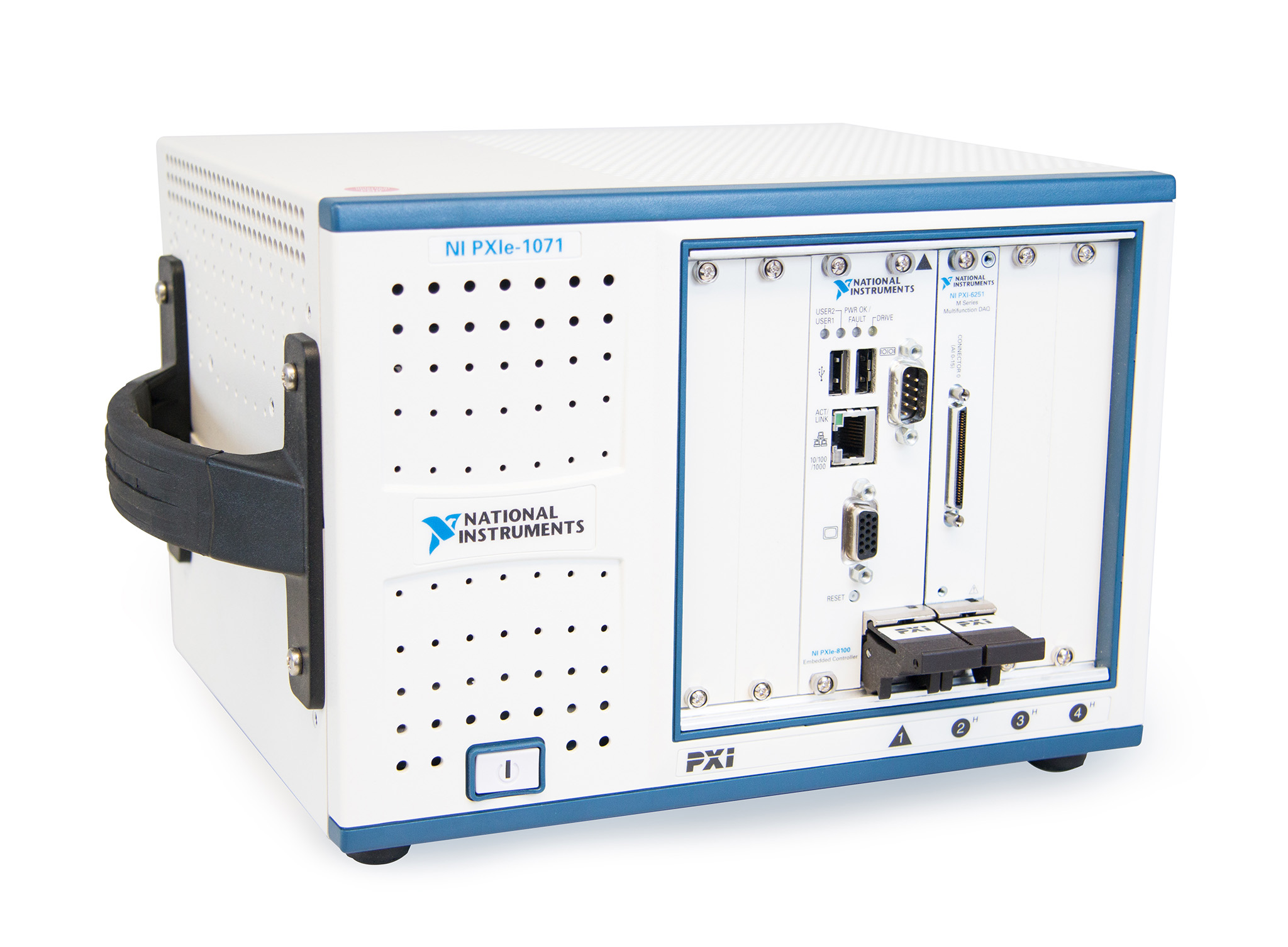

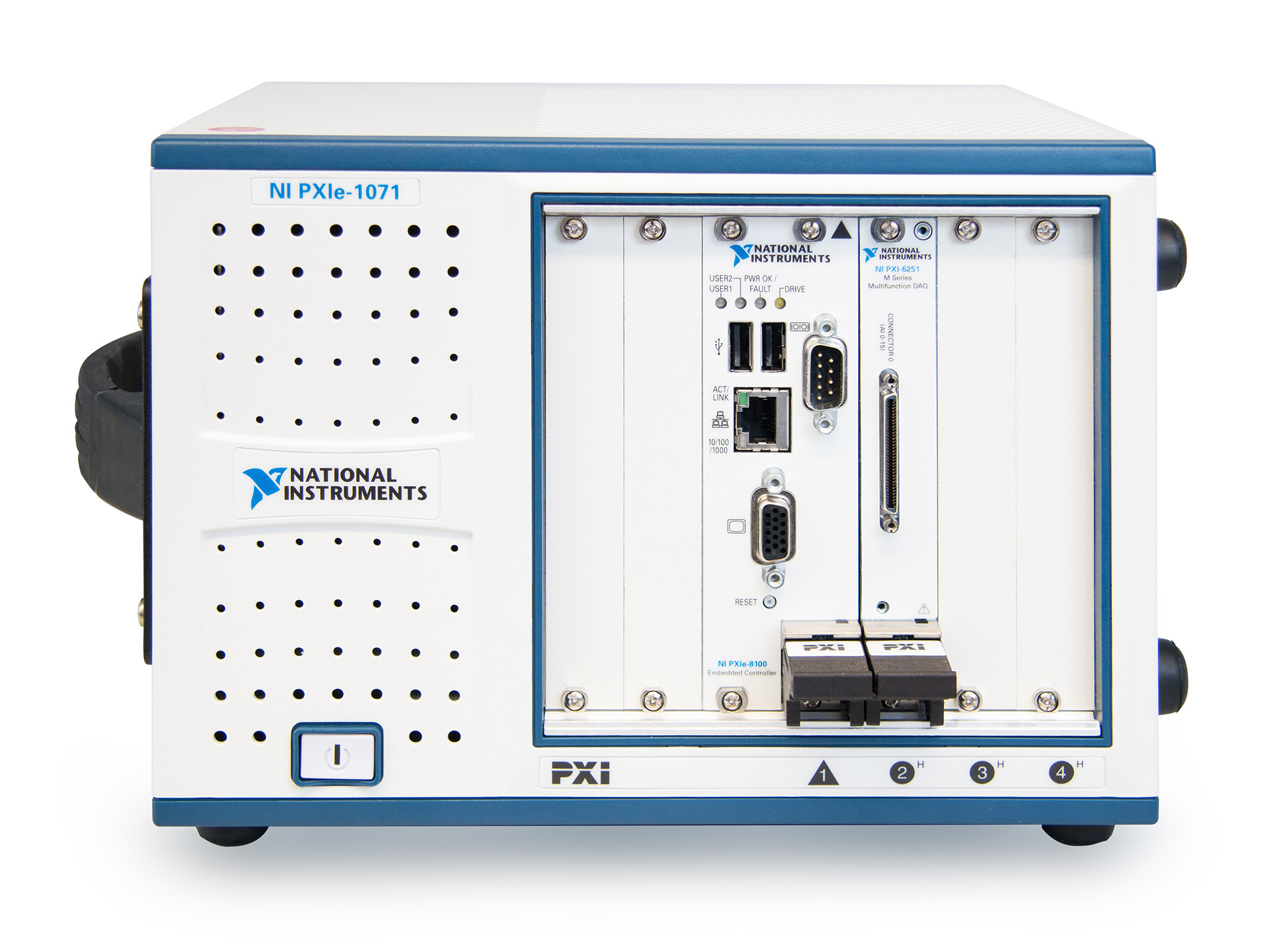

- PXI chassis from National Instruments®more information
- Very large frequency range (0.008 Hz...100 (1500) kHz)
- Anti-distortion mode (important for exciters APS-600, SE-10, DPE-01)
- 24-bit technology with wide dynamic range and low noise
- Individual and synchronized multichannel modes (1...10 control channels)
- Phase control for multichannel mode
- Spectral analysis, modal analysis
- Extensive functions for testing and research
- Remote control and system integration on multiple levels, digital interface
- Test scripts and multi-channel sensor measurement
- Real-time data acquisition and flawless recording
- 3-dimensional excitation modes
- Customizable database reports
- Laser support
- Distortion compensation
- Customized solution for quick production test
- XYZ multiplexer (3-direction testing)
- Interfaces for digital sensors
- Variable processor unit
- VCS 403: Quad core processor or higher.
High frequency and multi-channel applications, e.g. SE-09, SE-11, SE-16, 4*APS400 - VCS 401: dual core processor
Standard applications, e.g. APS 420, SE-10 - VCS 400: Atom processor
Low-cost solutions: Environmental test, production test
- VCS 403: Quad core processor or higher.

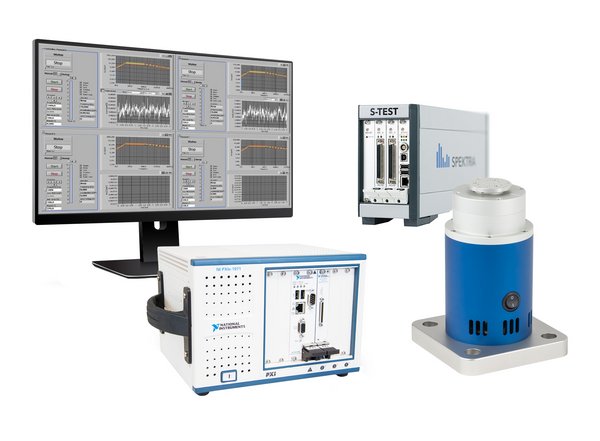

S-TEST Lab DRE
The S-TEST Lab DRE system is based on the DRE-01 dynamic rotation exciter.
A typical application here is the determination of the properties of MEMS sensors and sensor components in the development phase.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

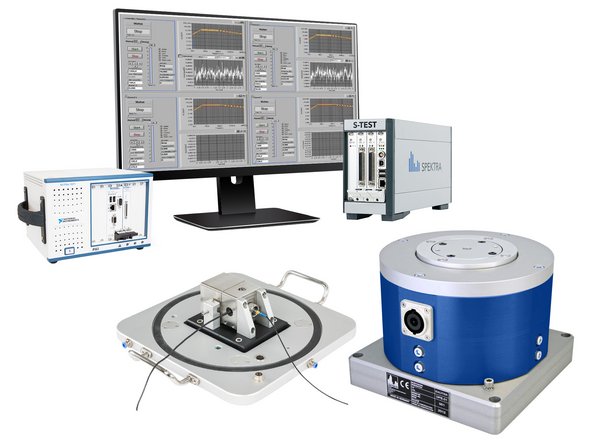

S-TEST Lab DPE
