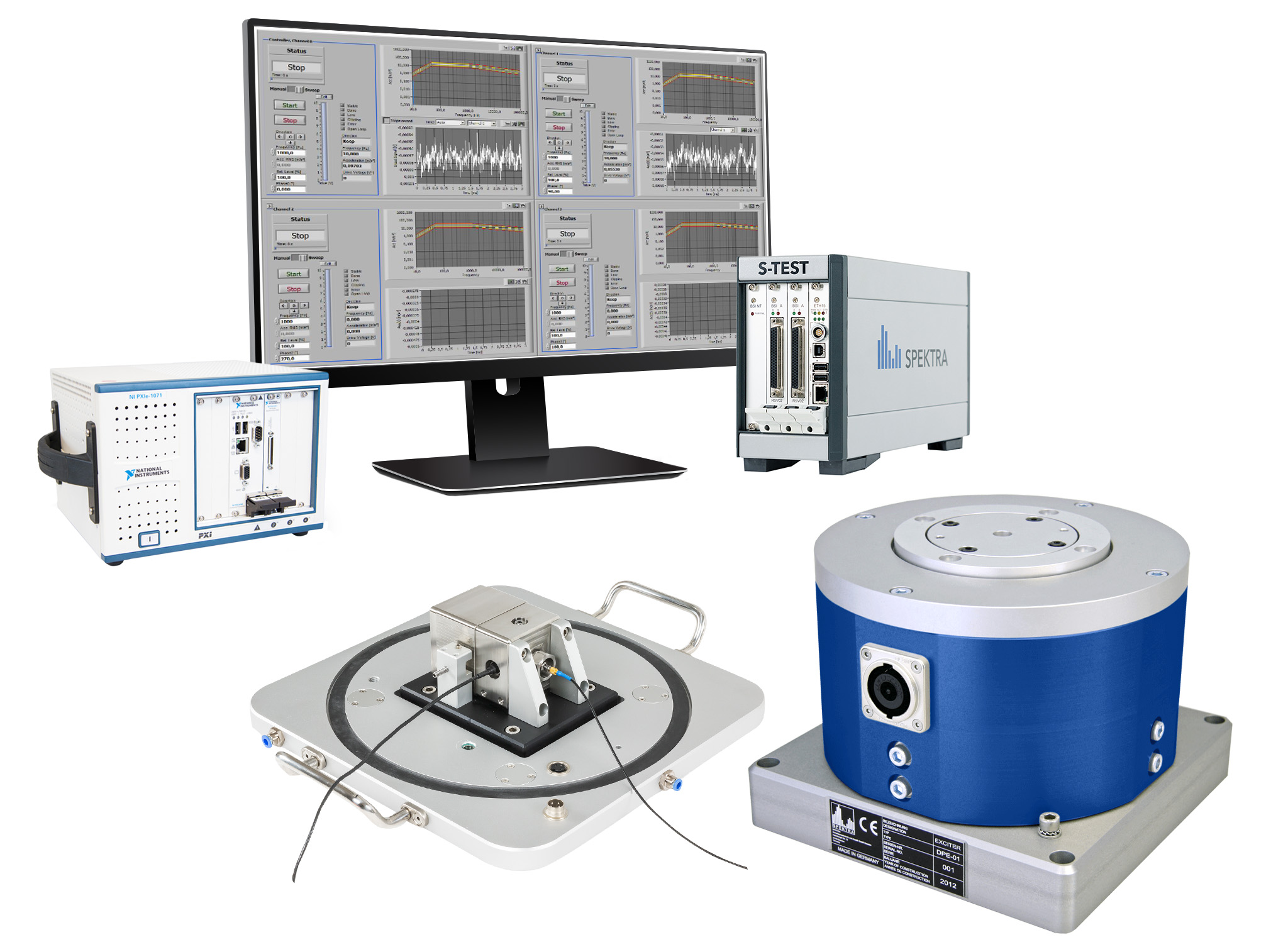

S-TEST Lab DPE
We have developed unique test equipment for pressure sensors that offers sine and shock excitation.
An impulse with a max. pressure level of up to 420 MPa is introduced into your sensor. The pressure chamber can be adjusted and the DPE-02 can be configured as a vibration exciter, if required.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- With SE-10 based DPE-01 pressure exciter
- Frequency range: 10 Hz…2 kHz
- Amplitude: 100 Pa…16 kPa
- With dynamic pressure exciter DPE-02
- 22 MPa…420 MPa
Software highlights
- Sine
- Noise
- Shock
- Chart
- Distortion factor measurement recommended
S-TEST/2
Compact system level test solution (SLT) for sensors with digital interfaces.
The S-TEST/2 is used in development and testing or for quality assurance in the manufacturing process.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
DPE-01
Dynamic pressure exciter for secondary calibration of pressure sensors within the pressure range of 16 kPa (0,16 bar)
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

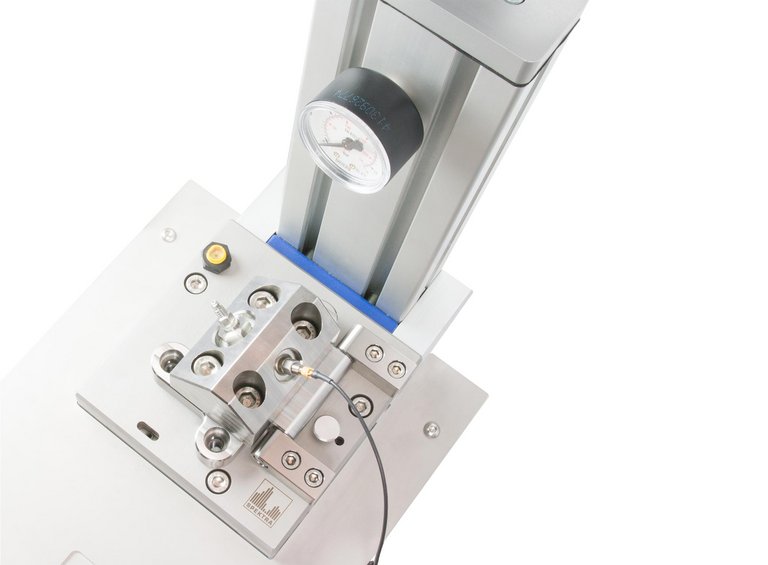

DPE-02
Generates pressure shock impulses with low pulse duration (<2 ms)
for dynamic tests/calibration of pressure sensors
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
