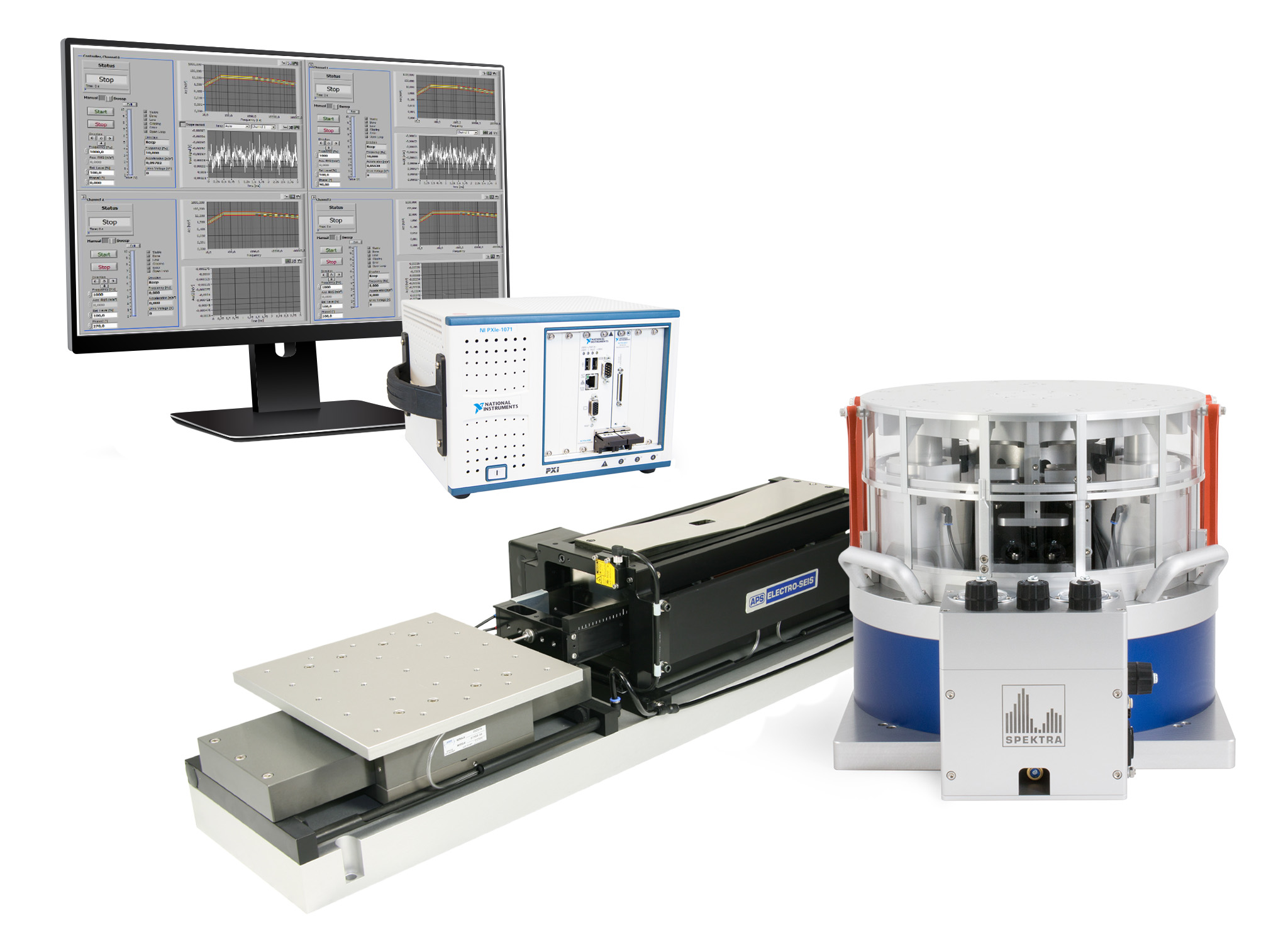

S-TEST Lab ALF
These shakers are available with an air bearing design for very precise motion or with robust ball bearing design for harsh testing conditions.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- Air bearing low-frequency exciters:
- APS 600: Frequency range up to 100 Hz
- APS 113-AB, APS 129, APS 500: Frequency range up to 200 Hz
- SE-13: Frequency range up to 400 Hz
- Ball bearing low-frequency exciters APS 113, APS 400 or APS 420
- Frequency range up to 200 Hz
- Max. force: 900 N
- Vertical and horizontal mode of operation
- Synchronous, well-tuned multi-exciter operation, multi-channel option
- 4 vibration modes
Software highlights
- Sine/noise 50 mHz…500 Hz
- Sweep, Dwell, manual mode, script operation and remote control
- Distortion factor measurement
- Spectral analysis and modal alanalysis
- Seamless sample recording
- Extensive display functions and charts
- Powerful filters
- Distortion compensation
S-TEST/2
Compact system level test solution (SLT) for sensors with digital interfaces.
The S-TEST/2 is used in development and testing or for quality assurance in the manufacturing process.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 113-AB
ELECTRO-SEIS® long stroke vibration exciter, especially developed for the calibration and testing for low frequency sensors and sensor charcterization.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 129
ELECTRO-SEIS® vibration exciter with mounting table for high payloads up to 23 kg and frequencies up to 200 Hz.
Especially developed for the calibration and testing of big and heavy low frequency sensors as well as for sensor characterization (e.g. geophones or heavy seismic sensors).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 500
ELECTRO-SEIS® vibration exciter with mounting table for payloads up to 3 kg and frequencies up to 200 Hz.
Especially developed for the calibration and testing of compact low frequency sensors and for sensor characterization at higher acceleration.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 600
ELECTRO-SEIS® Long Stroke vibration exciter with mounting table for very high payloads up to 25 kg.
Especially developed for the calibration and testing of geophones and heavy seismic sensors.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 113
ELECTRO-SEIS® modal shaker specifically designed to be used alone or in arrays for modal excitation of complex structures, particularly at low frequencies.
Different operating modes with reaction masses, fixing points or auxiliary table kits multiply the application possibilities.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 400
ELECTRO-SEIS® modal shaker with 445 N max. force - suitable for excitation of large structures such as ceilings or bridges
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
APS 420
Our strongest ELECTRO-SEIS® modal shaker - maximum force of 900 N and up to 150 mm stroke
The APS 420 is used for vibration tests of airplanes and large structures. Its maximum force of 900 N and up to 150 mm stroke of the shaker unlocks new performance levels.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more…
