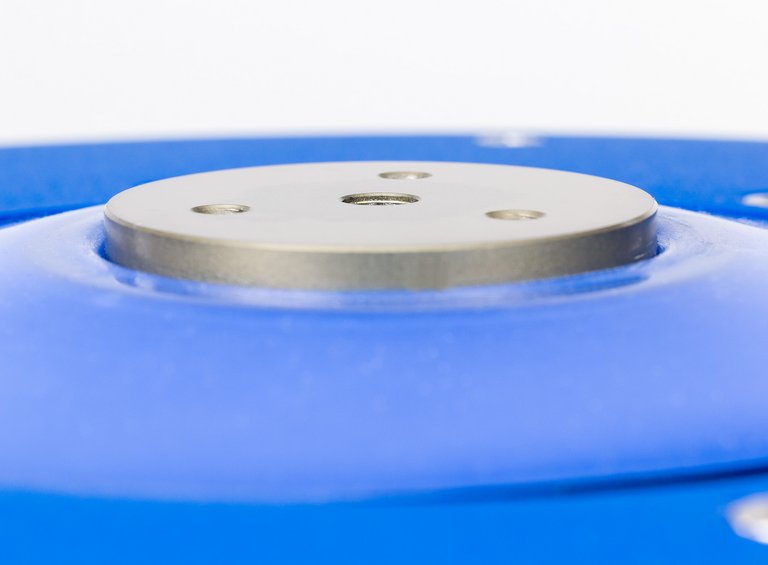

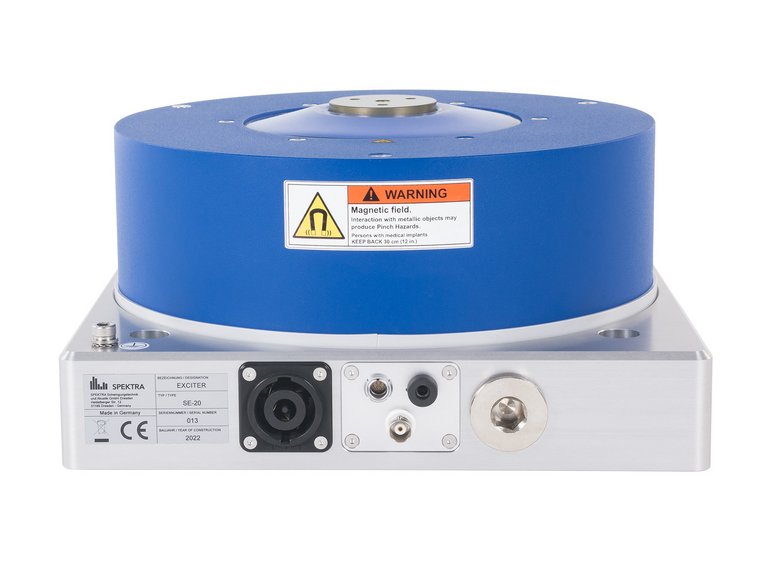

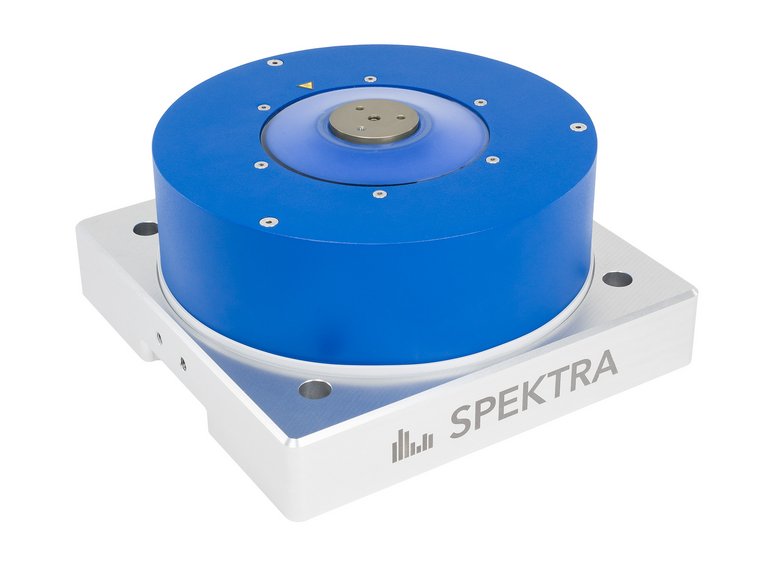

SE-20
Innovative spring-guided vibration exciter with leading technology as part of the SE-2X exciter series.
The SE-20 offers a very wide frequency range, low transverse motion, wide temperature range and high payload. In addition to top quality components, the focus is on a versatile range of application and easy implementation in existing test environments.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
For further details, please refer to the technical data sheet. Subject to change without notice.
CS Q-LEAP™ SINE with SE-20
The CS Q-LEAP™ system is used for vibration calibration (3 Hz…10 kHz) of a wide range of sensors. It consists of the HERO™ vibration controller and the SE-20 high-frequency vibration exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SE-2x Trunnion Base
Allows the vibration axis of the exciter (SE-20, SE-21 and SE-29) to be tilted and locked at any angle between 0° and 90° from the vertical axis.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
