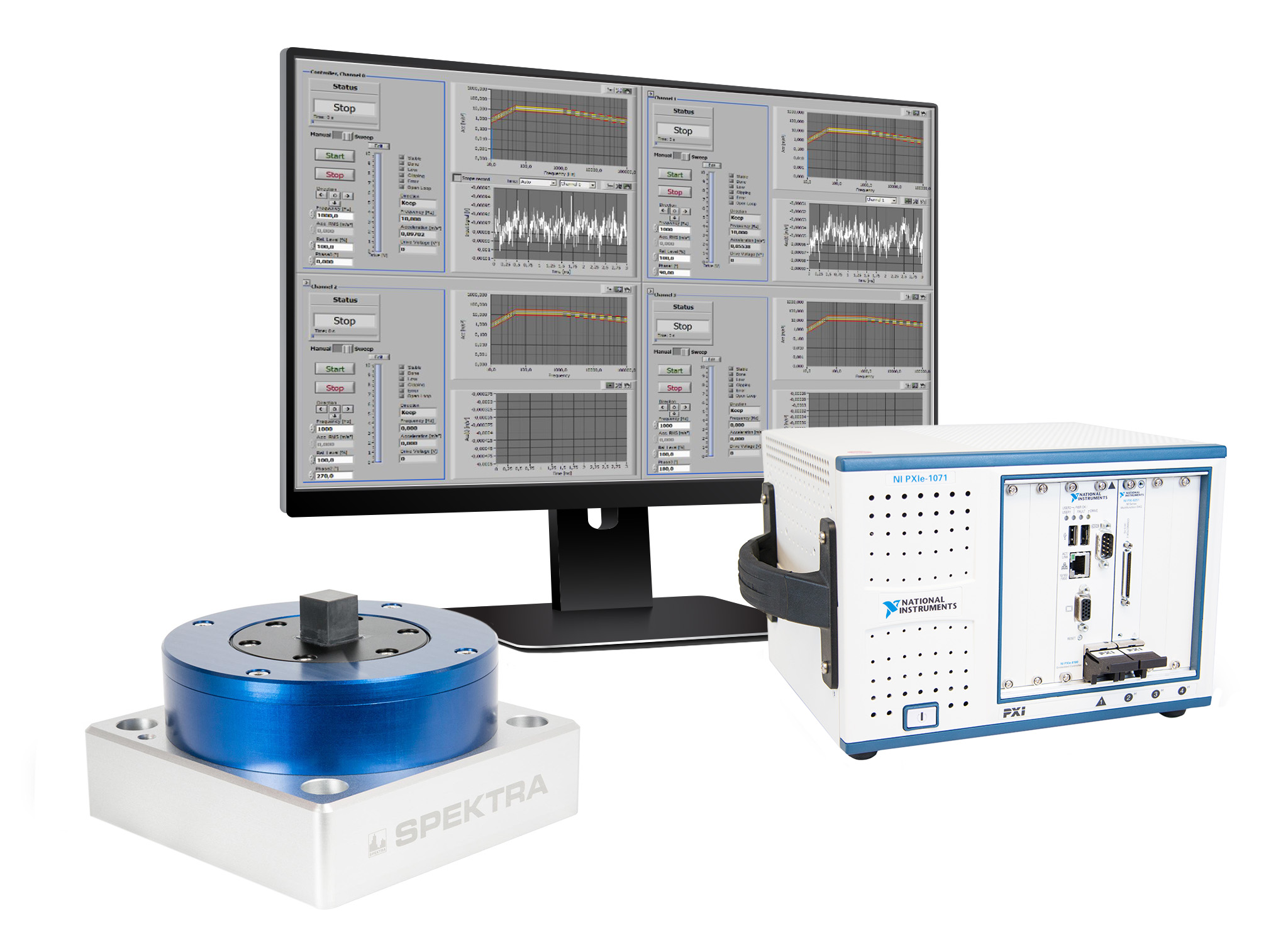

S-TEST Lab VHF
System for excitation of small components and sensors.
The S-TEST Lab VHFis based on the SE-16 vibration exciter, which has been specially developed for high frequency excitation of small components and sensors both in the longitudinal and transverse direction.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- Frequency range: 5 kHz...100 kHz (200 kHz)
- Acceleration up to 400 m/s²
- Displacement: 8 /0,01 mm
- Sample rate 120/200 kS/s
- Mounting in different orientation to direction of movement
Software highlights
- Wide range of functions for R&D
- Sweep, Dwell, manual mode, script operation and remote control
- Distortion factor measurement
- Supports laser vibrometer and scanning laser vibrometer
- Spectral RMS measurement
- Blind flight option and manual control to provide lowest vibration levels
- Seamless sample recording
SE-16
Rugged vibration exciter, specially developed for high frequency excitation of small components and sensors (longitudinal and transverse direction).
Devices under test (DUT) can be glued to the top or sides of the technical ceramic armature in any orientation to the main vibration axis.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
S-TEST/2
Compact system level test solution (SLT) for sensors with digital interfaces.
The S-TEST/2 is used in development and testing or for quality assurance in the manufacturing process.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
VCS 40x
Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
