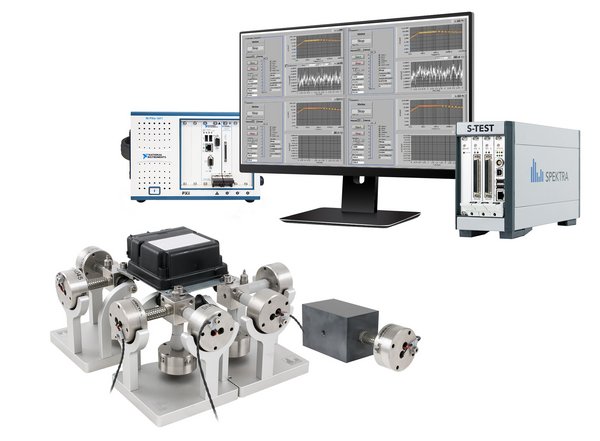

S-TEST Lab APC

S-TEST Lab Systems for piezoelectric excitation of sensors on one axis or more axes.

The special design of the Piezocube makes it possible to introduce vibrations to a DUT at different mounting points or axes.



This allows for controlled modal analysis – as is commonly required for high-frequency excitation of large DUTs (e.g. groups of several sensors).

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

S-TEST Lab APC
S-TEST Lab APC
S-TEST Lab APC
S-TEST Lab APC
S-TEST Lab APC

Product details

PC-01 for single-axis or PC-X for multi-axis excitation

  • High-performance ceramic block with piezoelectric actuator
  • Frequency range: 5 kHz...40 kHz
  • Acceleration: 300 m/s²
  • Sample rate 200 kS/s
  • Low weight and high stiffness offer high resonance frequencies
  • Complex 3D field data replication or simultaneous sine/noise excitation in XYZ requires a complex setup with 9 amplifiers and a 9-channel VCS.

Software highlights

  • Sine/noise 0,1 Hz...95 kHz
  • Multiple functions for R&D
  • Sweep, dwell, manual mode, script operation and remote control
  • Spectral analysis
  • 3D replication with lateral vibration compensation
S-TEST/2

S-TEST/2

Compact test system for digital sensors

Compact system level test solution (SLT) for sensors with digital interfaces.



The S-TEST/2 is used in development and testing or for quality assurance in the manufacturing process.

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

VCS 40x

VCS 40x

Vibration control system product range based on NI® PXI system

Flexibly configurable components, based on the powerful PXI system from National Instruments®.
Drive of our exciters, from very low to very high frequencies: 10 mHz...500 kHz. Versatile applications allow very fast and effective production tests.

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

PC-01

PC-01

Piezo exciter, Single Axis

single axis piezo exciter with a frequency range of 5 kHz…40 kHz and max. acceleration of 300 m/s²



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

PC-X

PC-X

Piezo exciter, Multi Axis

Multi-axis piezo exciter with a frequency range of 5 kHz…40 kHz and max. acceleration of 300 m/s²



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …
