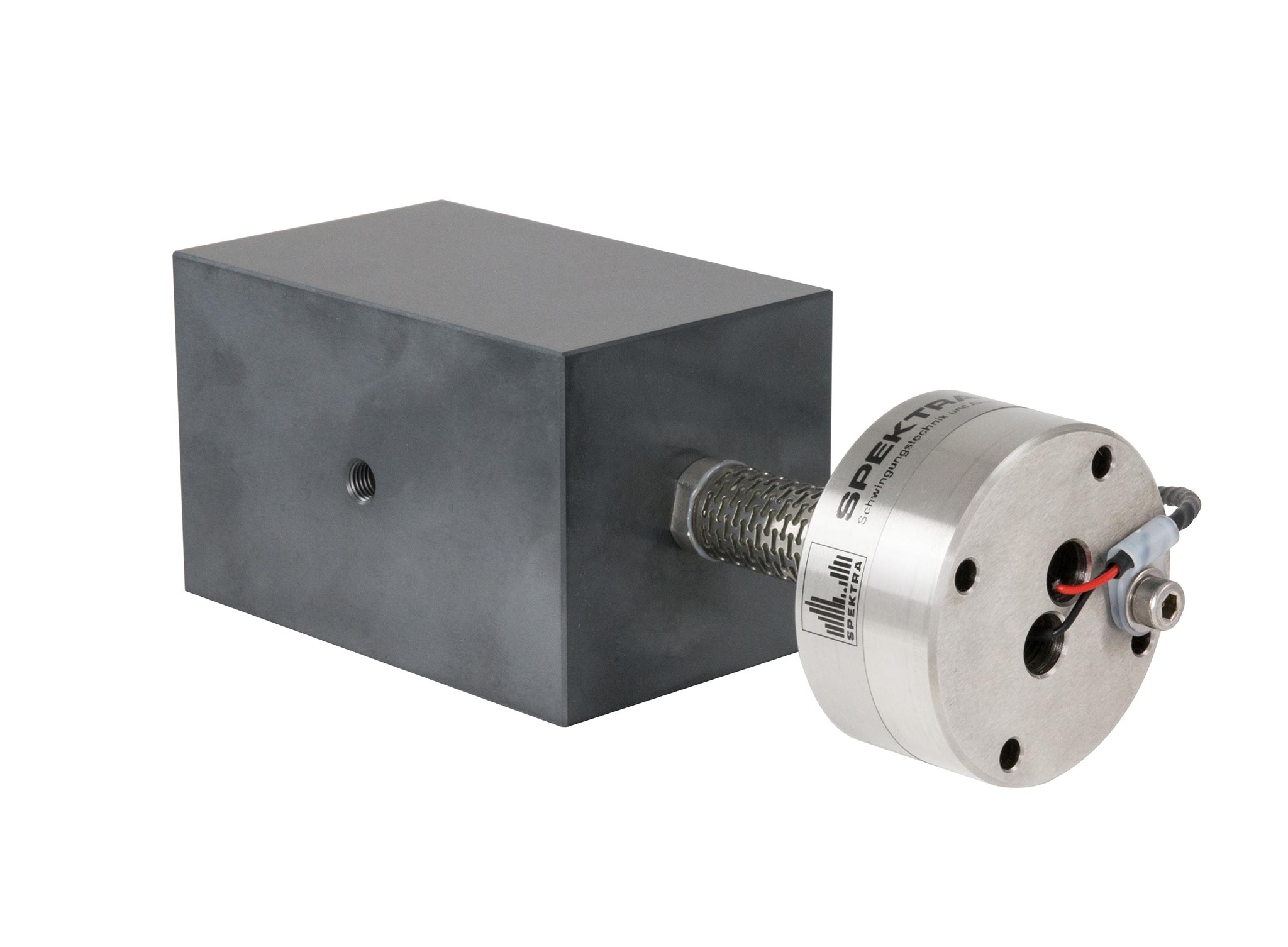

PC-01

Piezo exciter, Single Axis

single axis piezo exciter with a frequency range of 5 kHz…40 kHz and max. acceleration of 300 m/s²



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

PC-01

Product details

  • Frequency Range: 5 kHz…40 kHz
  • Max. Acceleration: 300 m/s²
  • Typical Cross Movement: < 20 %
  • Operating Temperature Range: -50 °C…140 °C
  • High Frequency excitation of bigger DUT (e.g. sensor cluster with gyroscopes)
  • Cube from technical ceramics with piezoelectric drive
  • Low weight and high stiff ness lead to high resonance frequency
  • Vibration vs. temperature test in thermal chamber possible
S-TEST Lab APC

S-TEST Lab APC

S-TEST Lab Systems for piezoelectric excitation of sensors on one axis or more axes.

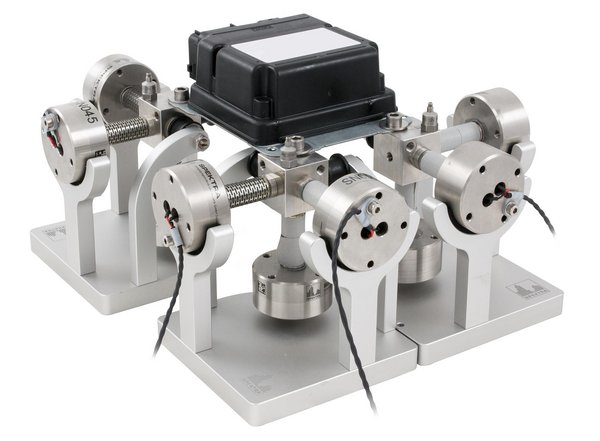

The special design of the Piezocube makes it possible to introduce vibrations to a DUT at different mounting points or axes.



This allows for controlled modal analysis – as is commonly required for high-frequency excitation of large DUTs (e.g. groups of several sensors).
