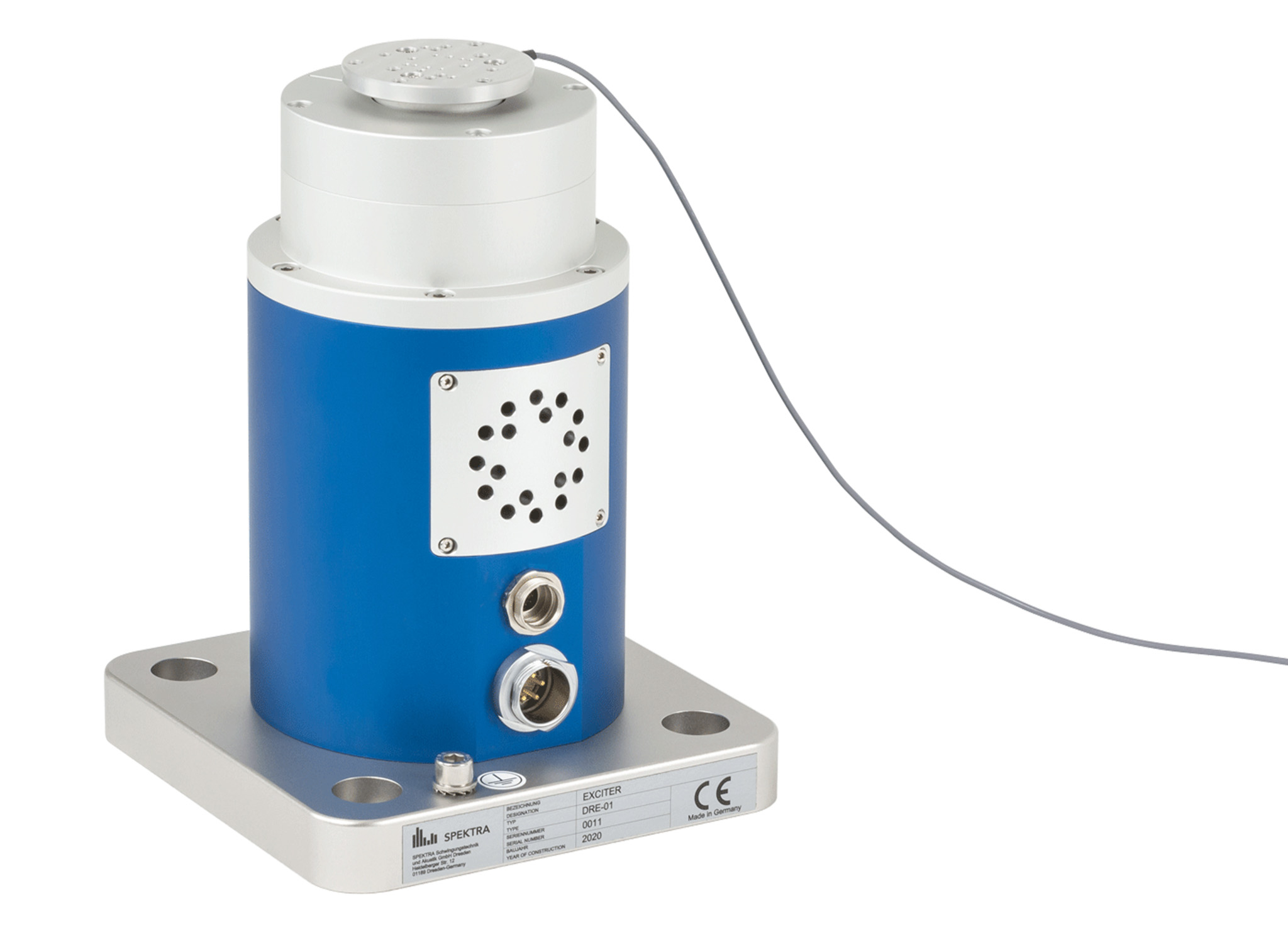

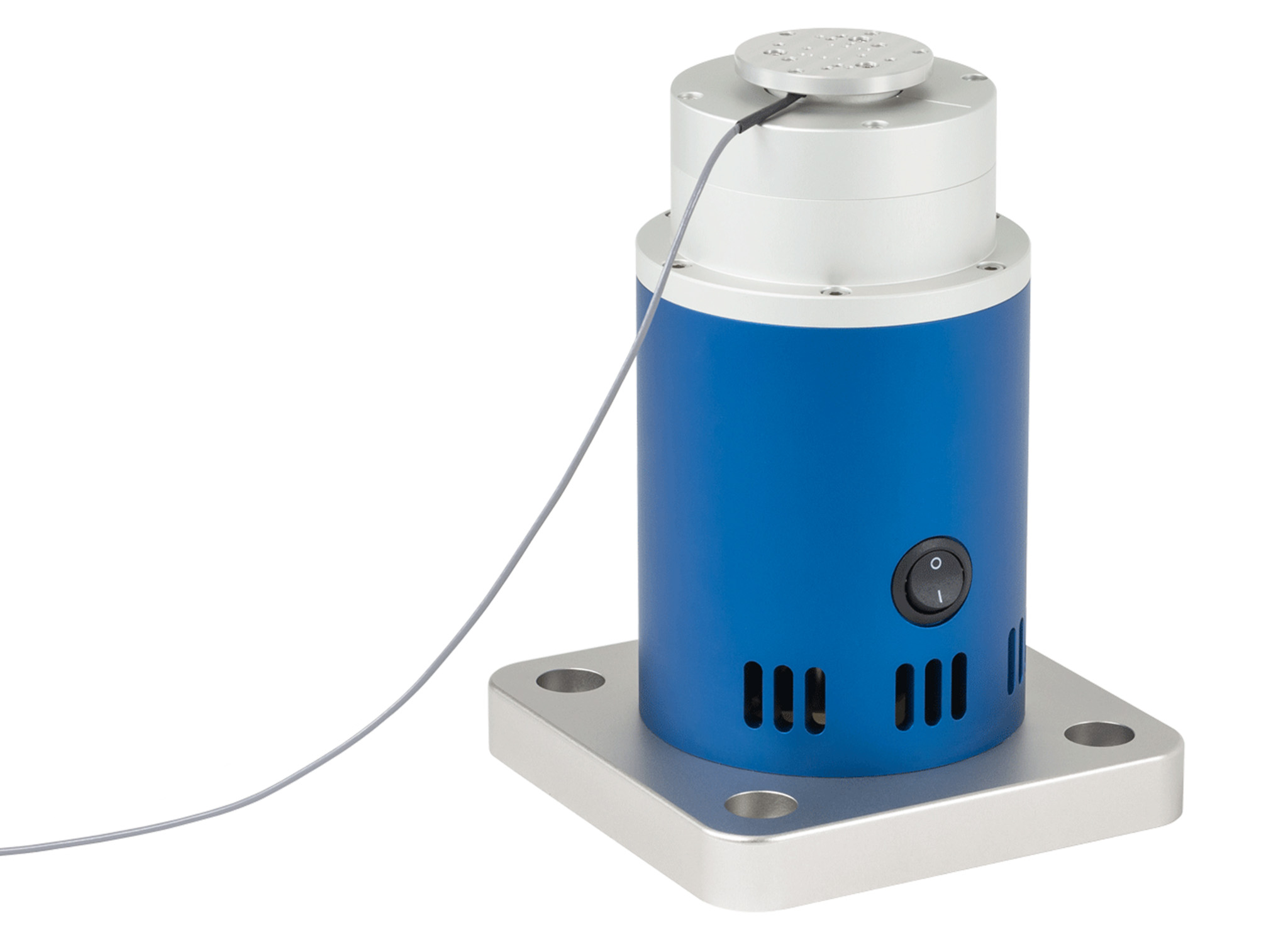

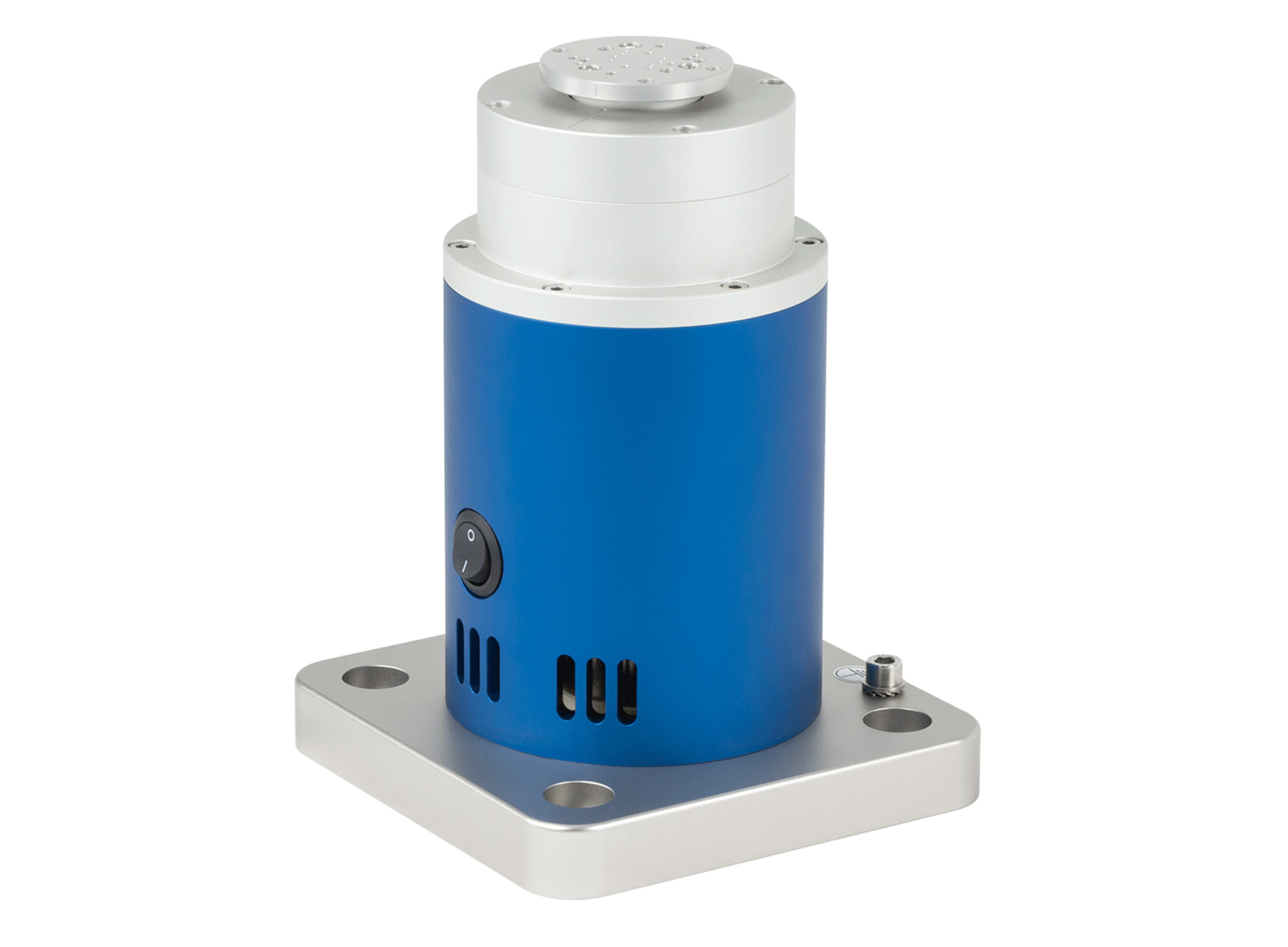

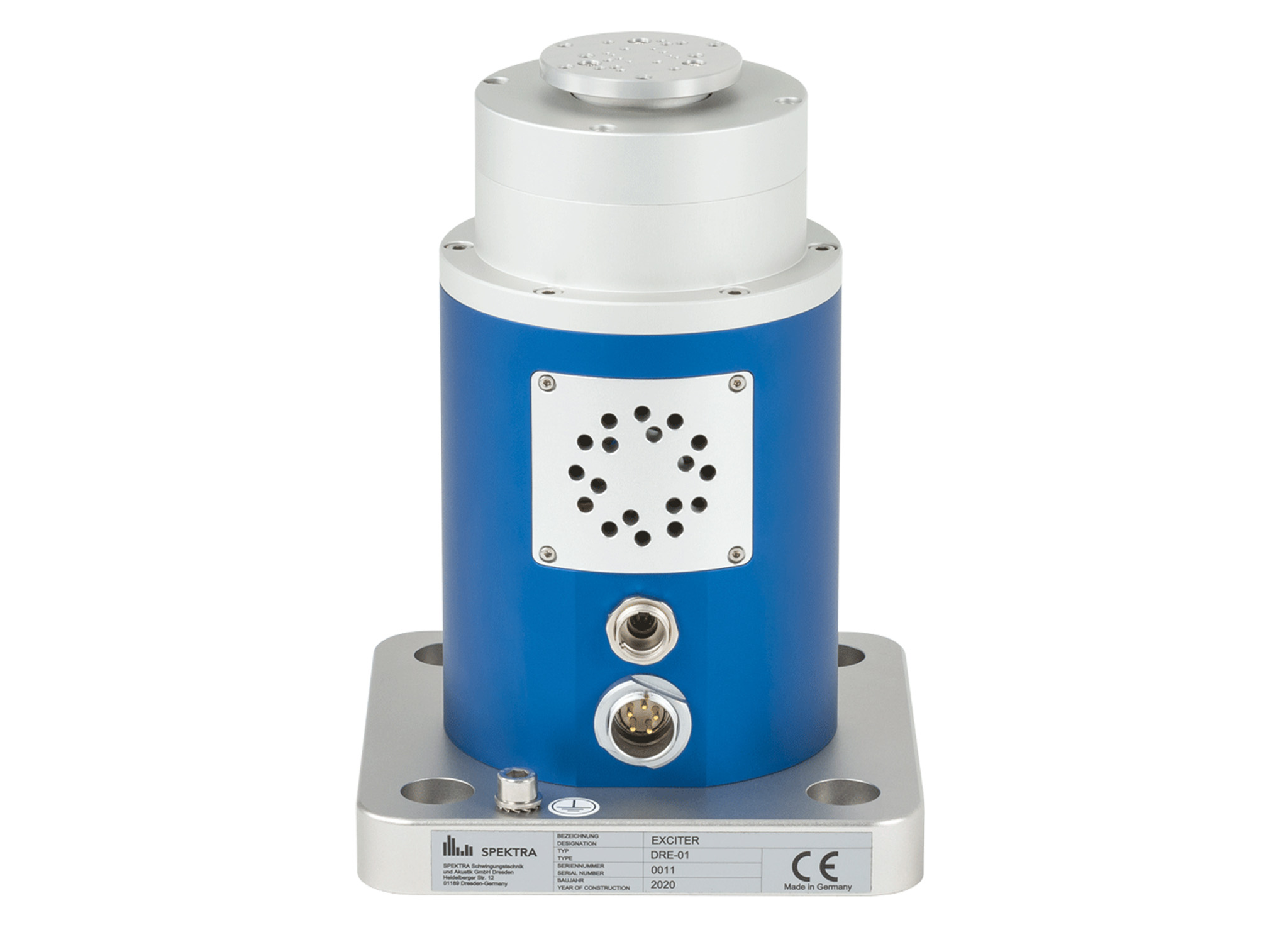

DRE-01
The DRE-01 is used for calibration of gyro transducers (angular velocity/acceleration).
It is also used for characterization of MEMS sensors. It features very low motion distortion, built-in overload protection and cooling for improved performance, and can be operated with any signal generator or vibration controller.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
Technical data
- Torque, max.: 0.95 Nm (sine peak)
- Frequency range, max.: 1 Hz...5 kHz
- Payload, max.: 0.5 kg
- Transverse acceleration:
- 1 Hz…600 Hz: < 0.2 m/s²/(°/s)
- 600 Hz…5 kHz: < 2.0 m/s²/(°/s)
- Angular velocity, max: 5 300 °/s (sine peak)
- Angular acceleration, max: 2 500 000 °/s (sine peak)
- Total harmonic distortion (angular velocity):
- 1 Hz…6 Hz: < 10%
- 6 Hz…5 kHz: < 3%
For further details, please refer to the technical data sheet. Subject to change without notice.
Performance
The possible performance charts for angular velocity measurements with different payloads are exemplified in the following graph. The performance charts are based on operation of the DRE-01 with its recommended power amplifier PA 500 DM and the optional internal reference standard. All displayed measurements with the PA 500 DM are operated with the internal cooling system.

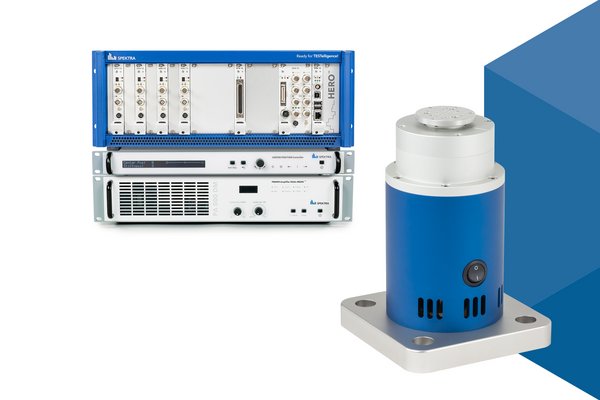

CS Q-LEAP™ GYRO with DRE-01
Typical test items include gyro transducers (angular velocity), inertial measurement units (IMU) and rotation rate measuring systems. The CS Q-LEAP™ comes with DRE-01 rotation exciter, HERO™ vibration control system, zero position controller, power amplifier and software.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
PA 500 DM
The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).
