CS Q-LEAP™ GYRO with DRE-01

calibration system for angular velocity sensors and measurement systems

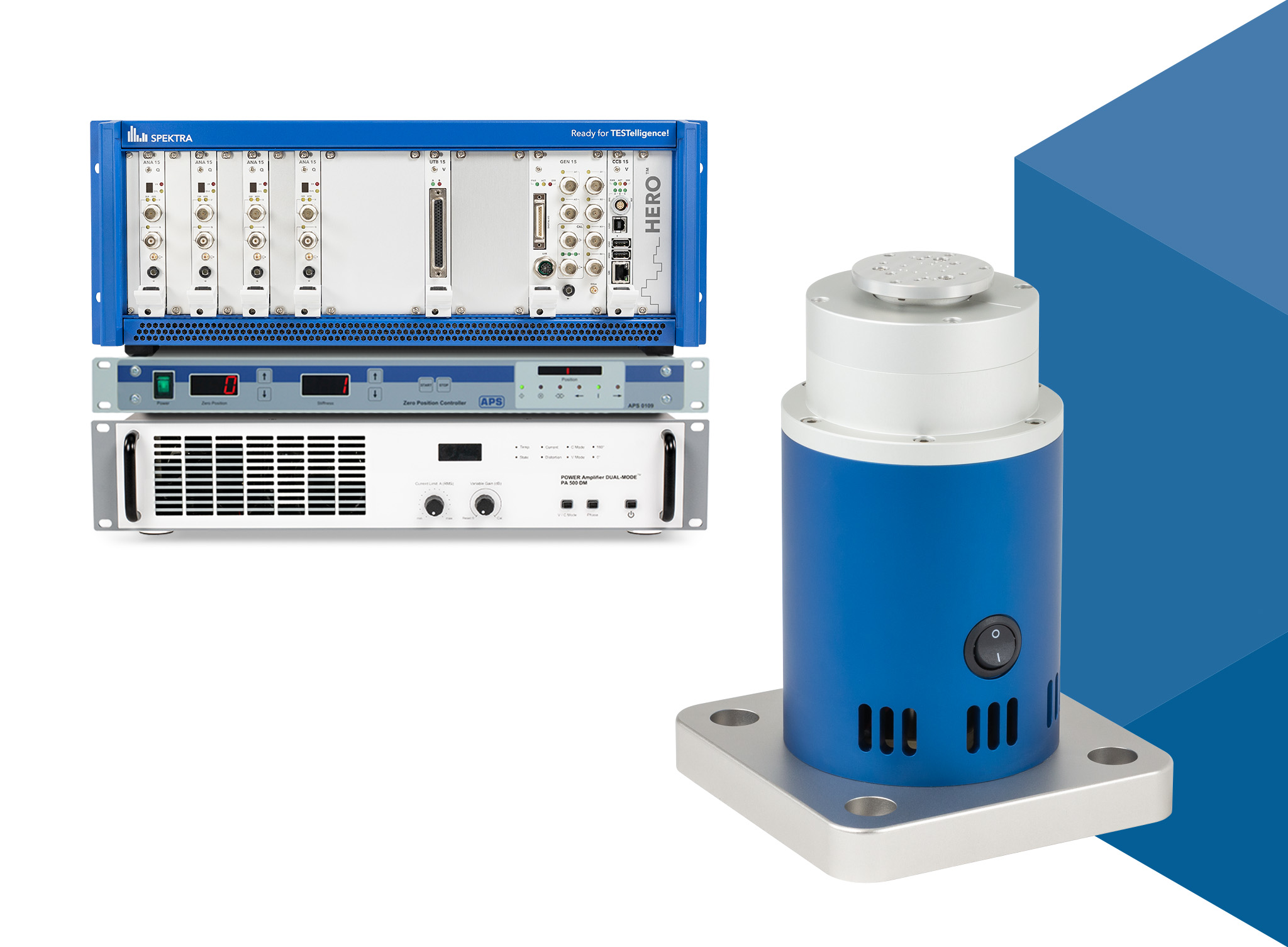

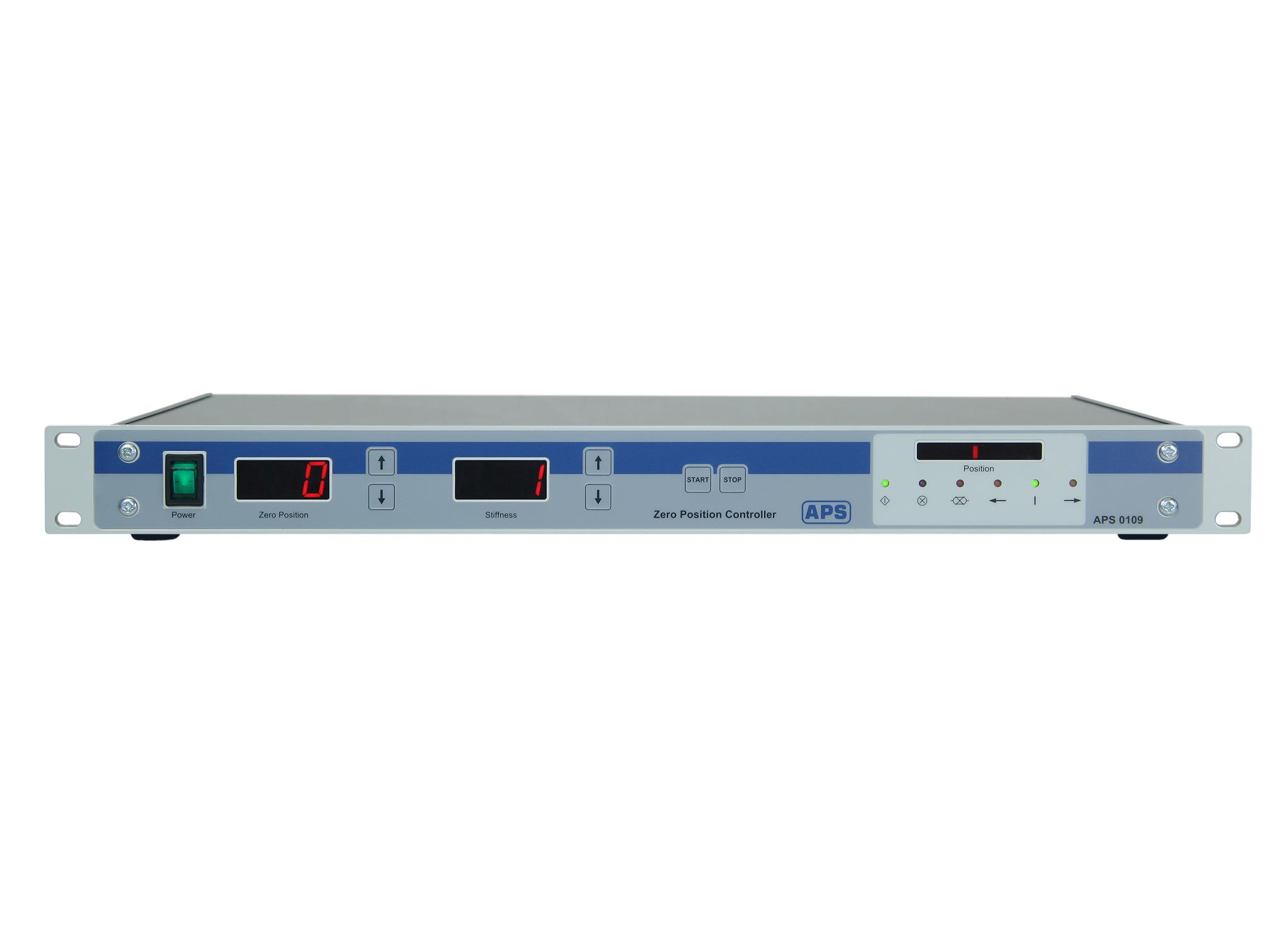

Typical test items include gyro transducers (angular velocity), inertial measurement units (IMU) and rotation rate measuring systems. The CS Q-LEAP™ comes with DRE-01 rotation exciter, HERO™ vibration control system, zero position controller, power amplifier and software.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …



Download data sheet

CS Q-LEAP™ GYRO with DRE-01
CS Q-LEAP™ GYRO with DRE-01
CS Q-LEAP™ GYRO with DRE-01
CS Q-LEAP™ GYRO with DRE-01
CS Q-LEAP™ GYRO with DRE-01
CS Q-LEAP™ GYRO with DRE-01

Key Features

Key Features 1

 Key features
  • Torque, max.: 0.95 Nm (sine peak)
  • Frequency range:1 Hz...200 Hz – traceable range for calibration
  • > 200 Hz...5 kHz – extended range for testing purposes
  • Traceable to PTB (German National Metrology Laboratory)

Key Features 2


  • Calibration of angular velocity sensors and measurement systems to ISO 17025: General requirements for the competence of testing and calibration laboratories
  • Integrated sensor database


Key Features 3


  • Integrated e-Cal™ software for the generation of calibration certificates (print, PDF...)
  • Easy data exchange with applications like ERP systems or measuring equipment databases

Technical data

 Technical data
  • Angle, max.: 30° (peak - peak)
  • Angular velocity, max.: 5 300 °/s2 (sine peak)
  • Angular acceleration, max: 2 500 000 °/s2 (sine peak)
  • Payload, max.: 0.5 kg

Product details

CS Q-LEAP™ software

  • sine calibration
  • sine sweep
  • vibration measurement
  • vibration generation
  • more information

Typical DUTs

  • gyro transducers (angular velocity)
  • Inertial Measurement Units (IMU)
  • rotation rate measuring systems

Standards

  • ISO 17025: General requirements for the competence of testing and calibration laboratories

For further details, please refer to the technical data sheet. Subject to change without notice.

HERO™

HERO™

HERO™ vibration control and measurement system

HERO™ is the heart of the CS Q-LEAP™ calibration systems.
It offers a variety of output options, interfaces for data import and export, and enables powerful digital as well as analog signal processing. The HERO™ can be flexibly configured with many different modules.

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

DRE-01

DRE-01

Dynamic Rotation Exciter

The DRE-01 is used for calibration of gyro transducers (angular velocity/acceleration).

It is also used for characterization of MEMS sensors. It features very low motion distortion, built-in overload protection and cooling for improved performance, and can be operated with any signal generator or vibration controller.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …



Download datasheet

PA 500 DM

PA 500 DM

500 VA power amplifier

The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω).

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

SL01 Basic

SL01 Basic

Basic Service Level - Technical Support & Software Maintenance

With our Smart Managed Service Agreement, we offer different service levels and specific add-ons for increased efficiency and flexibility. The packages offer a wide range of benefits, including fast service, smooth processing, personal contact with our experts and price advantages.

The SL01 Basic ensures primary support, can be upgraded to the SL02 Extended and customized with add-ons.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …



Download Flyer

SL02 Extended

SL02 Extended

Extended Service Level - Technical Support & Software Maintenance

Our Smart Managed Service Agreements are tailored to provide top-tier assistance. The expert support as a service is designed with efficiency in mind, allowing you to flexibly design service packages and enhance them with add-ons as needed.

The SL02 Extended offers an advanced service such as free software updates, access to the ticket system and a free license to the SPEKTRA eLearning platform.



APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …



Download Flyer

Similar products

We are here for you!

Do you have any question about our products or need a quote? Do not hesitate to contact us!

We will be happy to advise you personally and without obligation.

Michael Mende
Product Manager
Sales

+49 (0) 351 400 24 0
