SQ-6

Electro-acoustic coupler

True pressure chamber calibration for measuring devices with ½" and ¼"microphone capsules. The SQ-6 from SPEKTRA is characterized by a high sound pressure level with low distortion over the entire frequency range. Its newly developed design is aimed at user-friendliness, efficiency and at the same time impressive performance with reliable results. All components for calibration are included in the scope of delivery.

APPLICATIONS

What are the SPEKTRA areas of application?
Learn more …

Download datasheet

Key Features

Features

for ½" and ¼" capsule devices
compact design
¼" photo thread compatible mounting for various DUT arrangements

rotary clamp closures ensure precise and efficient alignment and sealing of sensors
fully symmetric electro-acoustic topology ensuring a more uniform sound field

Applications

pressure chamber secondary calibration
microphones (IEC 61094-5)
sound level meters and sound level measuring chains (IEC 61672)
phase calibration of intensity probes

System integration

easy integration into system solution
suitable controller and software for efficient workflow

Product details

Technical data

	SQ-6
Sound field	Pressure chamber
Frequency range	10 Hz … 20 kHz
Max. electrical power of sound source	2.4 W
Distortion factor at 94 dB	< 0,3 % (THD)
Devices under test (DUTs)	½"- and 1/4" microphone capsules
Maximum sound pressure level ¹⁾	10 Hz … 20 kHz 114 dB 16 Hz …5 kHz 140 dB...148 dB
Dinensions (H × W × L)	60 mm × 60 mm × 42 mm

All specifications are at room temperature unless otherwise specified.
¹⁾Depending on frequency range, DUT type and amplifier

Scope of delivery

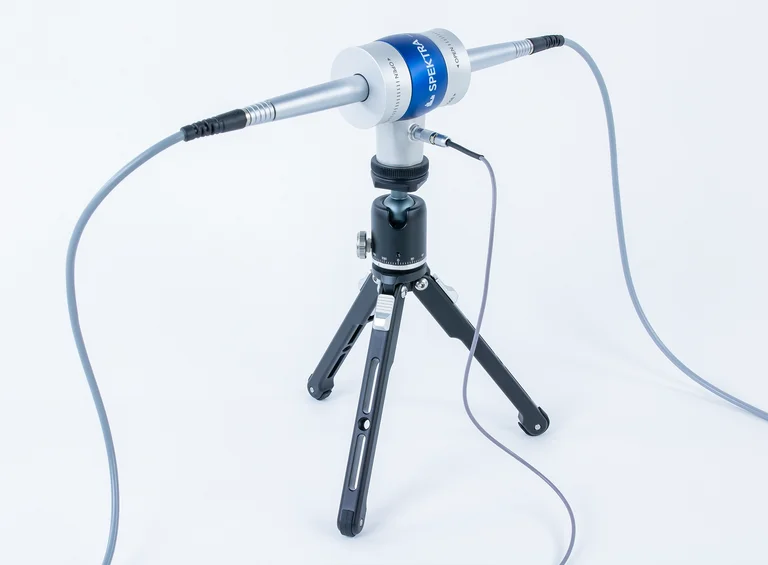

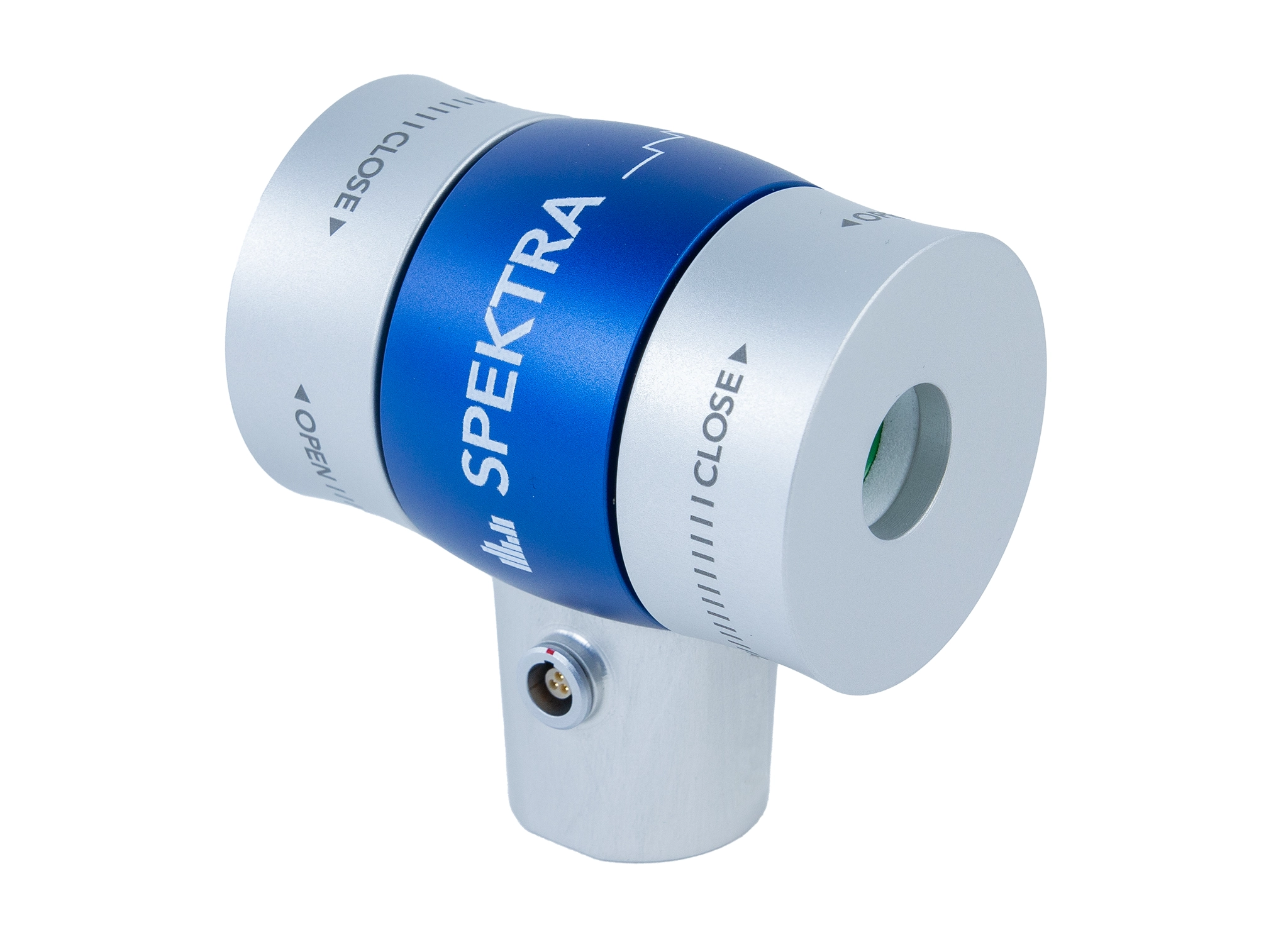

SQ-6 electro-acoustic coupler
power amplifier, including power supply
LS adapter (open grid for WS2P Microphone)
table tripod with 360° ball head, 3 working heights
system cables
O-rings and spacers for various ½“ and ¼" microphone capsules

Accessories (optional)

reference standards (recommended)
½” condenser microphone capsule type LS2P or WS2P with amplifier

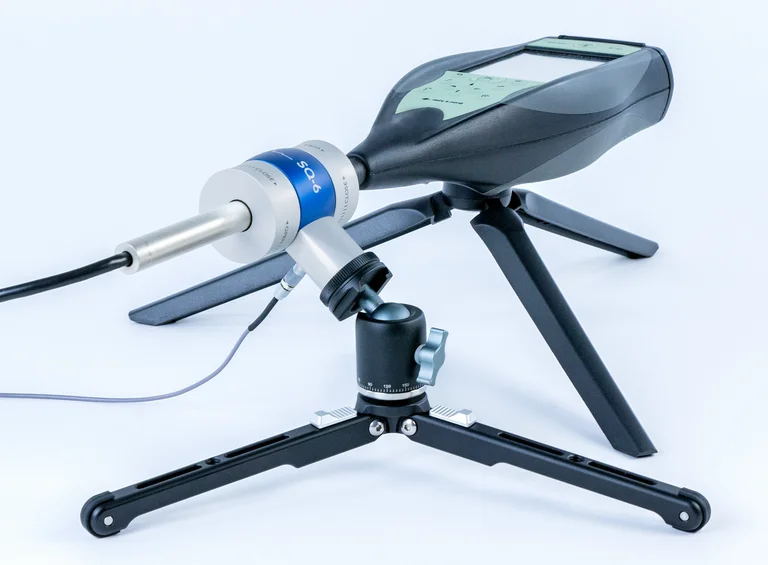

fixture for sound level meters or heavy microphones
spacer kit for intensity probes

_{For further details, please refer to the technical data sheet. Subject to change without notice.}
