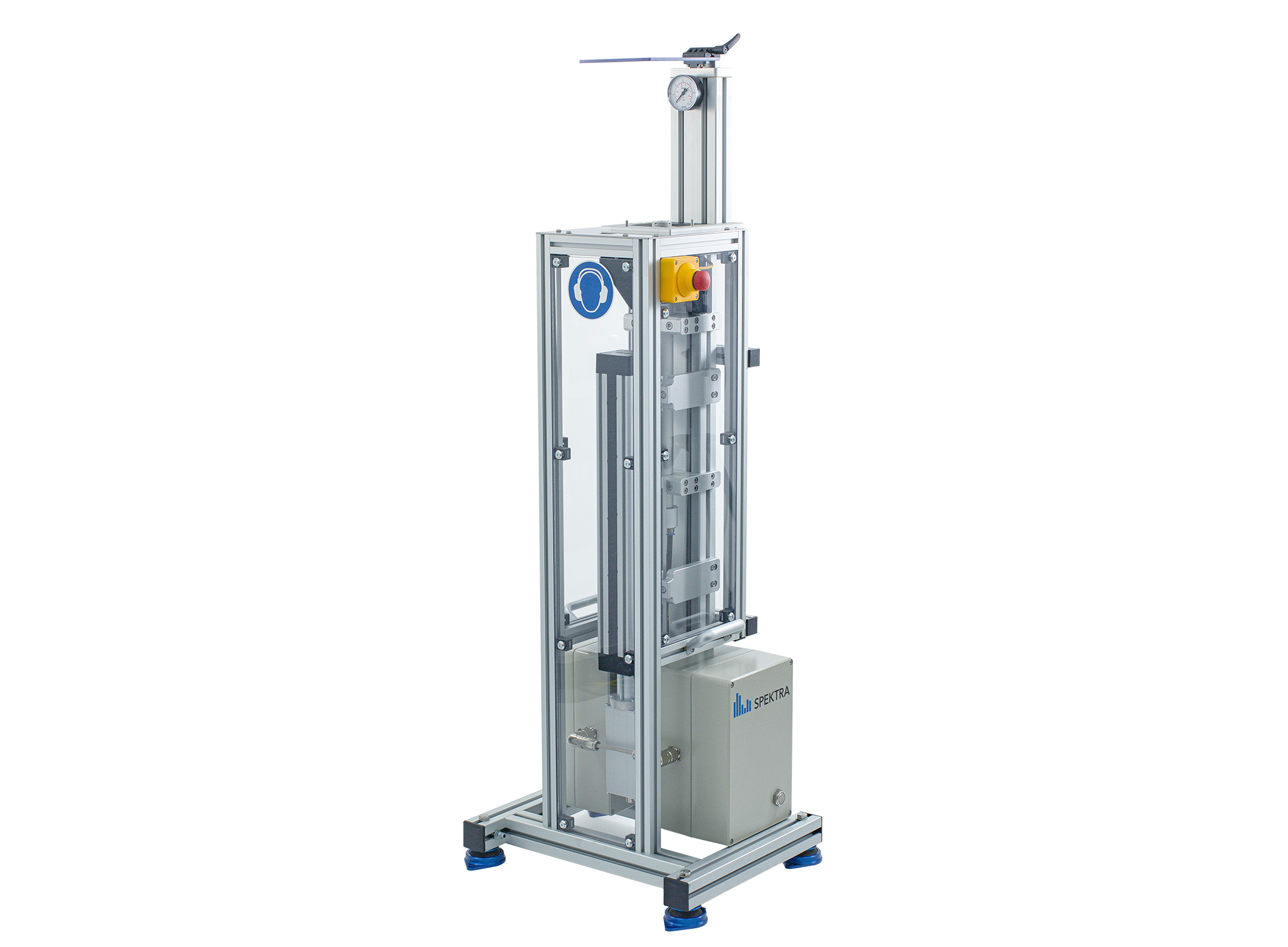

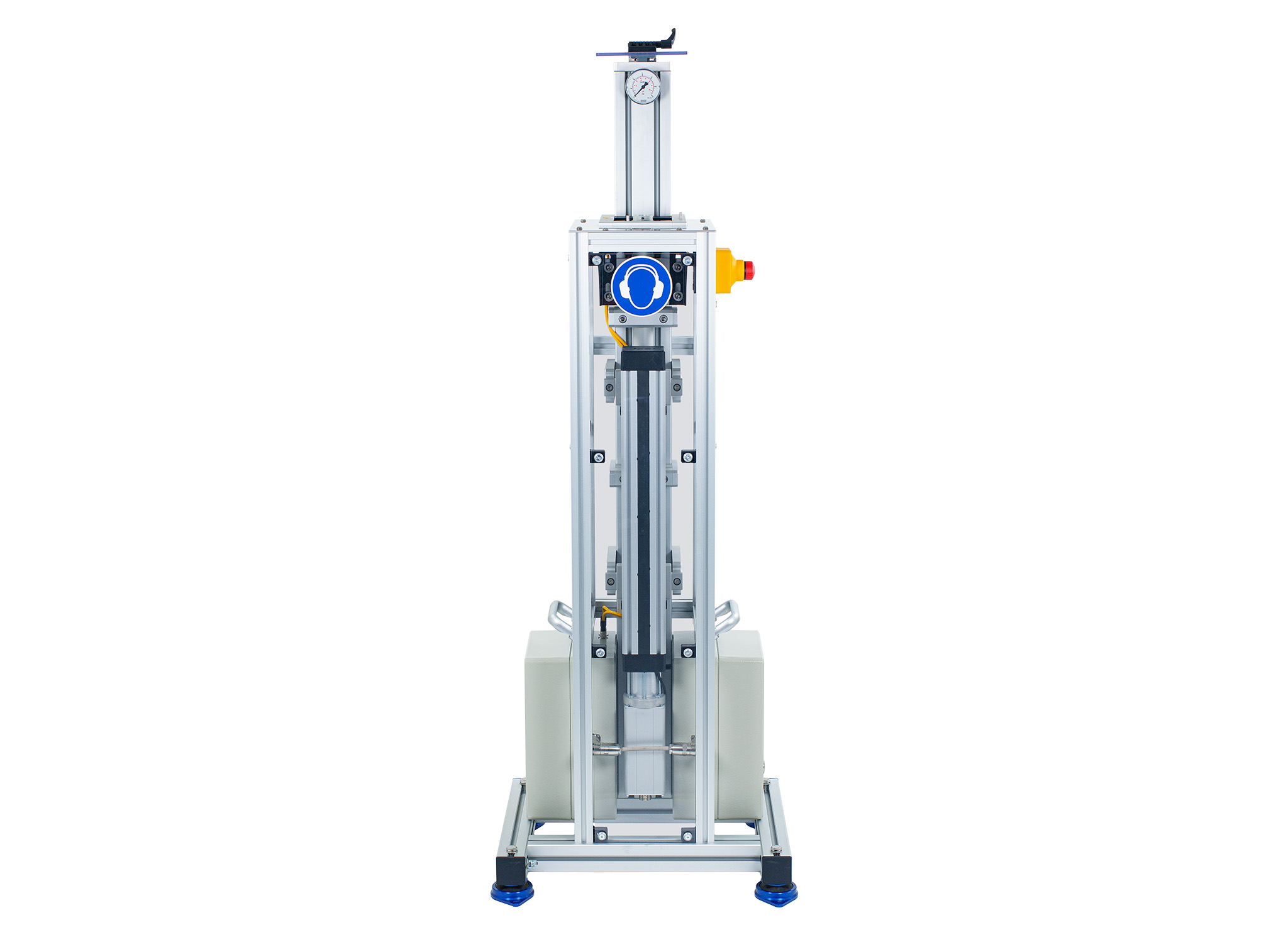

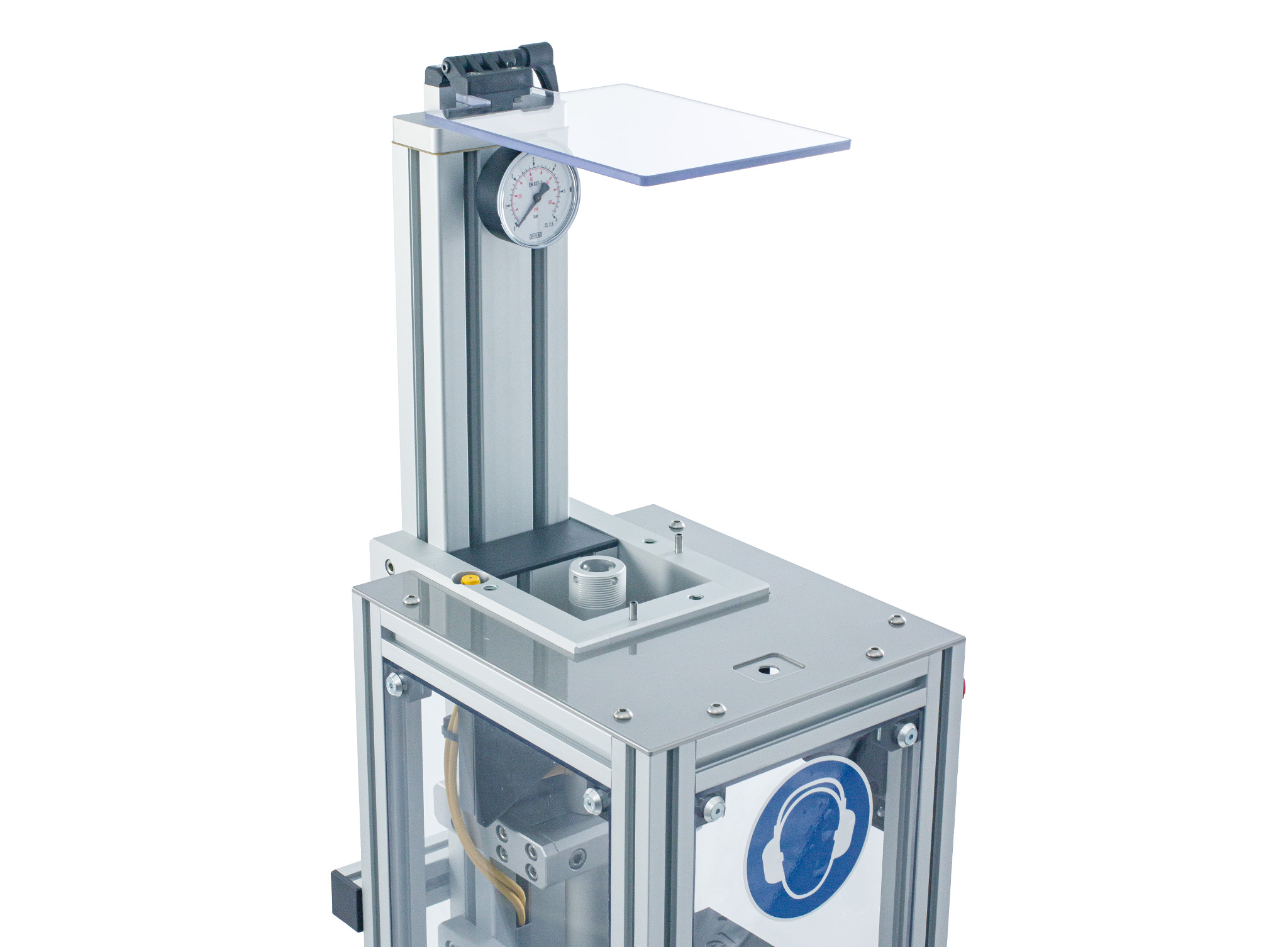

SE-201
Exciter for testing and calibration of shock transducers as well as complete measuring instruments (measuring chain).
The SE-201 features a large amplitude range (5 gn…10 000 gn) and is also suitable for fully automatic tests with very high quality and performance. Thereby the shocks, with a DUT mass up to 80 g, are very well reproducible. All mechanical components of the exciter are designed for high stability.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
Technical Data
- shock amplitudes: 5 gn…10 000 gn
- sensor mass (DUT), max.: 80 g
- position of DUT: vertical
- pulse duration (typically): 0.1 ms…5 ms
- required air pressure: 6 bar
Features
- excellent repeatability of shock
- type of excitation: half sine shock
- realization of all automatic calibrations according to own test regime (up to 1 shock/s)
- automated regulation of amplitudes up to 6 000 gn is possible
- low transverse motion of DUT
- pneumatically driven pulse generatorReference standard BN-02
- Shock Control Unit (SCU)
Applications
- Shock testing of small assemblies / parts
- Secondary calibration of shock transducers as well as complete measuring instruments (measuring chain) according to ISO 16063-22
- Secondary calibration of shock accelerometer reference standards
For further details, please refer to the technical data sheet. Subject to change without notice.
CS Q-LEAP™ P-SHOCK with SE-201
It enables primary and secondarycalibration of shock-sensors as well as complete measuring instruments with very high precision and efficiency, according to ISO 16063 - 13, ISO 16063-22 and ISO 17025.
The CS Q-LEAP™ system is based on the HERO™ vibration controller and the SE-201 shock exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
CS Q-LEAP™ SHOCK with SE-201
It enables secondary calibration of shock-sensors as well as complete measuring instruments with very high precision and efficiency, according to ISO 16063-22 and ISO 17025.
This system is based on the HERO™ vibration controller and the SE-201 shock exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

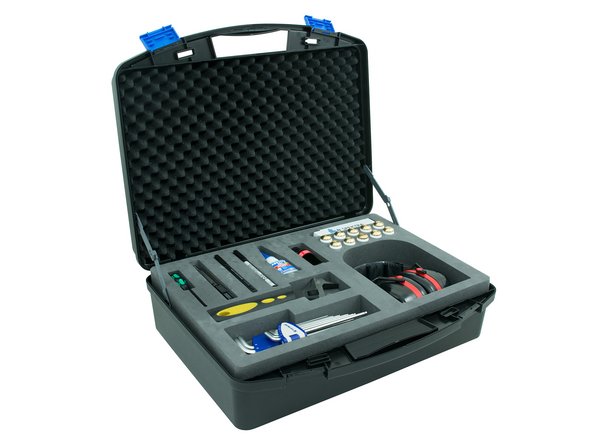

Accessories Case High Shock
Set with special accessories for calibration work with the HOP-HS shock exciter (High Shock).
The case includes suitable tools, adapters, auxiliary materials and protective utensils for a careful and effective calibration of shock sensors in the laboratory.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
