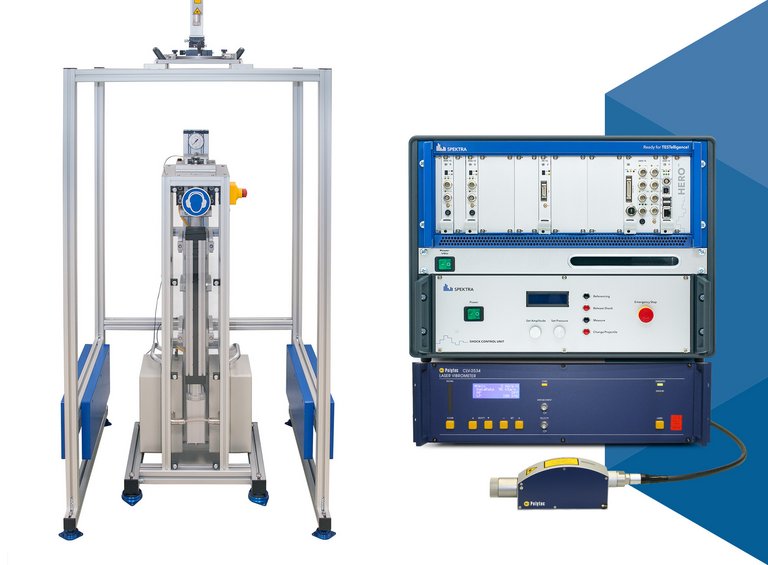

CS Q-LEAP™ P-SHOCK with SE-201
It enables primary and secondarycalibration of shock-sensors as well as complete measuring instruments with very high precision and efficiency, according to ISO 16063 - 13, ISO 16063-22 and ISO 17025.
The CS Q-LEAP™ system is based on the HERO™ vibration controller and the SE-201 shock exciter.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
Key features
- Broad amplitude range: 5 gn...10 000 gn (49 m/s²…98 km/s²)
- Traceable to PTB (German National Metrology Laboratory)
- Primary calibration of shock sensors
- Integrated sensor database
- Integrated e-Cal™ software for the generation of calibration certificates (print, PDF...)
- Easy data exchange with applications like ERP systems or measuring equipment databases
Technical Data
- Broad amplitude range: 5 gn...10 000 gn (49 m/s²…98 km/s²)
- Pulse width: 0.1 ms...5 ms
- Automated regulation of amplitudes: up to 600 gn (6 km/s²)
- Max. payload: 80 g (2.82 oz)
CS Q-LEAP™ software
- shock calibration
- vibration measurement
- vibration generation
- more on demand
Typical DUTs
- vibration/shock sensors
· PE transducers
· IEPE transducers
· PR transducers
· Digital transducers (SPI, I2C, DTI and other interfaces) - supports TEDS / ID modules according to IEEE 1451.4
Standards
- ISO 16063 - 13: Primary shock calibration using laser interferometry
- ISO 16063 - 22: Calibration of vibration transducers by comparison to a reference transducer
- ISO 17025: General requirements for the competence of testing and calibration laboratories
For further details, please refer to the technical data sheet. Subject to change without notice.

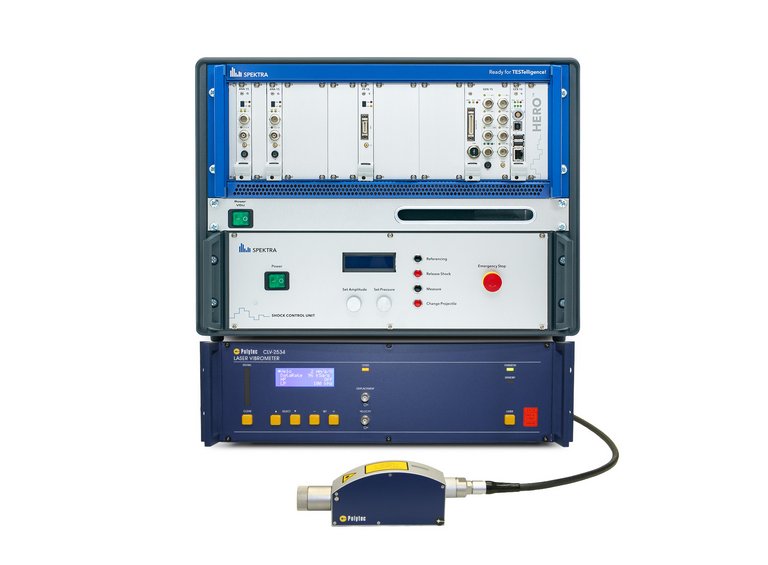

HERO™
HERO™ is the heart of the CS Q-LEAP™ calibration systems.
It offers a variety of output options, interfaces for data import and export, and enables powerful digital as well as analog signal processing. The HERO™ can be flexibly configured with many different modules.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

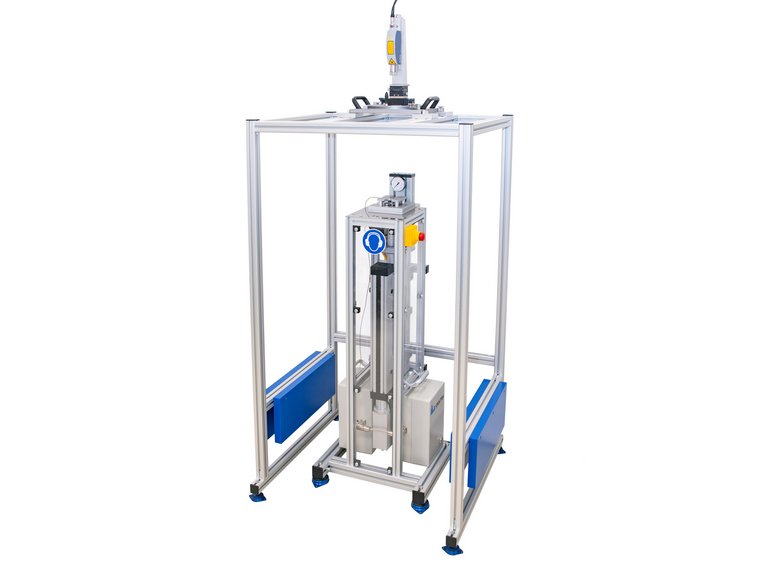

SE-201
Exciter for testing and calibration of shock transducers as well as complete measuring instruments (measuring chain).
The SE-201 features a large amplitude range (5 gn…10 000 gn) and is also suitable for fully automatic tests with very high quality and performance. Thereby the shocks, with a DUT mass up to 80 g, are very well reproducible. All mechanical components of the exciter are designed for high stability.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Accessories Case High Shock
Set with special accessories for calibration work with the HOP-HS shock exciter (High Shock).
The case includes suitable tools, adapters, auxiliary materials and protective utensils for a careful and effective calibration of shock sensors in the laboratory.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL01 Basic
With our Smart Managed Service Agreement, we offer different service levels and specific add-ons for increased efficiency and flexibility. The packages offer a wide range of benefits, including fast service, smooth processing, personal contact with our experts and price advantages.
The SL01 Basic ensures primary support, can be upgraded to the SL02 Extended and customized with add-ons.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
SL02 Extended
Our Smart Managed Service Agreements are tailored to provide top-tier assistance. The expert support as a service is designed with efficiency in mind, allowing you to flexibly design service packages and enhance them with add-ons as needed.
The SL02 Extended offers an advanced service such as free software updates, access to the ticket system and a free license to the SPEKTRA eLearning platform.
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Similar products
CS Q-LEAP™ SHOCK with SE-221
Secondary calibration of shock sensors as well as complete measuring instruments with very high precision and efficiency up to 100 000 gn.
according to ISO 16063-22 and ISO 17025
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …

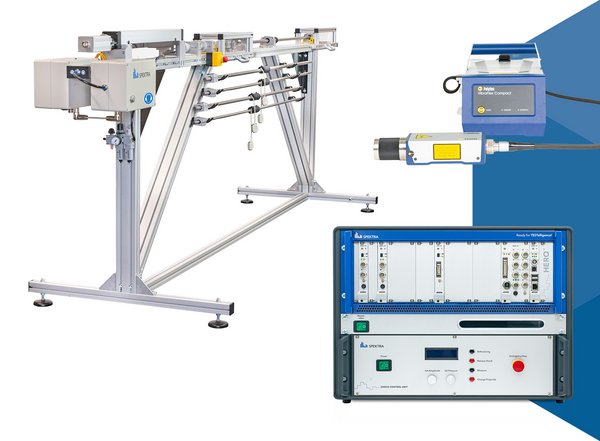

CS Q-LEAP™ P-SHOCK with SE-221
