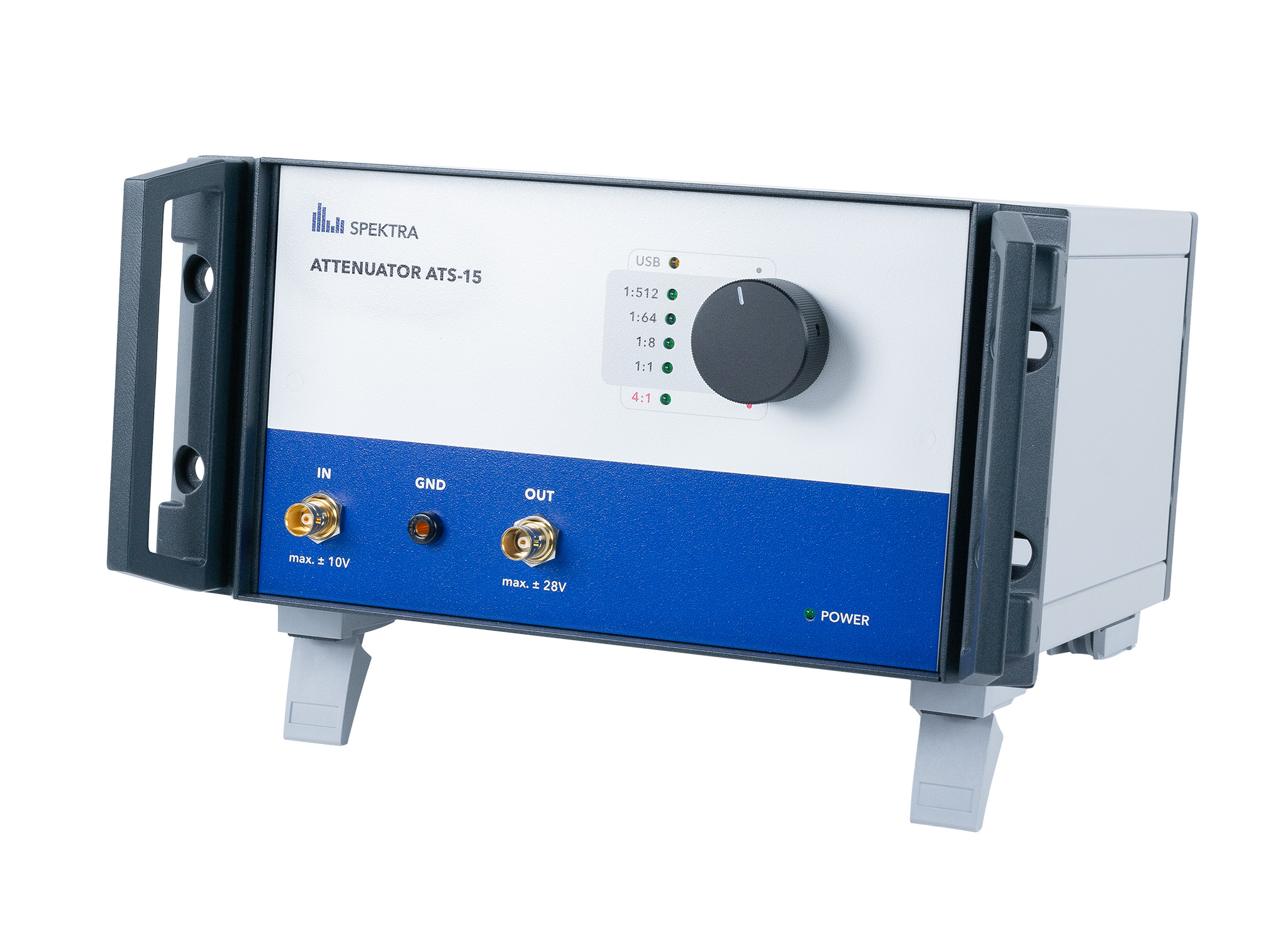

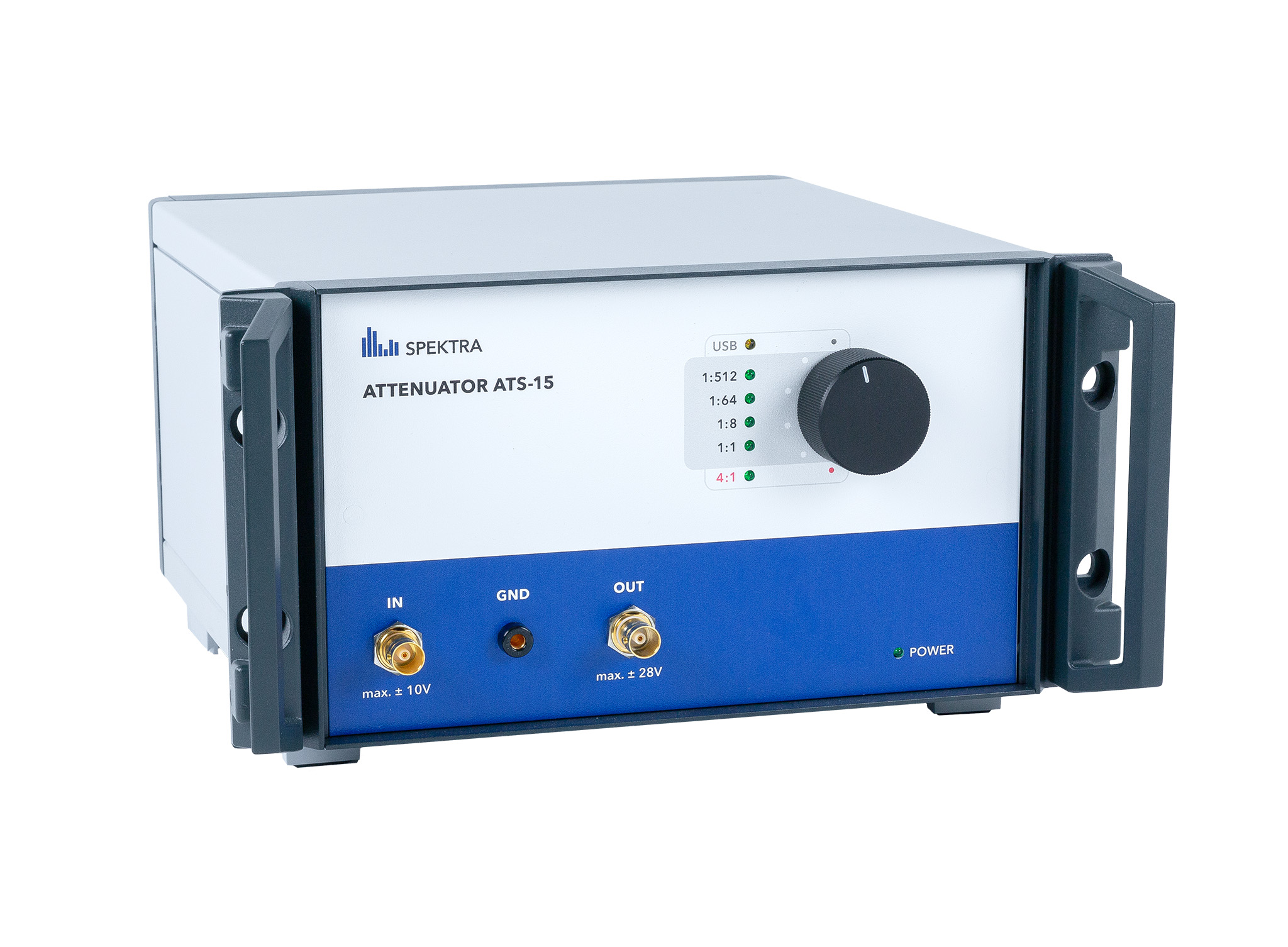

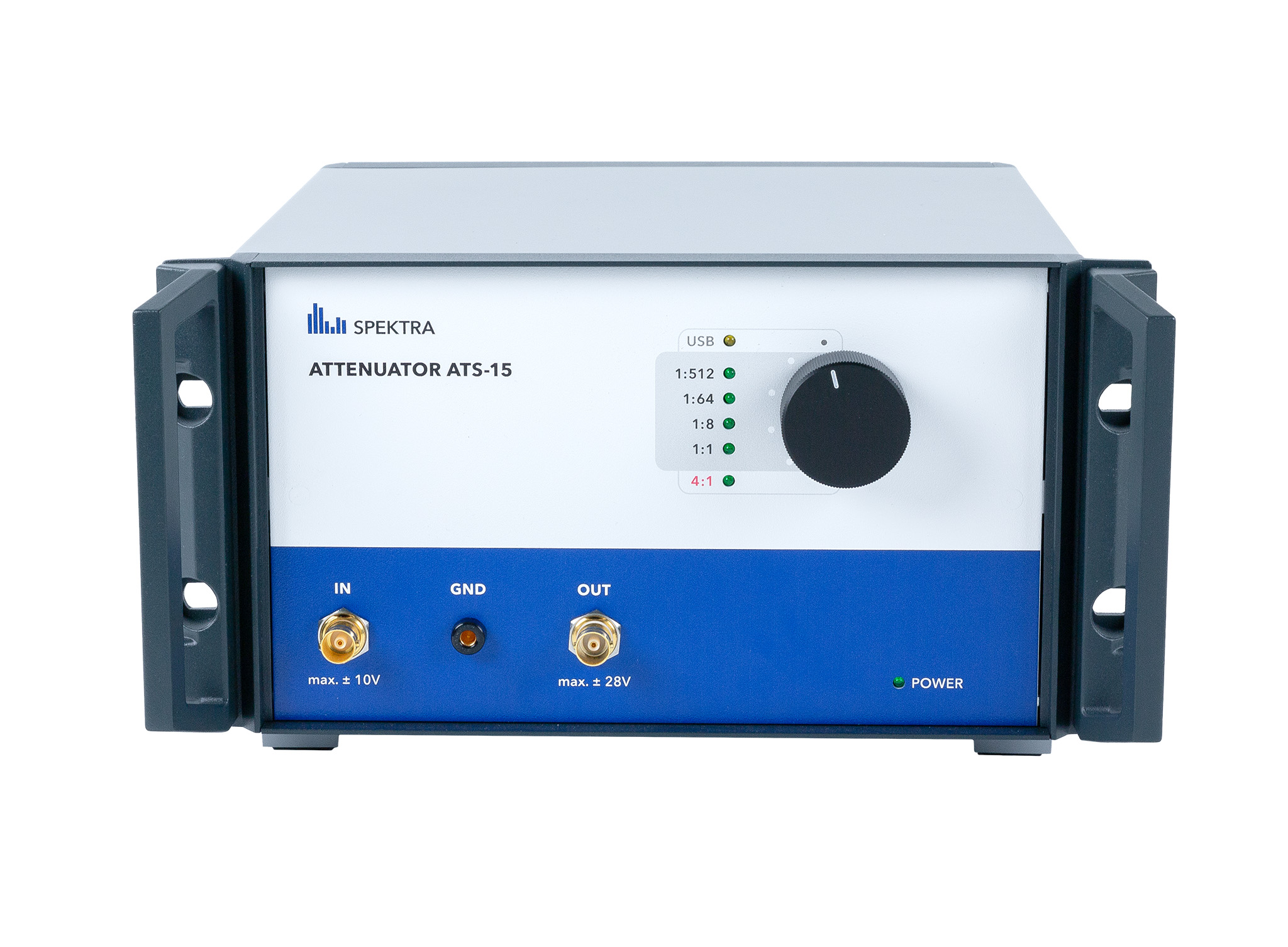

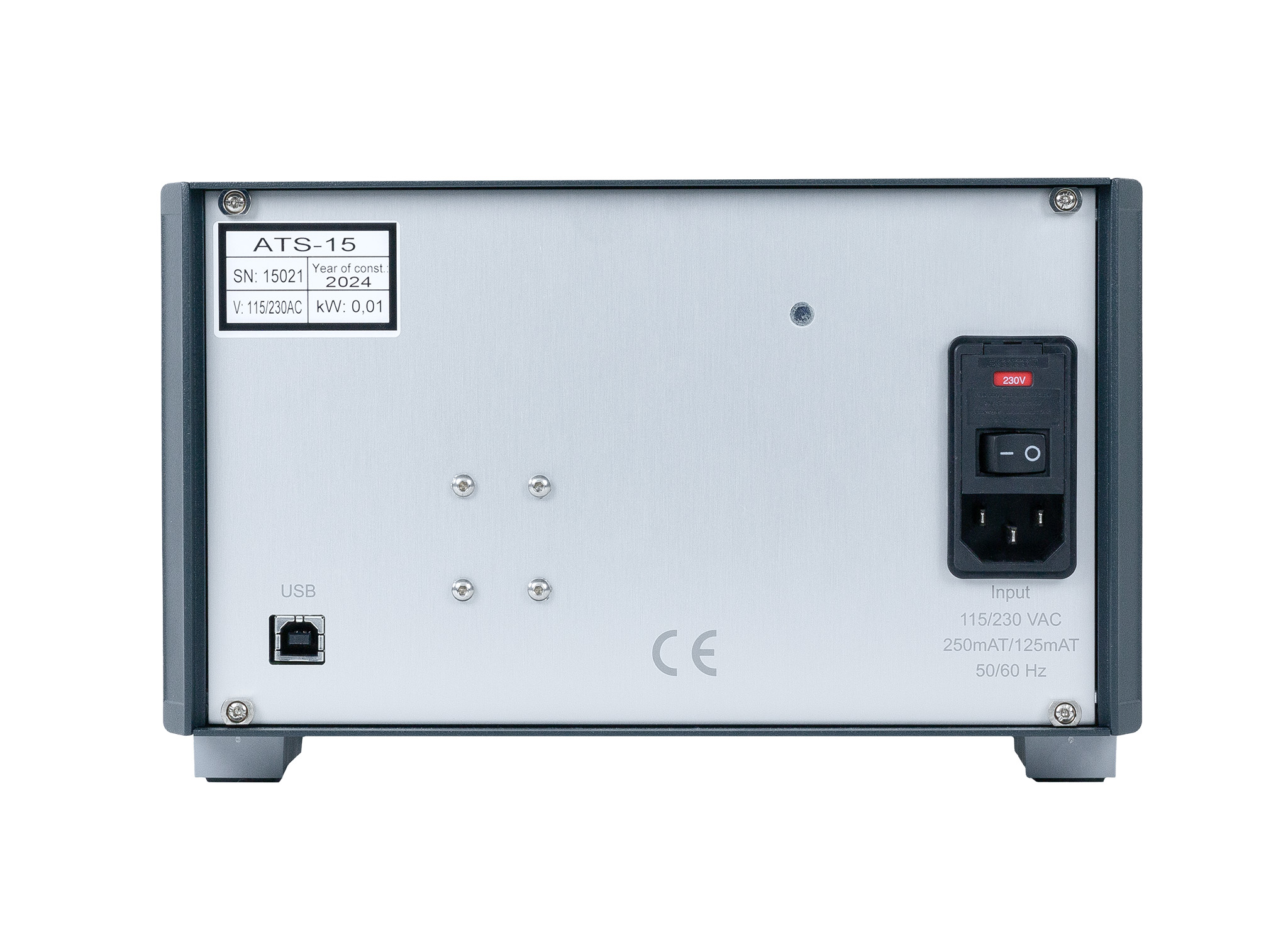

ATS-15
Part of electrical final test and calibration bench for high-precision provision of smallest voltages.
Typical users are DAkkS calibration laboratories or National Metrology Institutes (NMI).
APPLICATIONS
What are the SPEKTRA areas of application?
Learn more …
Product details
- division ratio: 1:1, 1:8, 1:64, 1:512
frequency range: 0 Hz...100 kHz
accuracy up to 0.015 % - amplifier: 4:1
frequency range: 0 Hz...20 kHz
accuracy up to 0.01 % - operating voltage: 230 VAC / 115 VAC
- power consumption: 10 W
- working temperature: 23°C (± 2 K)
- output resistance: ≤120 mΩ
- remote and manual control
For further details, please refer to the technical data sheet. Subject to change without notice.
