Portable vibration calibrator CV-01

Quick. Easy. Portable.
Testing and calibration of vibration measurement systems.

The CV-01 features a large coupling area for sensors under test, a rugged housing as well as extensive  accessory. The well balanced reaction mass leads to a good mass ratio to the weight of the DUT whereby up to 150 g heavy transducers can be reliably tested. Furthermore, each device is calibrated by SPEKTRA before its delivery and gets an internationally recognized DAkkS calibration certificate.

  • In-field calibration of vibration transducers
  • Inspection of sensor wirings of machines for vibration tests
  • Troubleshooting on vibration measurement chains of machines



TESTelligence to go!

"Clever testing" implemented in a portable, high-quality measurement device allows a wide range of applications. The voltage supply is provided by four Mignon (AA) batteries, which makes you independent of any local power source. Thanks to its compact dimensions and light weight, the CV-01 can be taken and operated everywhere. Choose between 60-seconds mode or continuous operation and enjoy the user-friendliness of the SPEKTRA products!

CV-01 Product page

Establishing connection

The quick and easy mounting of the sensor ensures an efficient testing setup for a wide range of devices. One of the included standard adapters can be mounted and screwed to the 16 mm large coupling area. We also offer various cable adapters as well as customized adhesive mounting studs and adapters on request.

To the products

All in one place

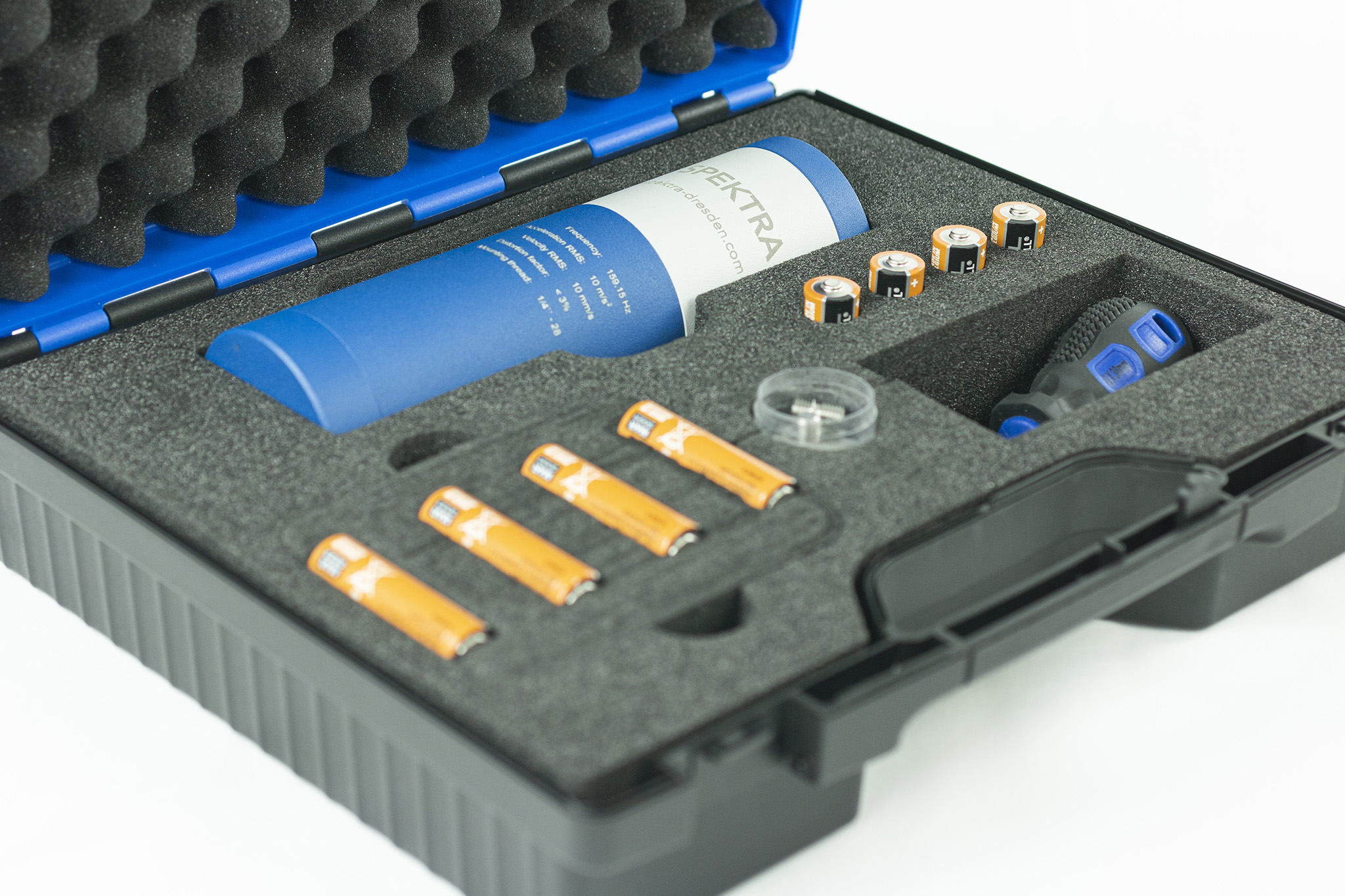

The vibration calibrator as well as its accessories are delivered in a rugged case to ensure safe transportation. Everything you need for your daily testing tasks, in one place:

  • Handheld shaker CV-01
  • Screwdriver
  • 8 AA batteries
  • Mounting stud ¼”-28 to ¼”-28
  • Mounting stud ¼”-28 to 10-32
  • Adhesive mounting base ¼”-28 to Hex ¾”

Key features

  • Frequency: 159,15 Hz ±0,02%
  • Acceleration: 10 m/s² ±2%
  • Velocity: 10 mm/s ±2%
  • Displacement: 14 μm ±2%
  • Temperature range: -10 °C...+55 °C
  • Max. Payload: 150 g
  • Coupling area: ∅ 16 mm
  • Length: 180 mm
  • Diameter: 58 mm
  • Calibrator weight: 950 g
  • Transport case: 240 mm x 280 mm x 105 mm (LxWxH)
  • Mounting thread: 1/4“-28 UNF

Download datasheet
