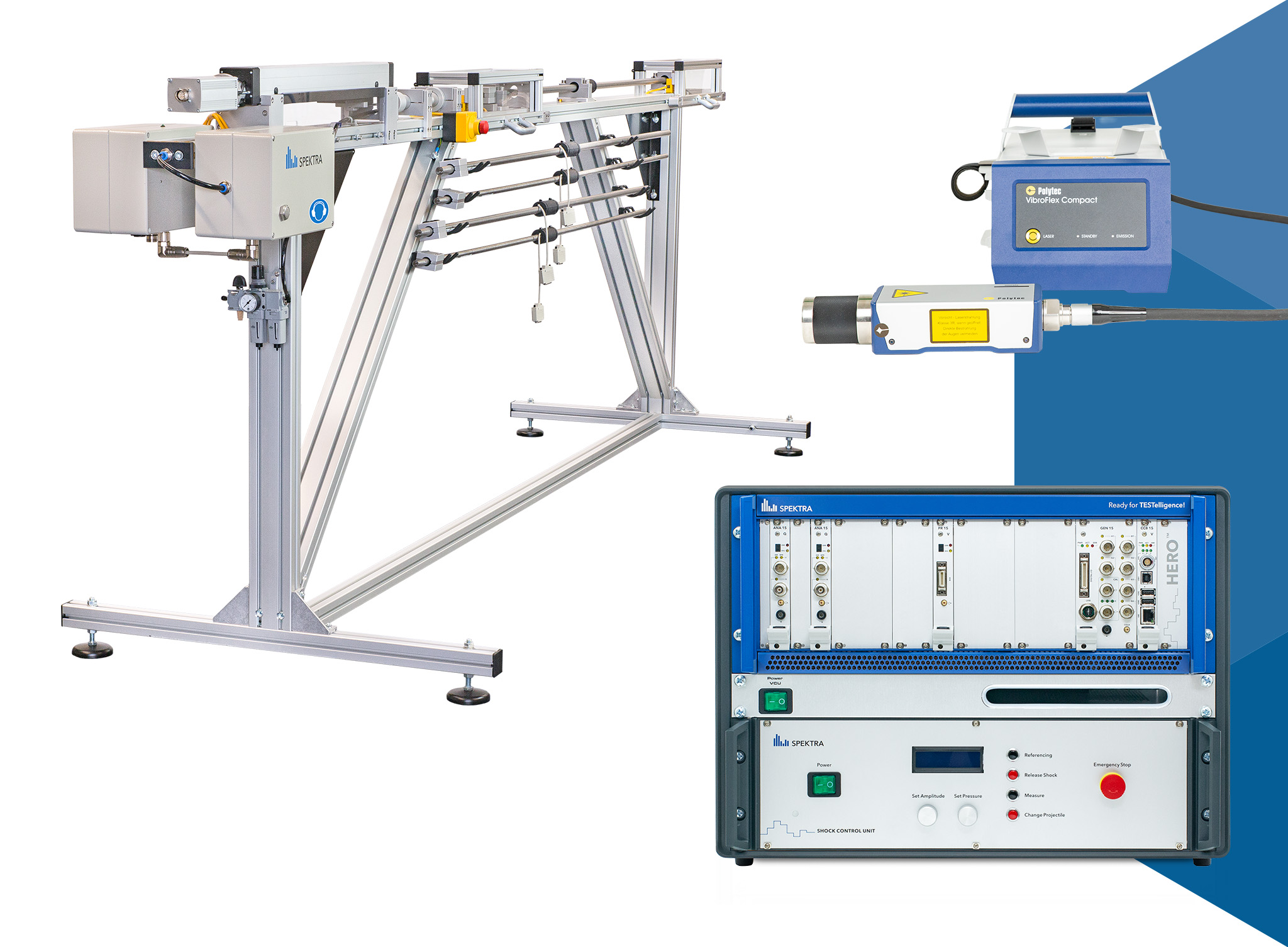

The CS Q-LEAP™ system with the SE-221 shock exciter enables primary calibration of shock sensors as well as complete measuring instruments up to 200 000 gn. With very high precision and efficiency, according to the standards of ISO 16063-13 and ISO 17025.

Downloads:

Key features

  • Shock amplitudes up to 200 000 gn (1961 km/s²)
  • Primary and secondary calibration of shock sensors
  • Fly-Away operation mode
  • System including HERO™ data acquisition device with signal conditioner, Shock Control Unit, SE-221 shock exciter, laser vibrometer (digital), and all accessories
  • Traceable to national standards of PTB (Physikalisch Technische Bundesanstalt) or via ILAC-MRA to other national metrology institutes
  • Integrated sensor database and e-Cal™ software for the generation of calibration certificates (print, PDF...)

Technical Data

  • Broad amplitude range: 1000 gn...200 000 gn (9.8 km/s²... 1961 km/s²)
  • Pulse width, typical: 23 μs...19 μs up to 100 000 gn or 21 μs...17 μs up to 200 000 gn
  • Max. payload: 15 g (0.53 oz) or 30 g (1.06 oz)
  • wider impulses with mitigator option
  • Reference standard: Laser vibrometer for primary calibration or strain gauges (secondary calibration)
  • Different titanium bars for different DUTs

CS Q-LEAP™ software

  • shock calibration
  • generation of calibration certificates
  • easy data export
  • and much more ...

Typical DUTs

  • Piezoelectric accelerometers with charge output
  • IEPE piezoelectric accelerometers
  • PR transducer
  • digital transducers with DTI, SPI, I2C and many other interfaces

Standards

  • ISO 16063-13: Primary shock calibration using laser interferometry
  • ISO 17025: General requirements for the competence of testing and calibration laboratories

For further details, please refer to the technical data sheet. Subject to change without notice.
